62
6LQJOH=RQH+LJK(I¿FLHQF\6WDQGDUG([WHQGHG3LSHDQG0HJD:DOO0RXQW,QVWDOODWLRQ0DQXDO
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Terminal Block Connection for
091HSV3, 121HSV3
See Figure 102 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU091HSV3
LSU121HSV3
Outdoor Unit Electrical Connections
Terminal Block Connection for HV3
See Figure 101 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU307HV3
LSU360HV3
Outdoor Unit
Terminal Block
Over 0.2”
Conduit Panel
Connection/Communication
Cable (Leading to Indoor Unit)
Power Cord
Conduit Panel Cover
1(L1) 2(L2) 1(L1) 2(L2)
3

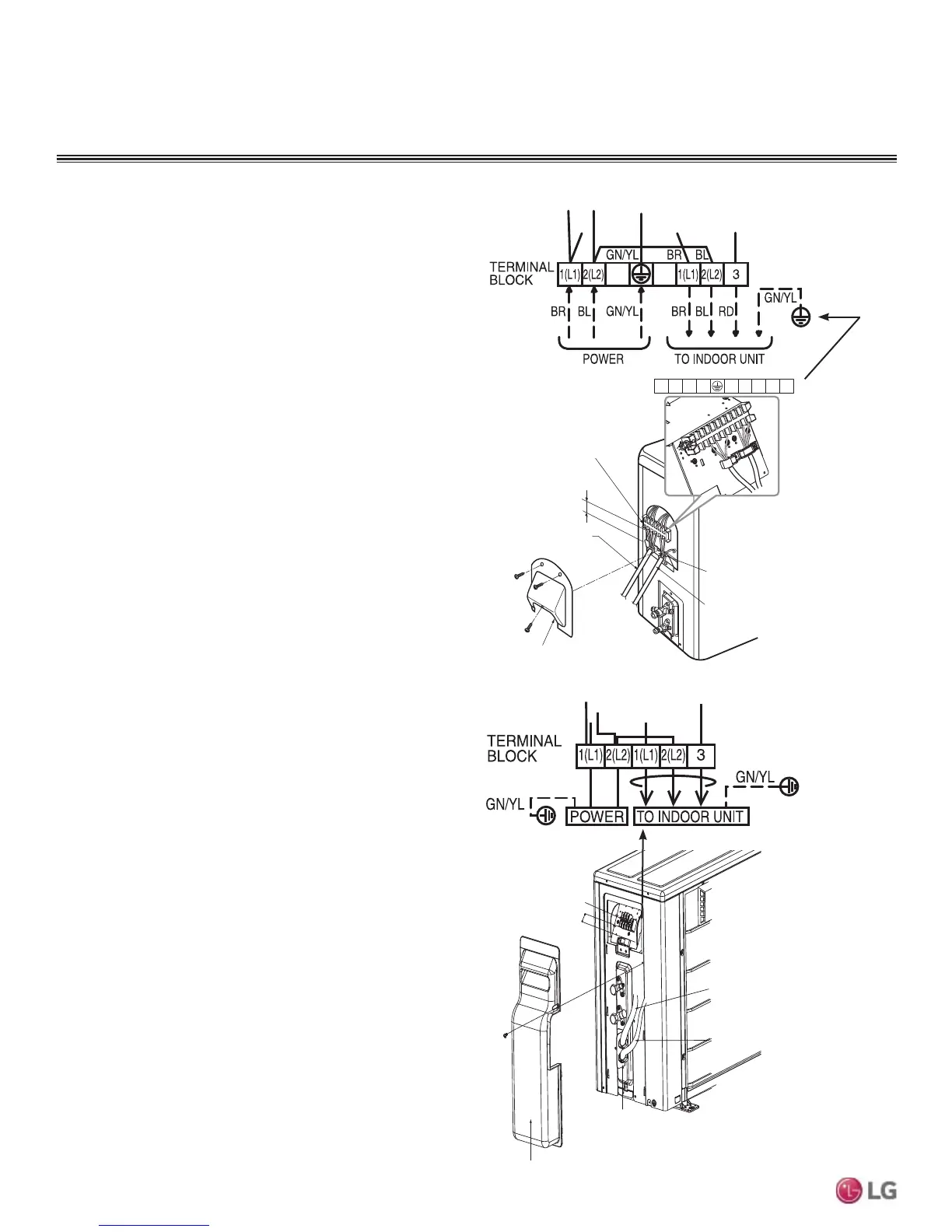

Figure 101: HV3 and 181HSV3, 240HSV3 Outdoor Unit - Electrical
Connections
Figure 102: 091HSV3, 121HSV3 Outdoor Unit - Electrical Connections
Terminal Block Connections for
181HSV3 and 240HSV3
See Figure 101 for 181HSV3 and 240HSV3 Single Zone termi-
nal block connections. The connections are identical to the HV3
outdoor units.
Terminal Block
Connection/Communication
Cable (Leading to Indoor Unit)
Power Cord
Conduit Panel
Tubing Cover
Over 0.2"
To Next Page
