General Installation Guidelines
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
GENERAL INSTALLATION GUIDELINES

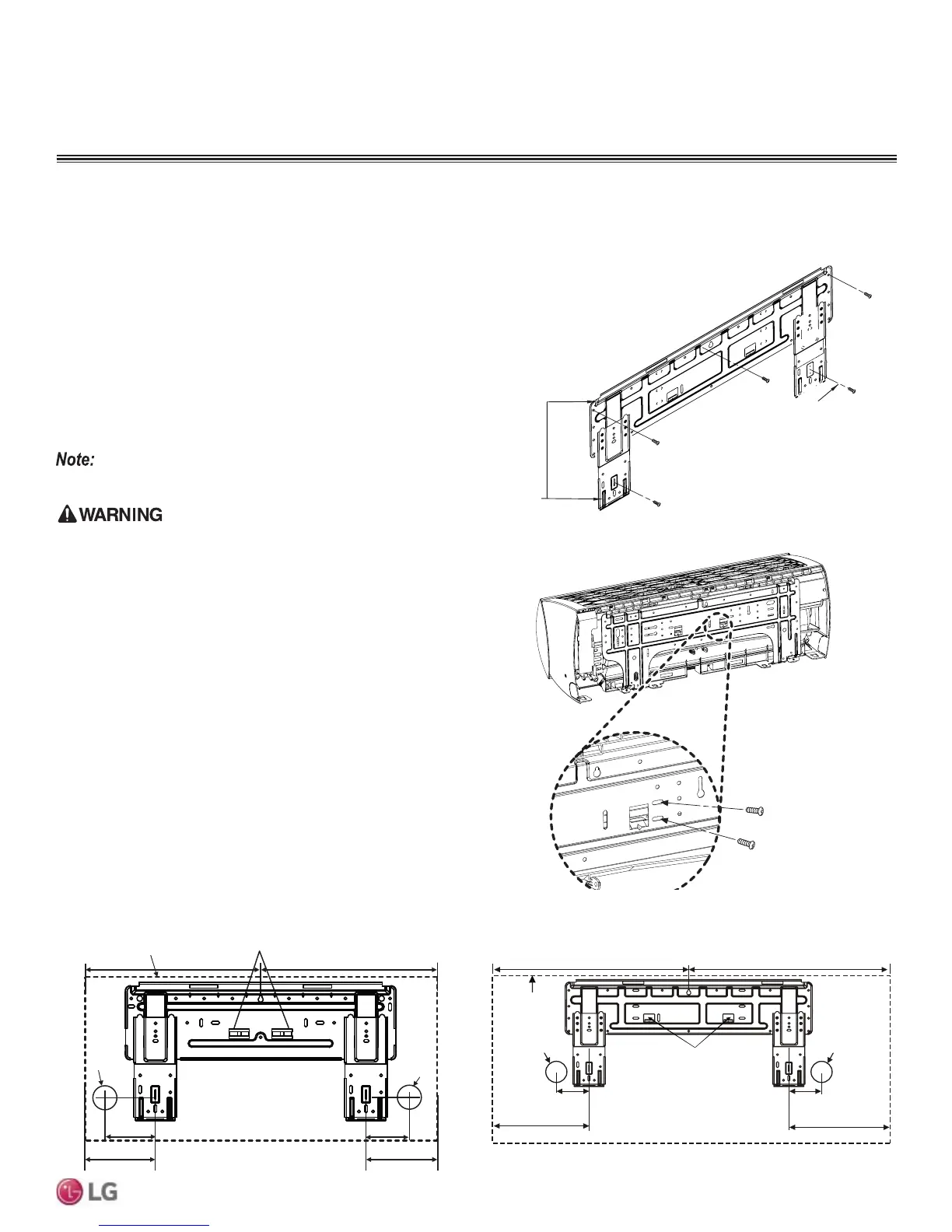

Mounting of Indoor Unit Installation Plate
Mounting Installation Plate to Wall (Mega 090HEV, 090HEV1, 120HEV,
120HEV1)
A-Type
B-Type
Figure 17: Installation Plate Screws Type A, Type B - 120HEV,
120HEV1
1. Confirm the position of screws between chassis and installation
plate (Figure 16 and Figure 17).
2. Mount the installation plate horizontally by aligning the centerline
using a leveling tool (Figure 18 and Figure 19).
3. Use provided screws when mounting the plating.
• If mounting the unit on concrete wall, use field supplied anchor
bolts.
4. Observe the left and right rear piping clearance when drilling
into the wall as shown in Figure 18 (090HEV) and Figure 19
(120HEV).
Installation Plate
Chassis
Hook
Type “A”
Ø2-
19/32
5-23/32
2-30/32
Right rear piping
Left rear piping
Installation Plate
Place a level on raised tab
Unit Outline
7-
18/32
7-
18/32
Unit: inch
14-
28/32 14-28/32
Ø2-
19/32
Installation Plate
Figure 16: Installation Plate Screw Type A - 090HEV, 090HEV1,
120HEV, 120HEV1
Figure 18: Installation Plate - 090HEV and 090HEV1
Figure 19: Installation Plate - 120HEV and 120HEV1
Ø2
-19/32
Right Rear
Piping
Left Rear
Piping
Installation Plate
Place a level on raised tab
Unit: Inch
9
-21/32
7
5-
11/32
16-
8/32
18-29/32
Unit Outline
Ø2
-19/32
4-
27/32
Refer to “Drilling Piping Hole in the Wall” on page 22 as
you follow procedure to install plate.
Select location carefully. Unit should be anchored to a strong wall to pre-
vent unnecessary vibration.
• When choosing a location for the wall mount plate, be sure to take
into consideration routing of wiring for power outlets within the wall.
Contacting wiring can cause serious bodily injury, or death.
• Use caution when drilling holes through the walls for the purposes
of piping connections. Power wiring can cause serious bodily injury,
or death.
