ELECTRICAL WIRING

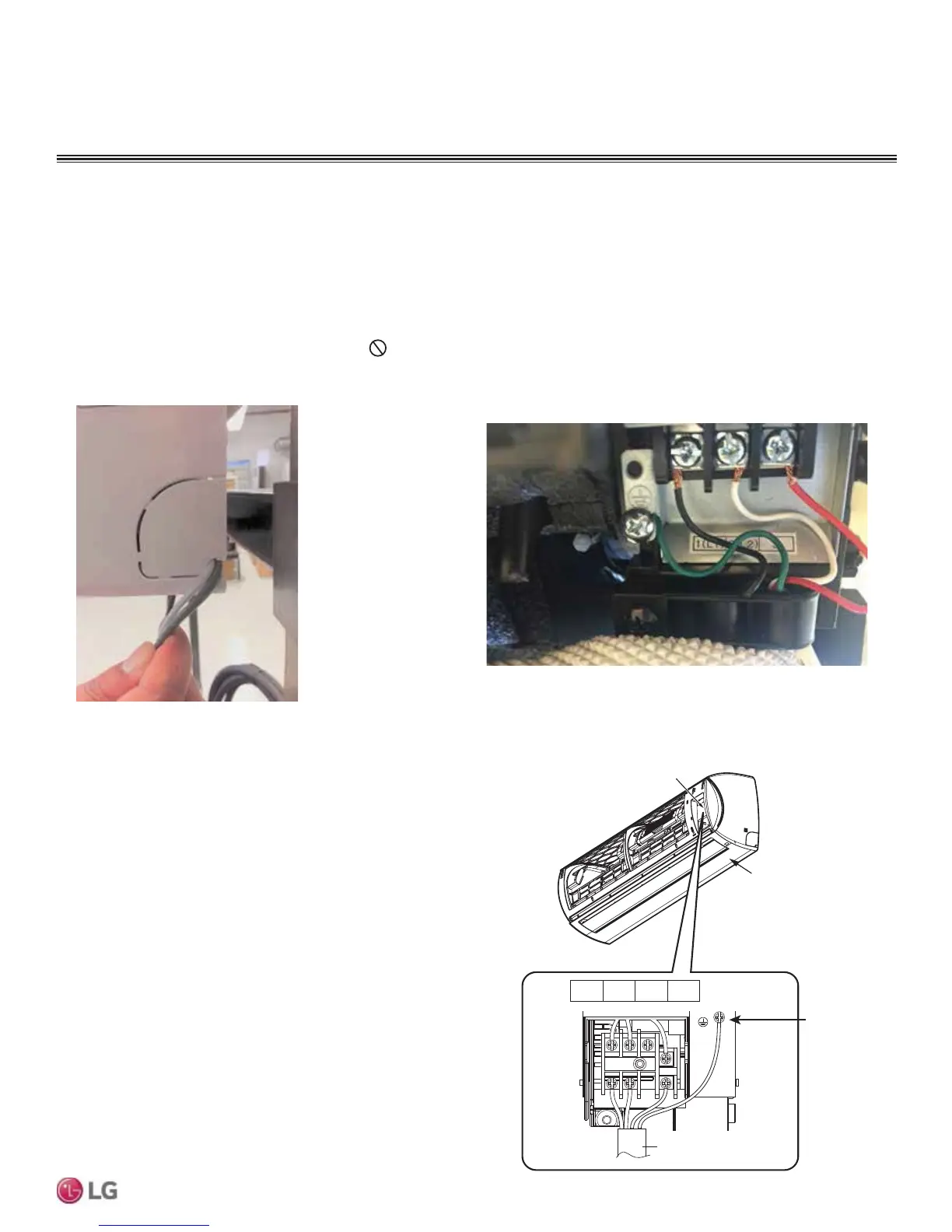

Figure 90: Indoor Unit Knockout (Communication Wires)

Figure 91: Indoor Unit Terminal Block with Grounding Cable

(Example Only)

Indoor Unit Electrical Connections

Connecting Indoor Unit Electrical Wiring - Continued

5. When done, reattach the bottom panel to the indoor unit, being careful to align panel using the rear tabs.

• You might need to give the panel a gentle tap with the palm of your hand to be sure it engages at the bottom.

6. Using a phillips screwdriver, reattach the screws to the bottom panel and secure.

7. Once screws are in place, re-snap the latches over the screws.

• Refer back to Figure 87 as an example.

8. If all other piping and electrical wiring to the outside unit has been completed at this stage, you can turn the system on to test.

• If you have not completed the piping connections,

do not turn power on at this time and proceed to complete all other piping, (along

with drain hose) and wiring to the system.

Terminal Block Connection for HLV

See Figure 92 for specific terminal block wiring for all following

Single Zone models:

LSN240HLV

LSN300HLV

LSN360HLV

Control Cover

Bottom Panel

Electrical Wiring

Knockout

Indoor Unit

1(L1)

2(L2)

1(L ) 2 (N)

Power Connection Cable

Grounding Cable

Figure 92: HLV Indoor Units - Terminal Block Connections
