Single Zone High Efciency, Standard, Extended Pipe and Mega Wall Mount Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

See table below for precalculated anticipated expansion for various pipe sizes and lengths of refrigerant tubing.

To find the anticipated expansion value:

1. From the table below, find the row corresponding with the actual feet of the straight pipe segment.

2. Estimate the minimum and maximum temperature of the pipe.

3. In the column showing the minimum pipe temperature, look up the anticipated expansion distance corresponding to the segment length.

Do the same for the maximum pipe temperature.

4. Calculate the difference in the two expansion distance values. The result will be the change in pipe length.

Pipe

Length

Fluid Temperature °F

35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° 95° 100° 105° 110° 115° 120° 125° 130°

0.04 0.04 0.05 0.06 0.06 0.07 0.08 0.08 0.09 0.09 0.10 0.10 0.11 0.11 0.11 0.12 0.13 0.14 0.15 0.15

0.08 0.08 0.10 0.12 0.13 0.14 0.15 0.16 0.17 0.18 0.19 0.20 0.21 0.22 0.22 0.23 0.26 0.28 0.29 0.30

0.12 0.12 0.15 0.18 0.20 0.21 0.23 0.24 0.26 0.27 0.29 0.30 0.32 0.33 0.32 0.35 0.39 0.42 0.44 0.45

0.16 0.16 0.20 0.24 0.26 0.28 0.30 0.32 0.34 0.36 0.38 0.40 0.42 0.44 0.43 0.46 0.52 0.56 0.58 0.60

0.20 0.20 0.25 0.30 0.33 0.35 0.38 0.40 0.43 0.45 0.48 0.50 0.53 0.55 0.54 0.58 0.65 0.70 0.73 0.75

0.24 0.24 0.30 0.36 0.39 0.42 0.45 0.48 0.51 0.54 0.57 0.60 0.63 0.66 0.65 0.69 0.78 0.84 0.87 0.90

Table 17: Linear Thermal Expansion of Copper Tubing in Inches

Pipe length baseline temperature = 0°F. "Expansion of Carbon, Copper and Stainless Steel Pipe," The Engineers' Toolbox, www.engineeringtoolbox.com.

Piping Materials and Handling

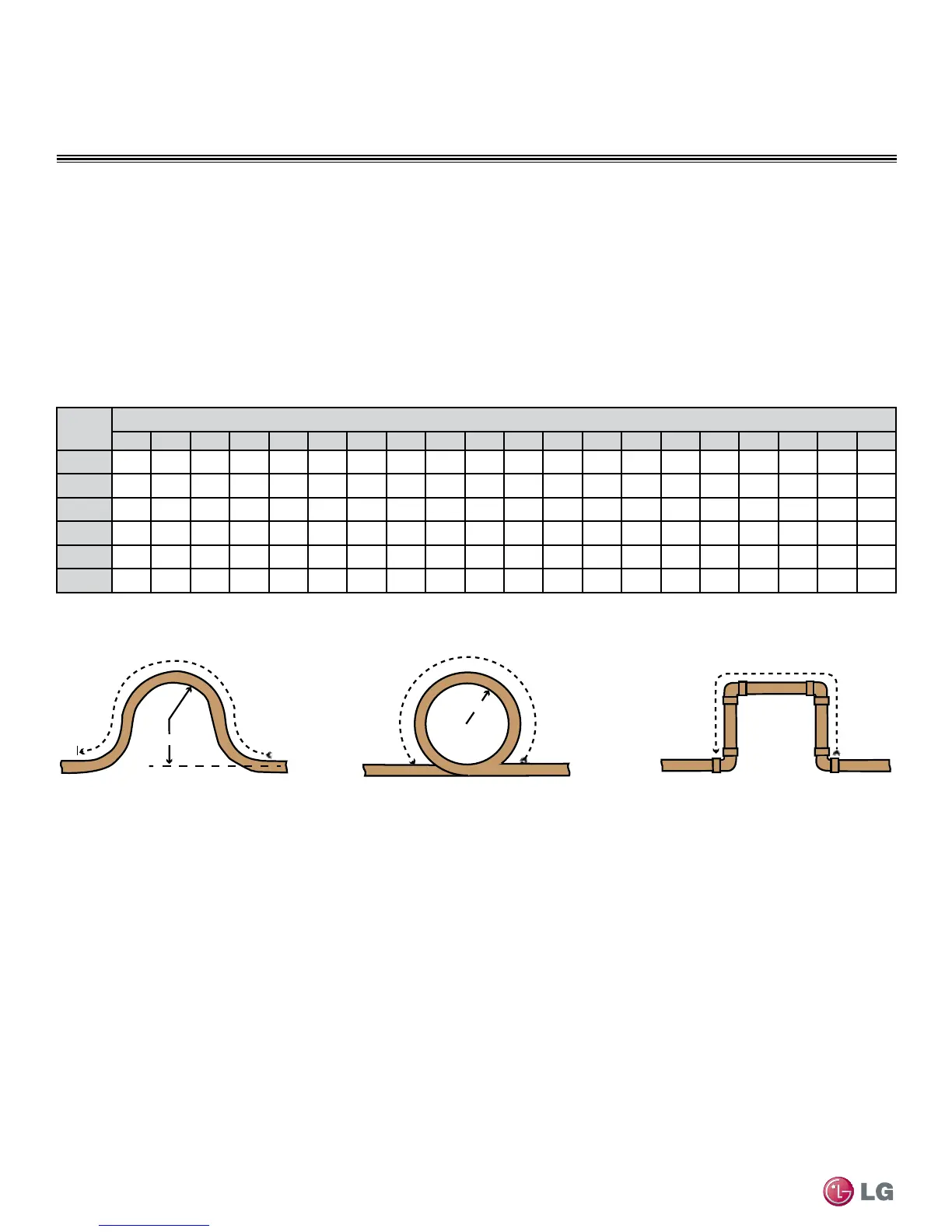

Figure 31: Coiled Expansion Loops and Offsets

Large Tubing U-bend (>3/4 in.) Loop Small Tubing U-bend (<3/4 in.)
