LG Multi V 5 Engineering Manual

ODU PRODUCT DATA | 63
Outdoor Unit Product Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
©
/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
ACOUSTIC DATA
Sound Pressure Levels
ARUM360BTE5 / DTE5 ARUM384BTE5 / DTE5 ARUM408BTE5 / DTE5
ARUM432BTE5 / DTE5 ARUM456BTE5 / DTE5 ARUM480BTE5 / DTE5
10
20
30
40
50
60
70
80
90
SPL (dB re 20ȝPa )
Octave Band Center Frequency (Hz)
Noise Criteria (NC)
NC-15
NC-70
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
Rating: NC-44-
ARUM504BTE5 / DTE5

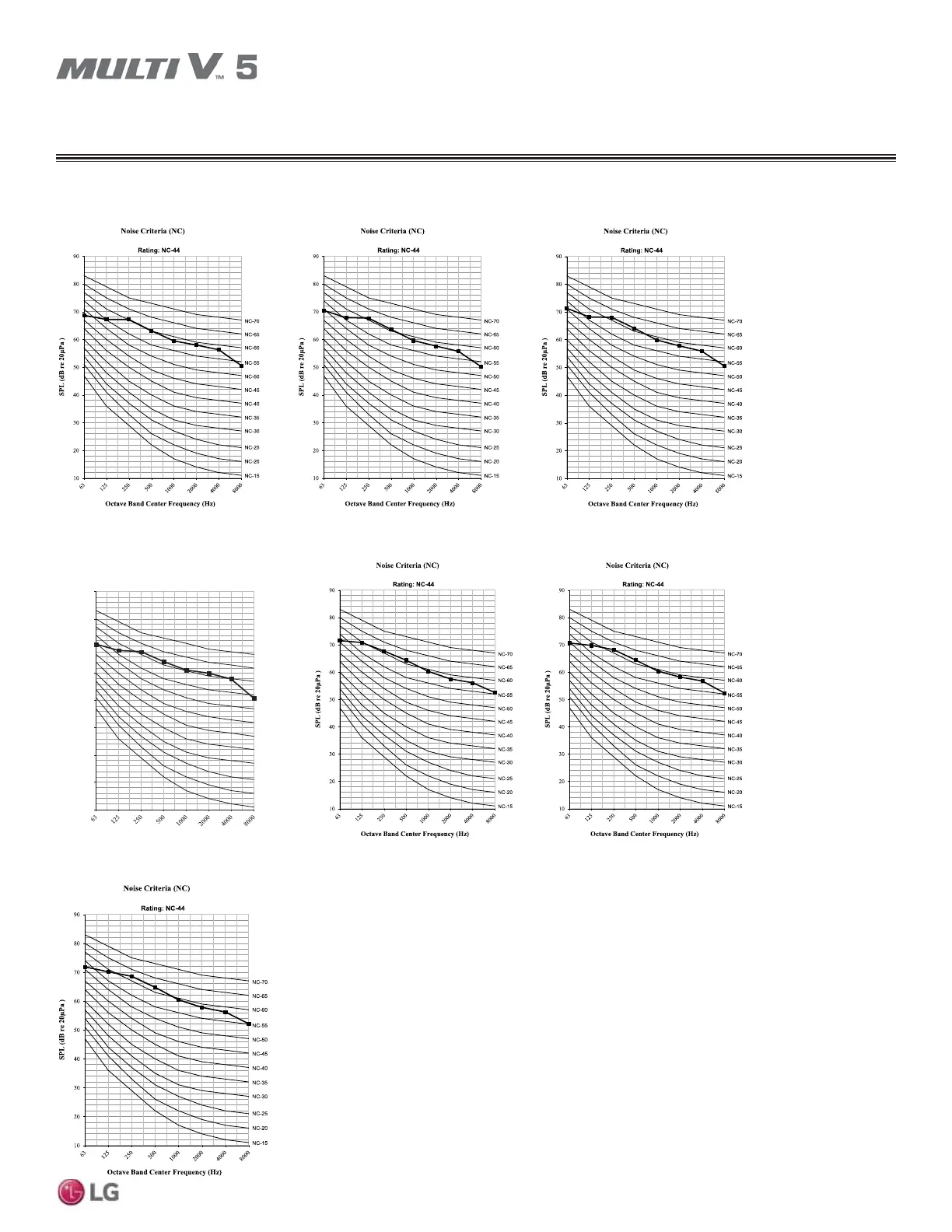

Figure 8: ARUM360-384-408BTE5 / DTE5 Sound Pressure Levels.
Figure 9: ARUM432-456-480BTE5 / DTE5 Sound Pressure Levels.
Figure 10: ARUM504BTE5 / DTE5 Sound Pressure Levels.

LG Multi V 5 Specifications

General

Type	VRF (Variable Refrigerant Flow)
Refrigerant	R410A
Compressor Type	Inverter Scroll Compressor
Outdoor Unit Fan Type	Axial Fan
Cooling Capacity	22.4 kW to 270 kW
Energy Efficiency	High
Operating Range	Cooling: -5°C to 48°C
Power Supply	380-415V, 50/60Hz
Heat Exchanger Type	Microchannel
Control Type	Centralized Control
Indoor Unit Options	Cassette, Wall Mounted, Ducted
Heat Recovery	Available
Warranty	Varies by region (typically 5 years compressor, 1-2 years parts)
