ACOUSTIC DATA
Sound Power Levels
Table 15: Outdoor Unit Sound Power Levels. • Data is valid under diffuse field conditions.
• Data is valid under nominal operating conditions.
• Sound level may be increased in static pressure mode or if air
guide is used.
• Sound power level is measured using rated conditions, and tested
in a reverberation room per ISO 3741 standards.
• Sound level will vary depending on a range of factors such as
construction (acoustic absorption coefficient) of particular area in
which the equipment is installed.
• 5HIHUHQFHDFRXVWLFLQWHQVLW\G% (ȝ:P
2
Outdoor Unit Models
dB(A)
Nominal Tons 208-230V 460V
6 ARUM072BTE5 ARUM072DTE5 77.0
8 ARUM096BTE5 ARUM096DTE5 78.0
10 ARUM121BTE5 ARUM121DTE5 79.0
12 ARUM144BTE5 ARUM144DTE5 83.0
14 ARUM168BTE5 ARUM168DTE5 85.0
16 ARUM192BTE5 ARUM192DTE5 87.0
18 ARUM216BTE5 ARUM216DTE5 88.0
20 ARUM241BTE5 ARUM241DTE5 88.0
22 ARUM264BTE5 ARUM264BTE5 86.0
24 ARUM288BTE5 ARUM288DTE5 87.0
26 ARUM312BTE5 ARUM312DTE5 88.0
28 ARUM336BTE5 ARUM336DTE5 88.0
30 ARUM360BTE5 ARUM360DTE5 89.0
32 ARUM384BTE5 ARUM384DTE5 89.0
34 ARUM408BTE5 ARUM408DTE5 90.0
36 ARUM432BTE5 ARUM432DTE5 89.0
38 ARUM456BTE5 ARUM456DTE5 89.0
40 ARUM480BTE5 ARUM480DTE5 89.0
42 ARUM504BTE5 ARUM504DTE5 90.0

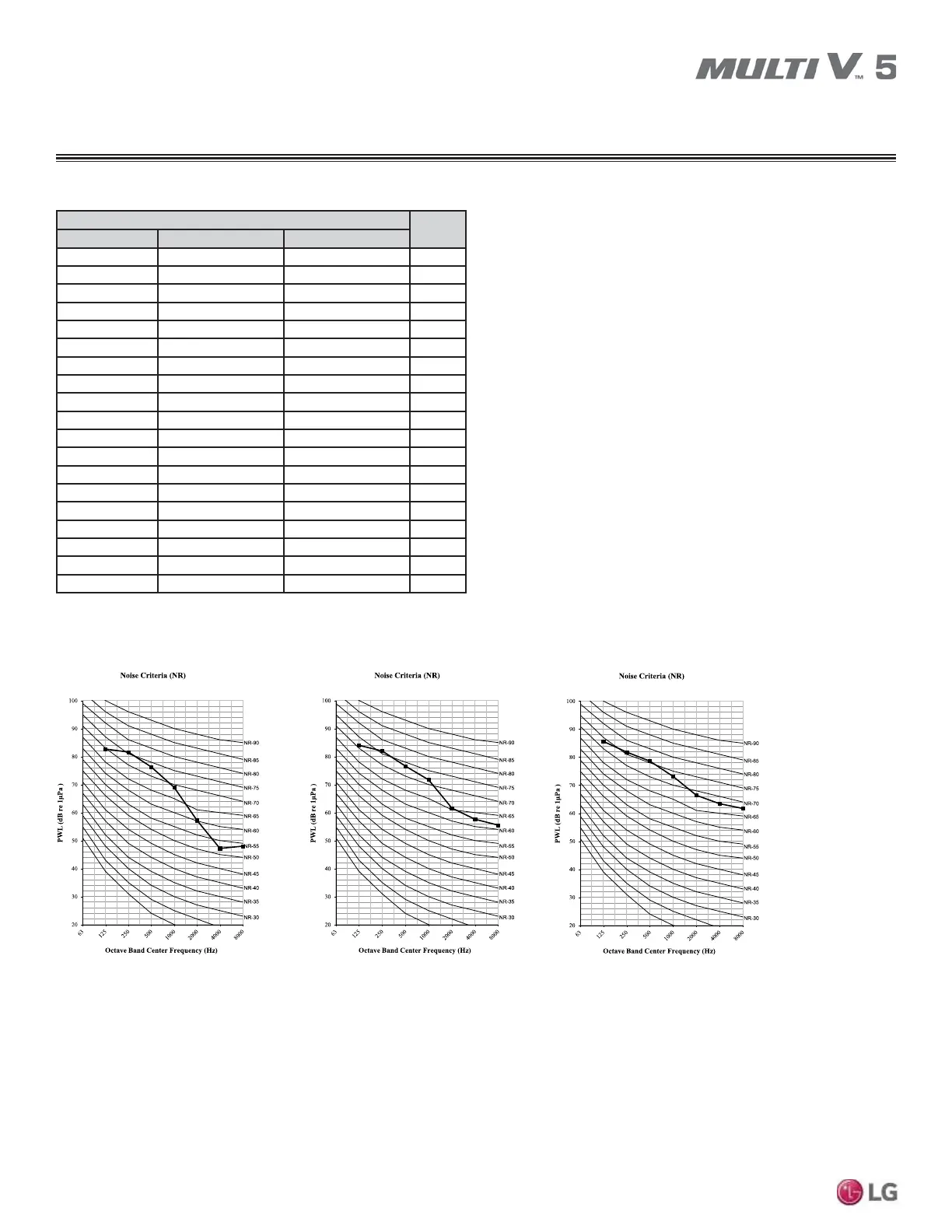

Figure 11: ARUM072-096-121BTE5 / DTE5 Sound Power Levels.
ARUM072BTE5 / DTE5 ARUM096BTE5 / DTE5 ARUM121BTE5 / DTE5
