Chapter 3 14

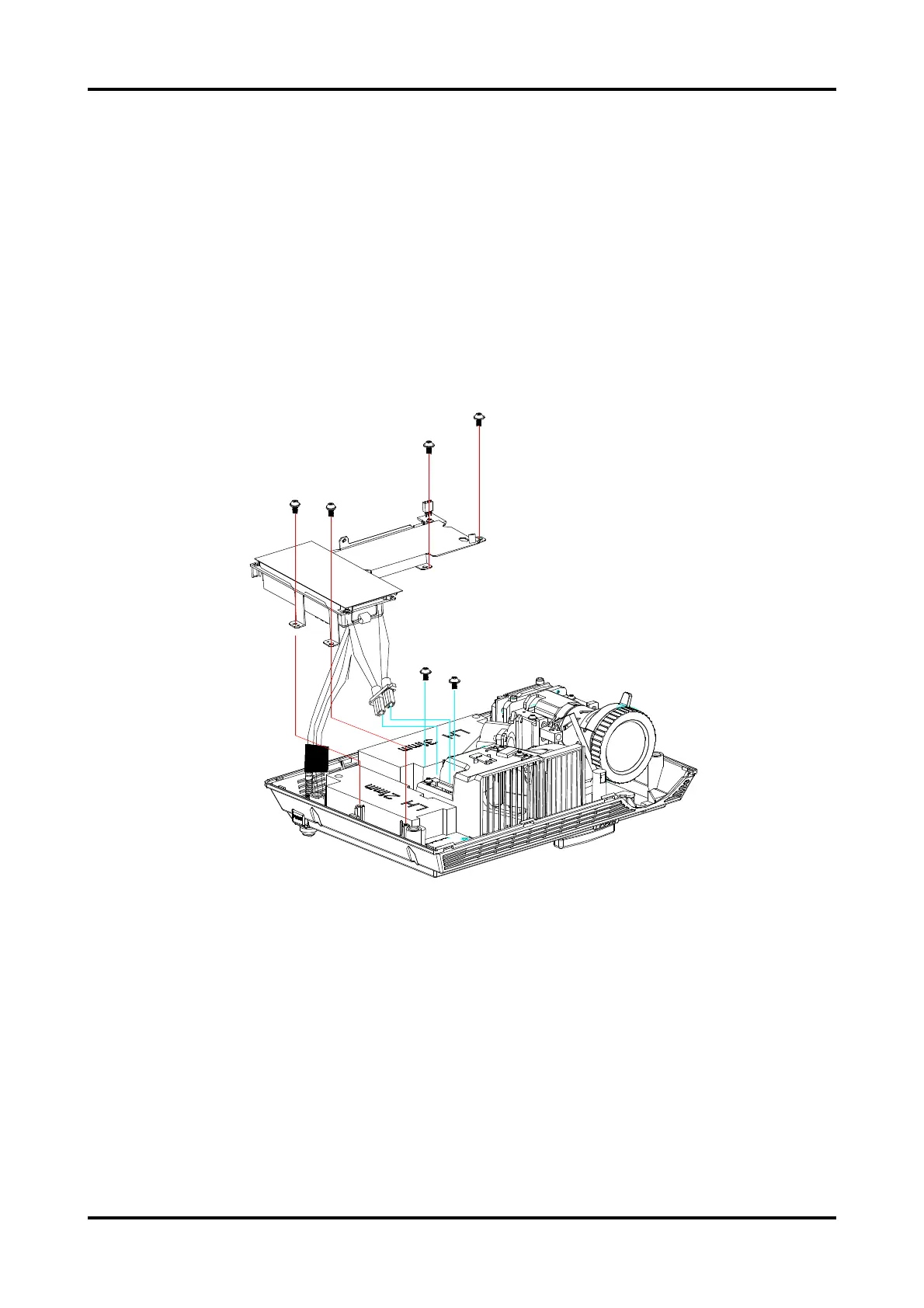

Disassemble Ballast Module
1. Unplug all wires on Ballast Module (Ballast Board PIN location of connectors pls refer
to Chapter 5 )
2. Unscrew 6 screws on Ballast Module.
3. Remove the Ballast Module.
6316000005E
