Chapter 3 18

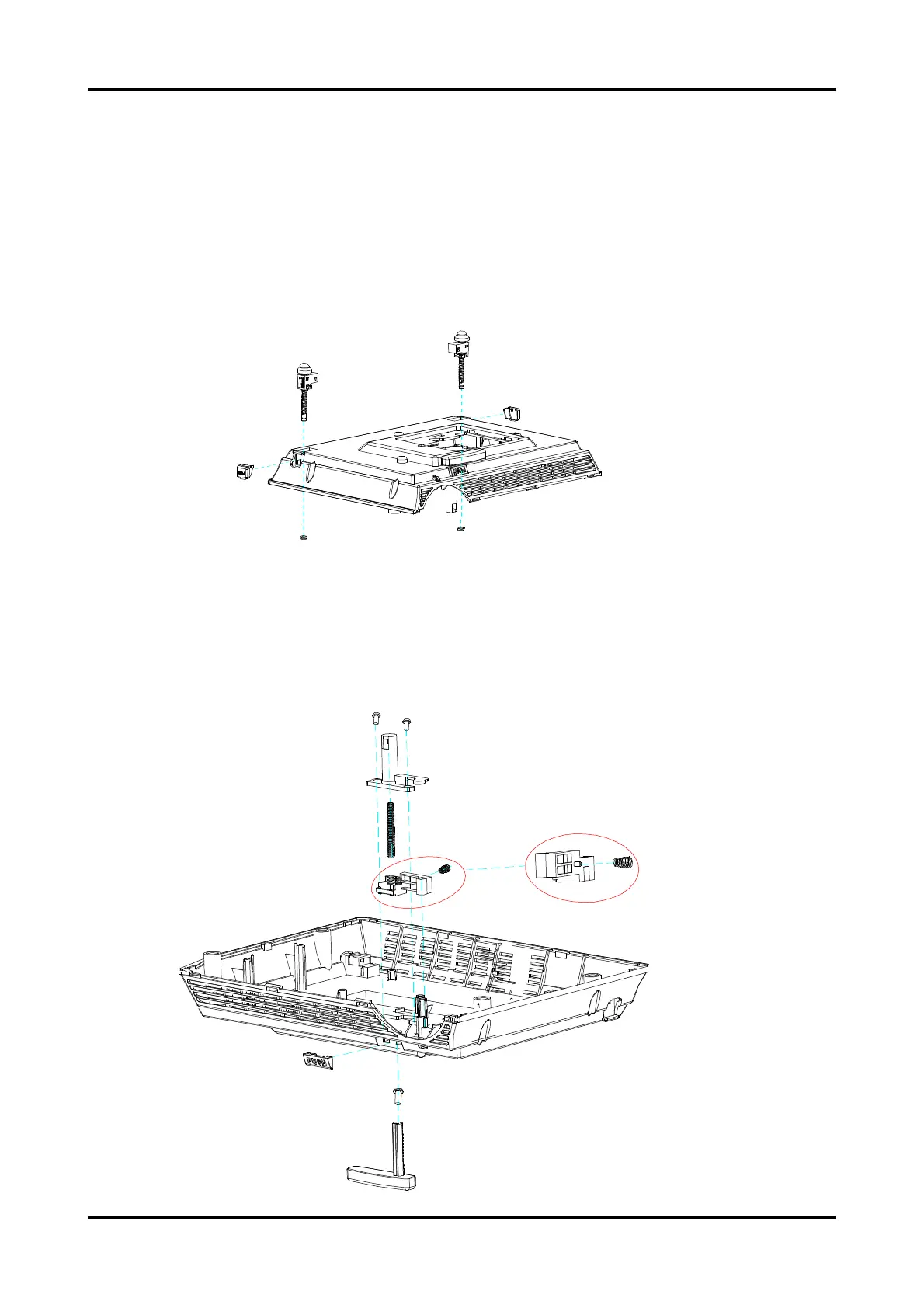

Disassemble Rear Foot Assembly
1. Remove the Ering
2. Push buttom let foot screw assembly fall off.
3. Use nipper or tweezers carfully to press the head of foot screw .
4. Then foot screw assembly drop out by itself .
1. Unscrew to disassemble the foot assembly on the Buttom cover
Disassemble Front Foot Assembly
4778V00084D
4778V00084C
