15 Chapter 3

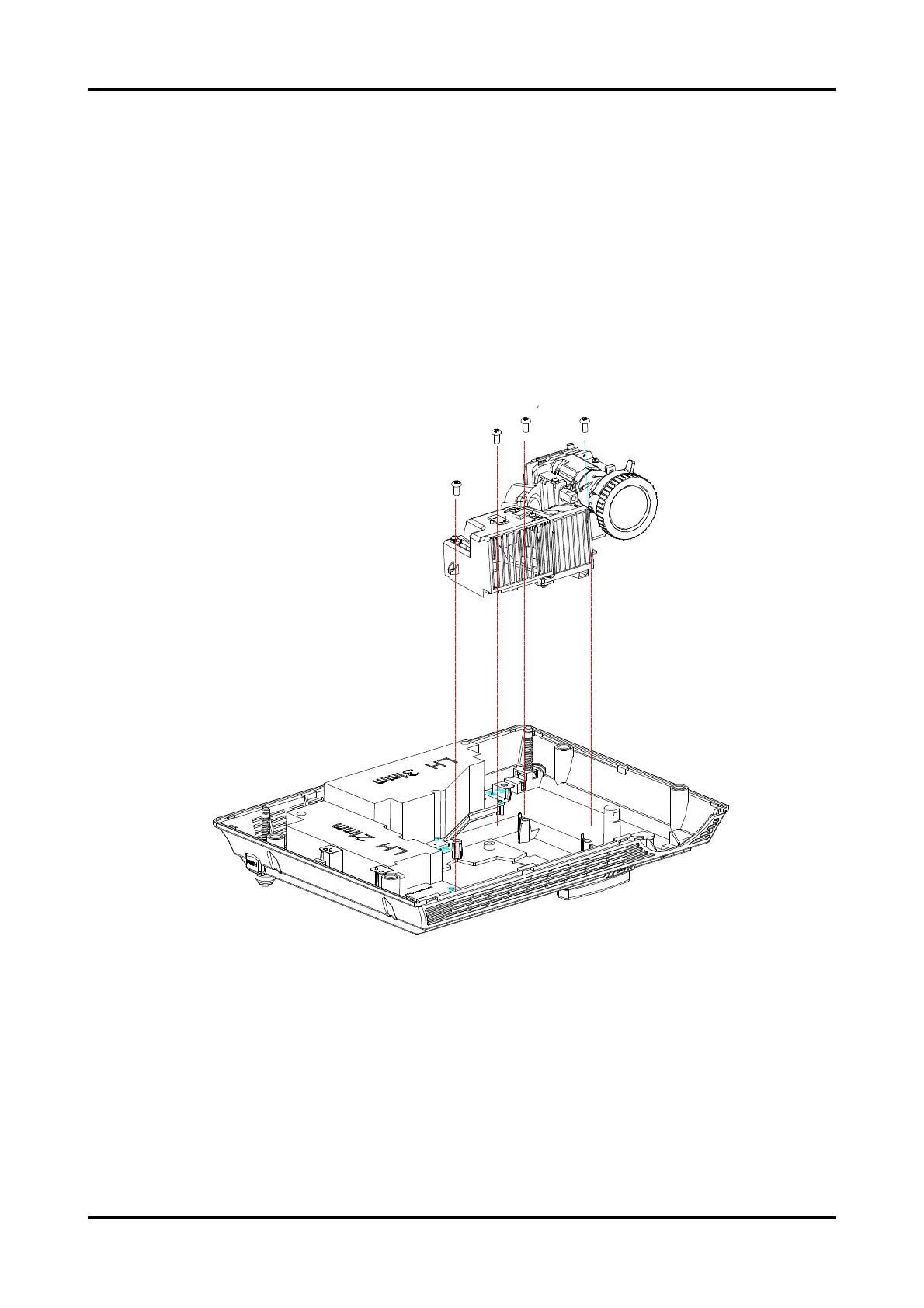

Disassemble Optical Engine
1. Unplug the wire inside.
2.. Unscrew four screws on Optical Engine.
3. Then remove the Engine Module.
4. Be careful don’t let the Engine go down due to the heavy machine.
01635-A01 *4
b
a
c
d
P1684-0003
3680V00075G
