ONE POINT REPAIR GUIDE
NO BOOTING WHEN YOU TURN THE UNIT ON, NO MESSAGE OR “HELLO”
ON FRONT PANEL
When you turn on your set, it will blank / no message on front panel / doesn’t work.
1-3. IC301 System 3.3 V (No 3.3 VA)
1-3-1. Solution
Replace MAIN board.
1-3-2. How to troubleshoot (Countermeasure)
1) Please check 3.3 VA of IC301 pin3.
2) If 3.3 VA is abnormal, replace MAIN board.
3) If 5.1 VA is OK, replace MAIN board.
1-3-3. Service hint (Any picture / Remark)

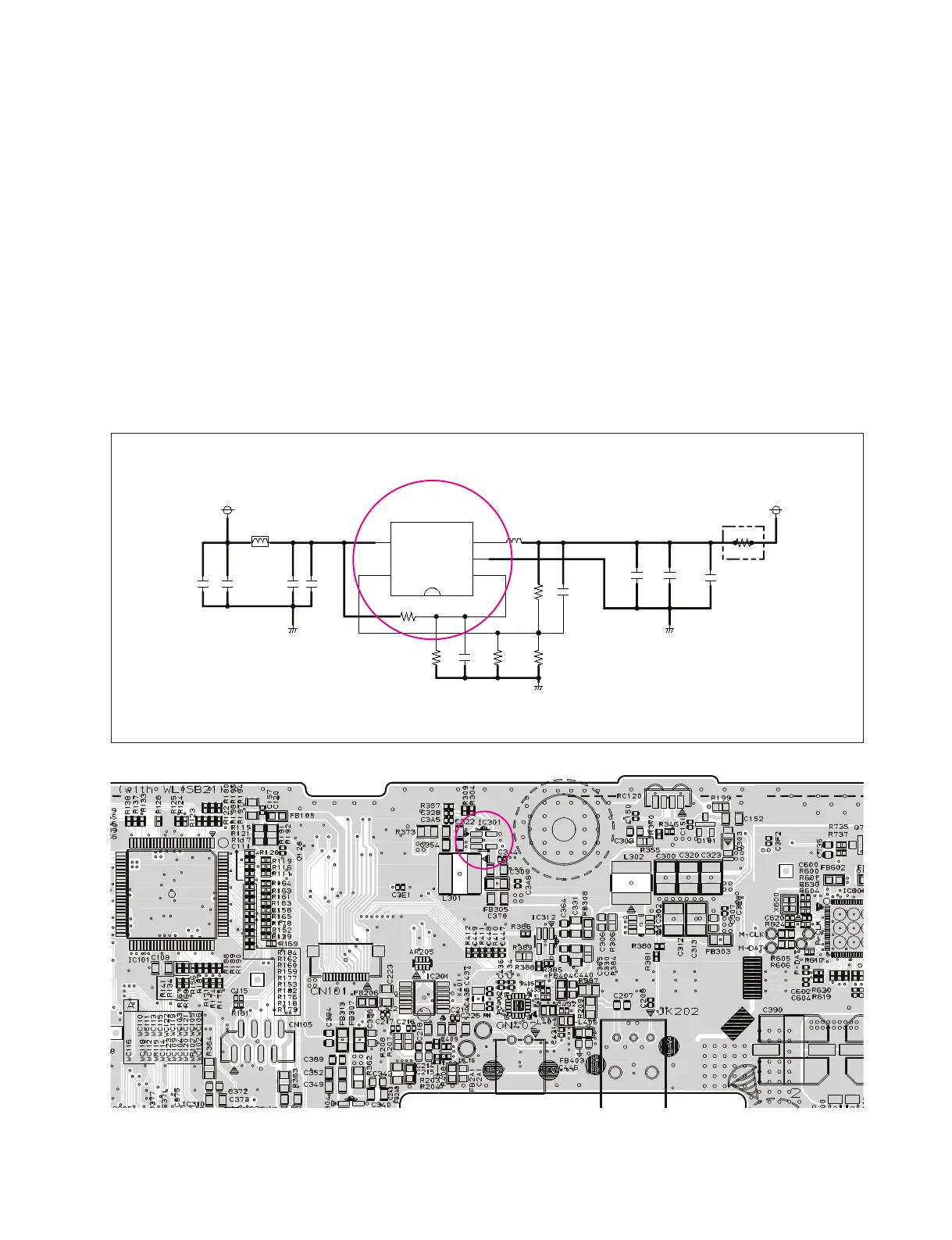

< MAIN board top view >
C322
10uF
/10V
C354
10uF
/10V
C309
10uF
/16V
C328
47pF
R356
4.7K
R309
24K
(1%)
R357
100K
(1%)
FB305
5.1VA
3.3VA
DGND
DGNDDGND
C3A4
100nF
IC301
1
EN
2
GND
3
LX
4
VIN
5
FB
R373
0OHM
NC
R304
240K
(1%)
C3A5
100nF
C3A8
100nF
R332
51K
(1%)
C369
100nF
C370
10uF
/16V
L301
470nH
[5.1VA TO 3.3VA]
VOUT = 0.6*(1+R1/(R2//R3))
VOUT = 0.6*(1+100K/((24K*240K)/(24K+240K)))
= 0.6*(1+100K/21.82K) = 3.350V
IC301
To Next Page
