ONE POINT REPAIR GUIDE
NO BOOTING WHEN YOU TURN THE UNIT ON, NO MESSAGE OR “HELLO”
ON FRONT PANEL
When you turn on your set, it will blank / no message on front panel, LCD doesn’t work.
1-4. LCD System power VCC_5V
1-4-1. Solution
Replace MAIN/ LCD Module.
1-4-2. How to troubleshoot (Countermeasure)
1) Please check CN101 VCC_5V of CN101 pin1.
2) If VCC_5 V is abnormal, replace MAIN board.
3) If VCC_5 V OK, replace LCD module.

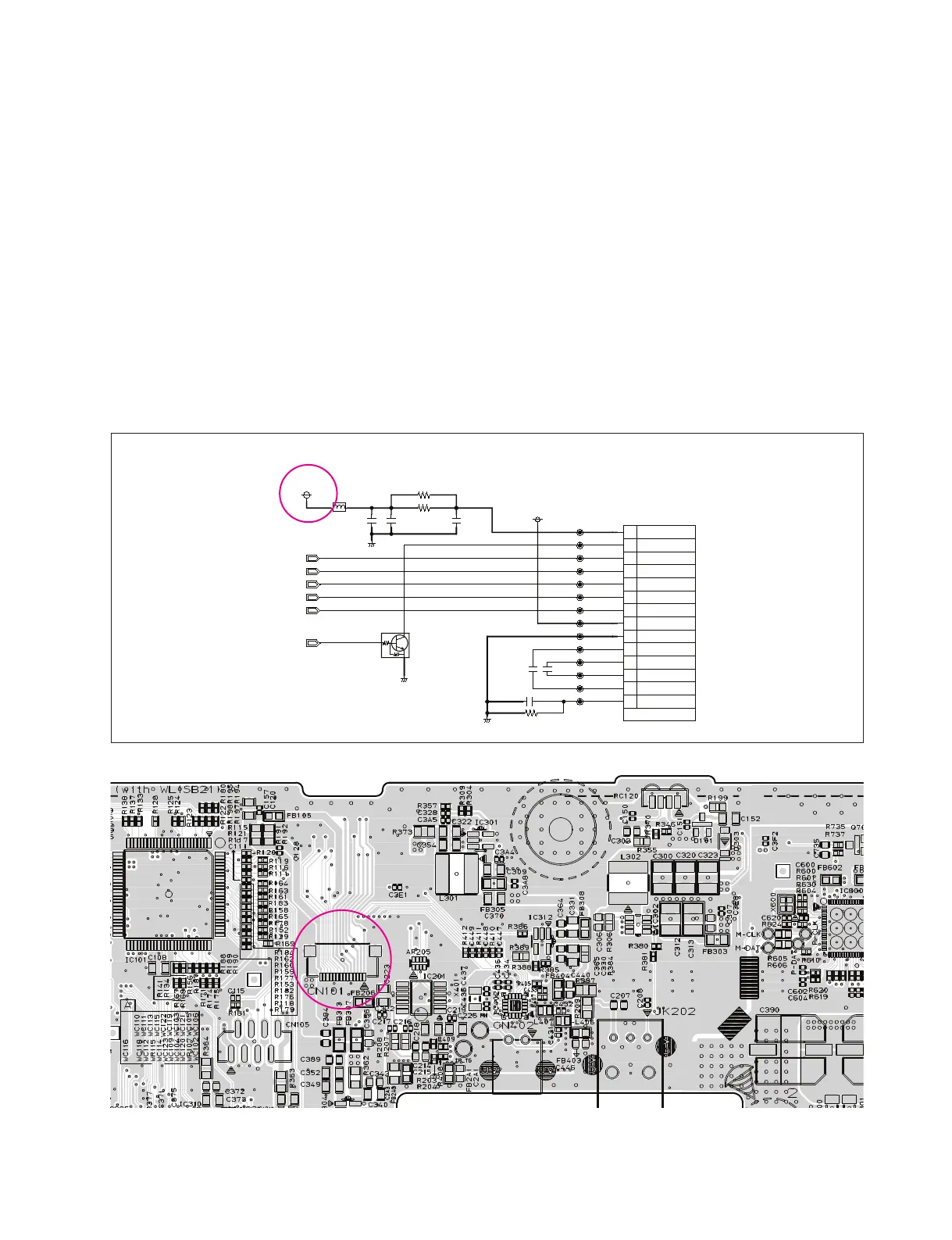

1-4-3. Service hint (Any picture / Remark)
< MAIN board top view >
DGND
DGND
LCD_DAT
DGND
LCD_BL
LCD_STB
LCD_CLK
LCD_RST
LCD_CD
C128
10nF
C157
10uF
/10V(M)
C120
100nF
VCC_5V
R191
220 (M)
R192
220 (M)
FB105
F_5V
LCD_BL
LCD_STB
LCD_CD
LCD_CLK
LCD_DAT
LCD_3V3
LCD_GND
VB0-
VB1-
VB0+
VLCD
Q104
E
C
B
3.3VA
R193
10M
C132
0.33uF
LCD_RST
VB1+
C156
2.2uF
/10V(X5R)
C155
2.2uF
/10V(X5R)
CN101
1
VLCD
2
VB0-
3
VB1+
4
VB1-
5
VB0-
6
VSS
7
VDD
8
SDA
9
SCK
10
CD
11
RSTB
12
CSB
13
LED(-)
14
LED(+)
Front_LCD
CN101
CN101
