DISASSEMBLY INSTRUCTIONS
1. HOW TO DISASSEMBLE THE MAIN UNIT

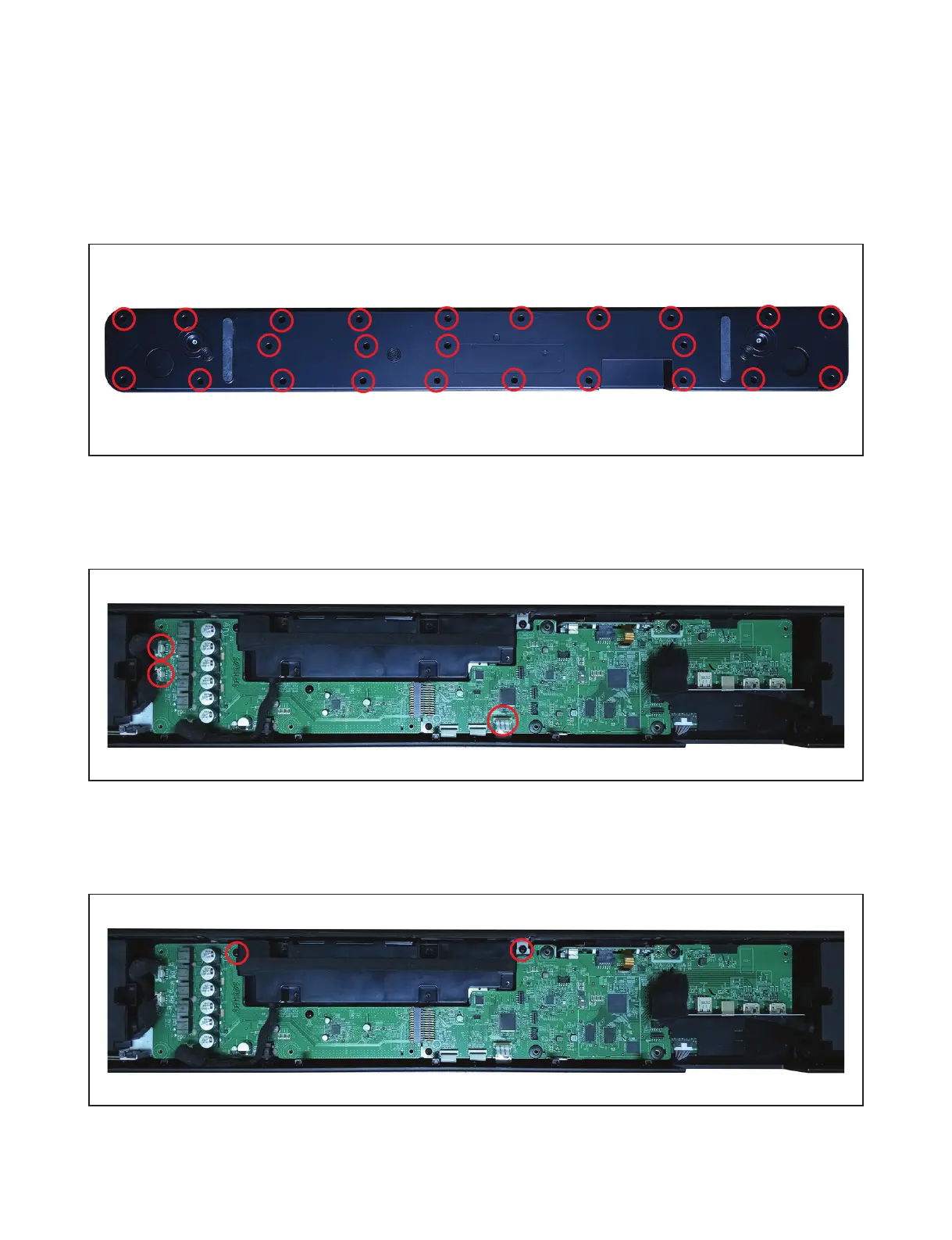

Figure 1-1
1-1. Disassemble of Case Bottom
Disassemble Red points Screw(1SSZR-0097X) : 24 EA
(Disassemble Screw (1SSZR-0097X) : 24 EA)
Figure 1-2 (1)
1-2. Disassemble Main PCB and Frame
(1) (Disassemble Case) – 3 Point
Figure 1-2 (2)
(2) (Disassemble Screw) – 2 Point
Disassemble Red points Screw(1SSZR-0098H) : 2 EA (Disassemble Screw(1SSZR-0098H) : 2 EA)
