PRINTED CIRCUIT BOARD DIAGRAMS
1. WIRELESS RECEIVER SMPS P. C. BOARD

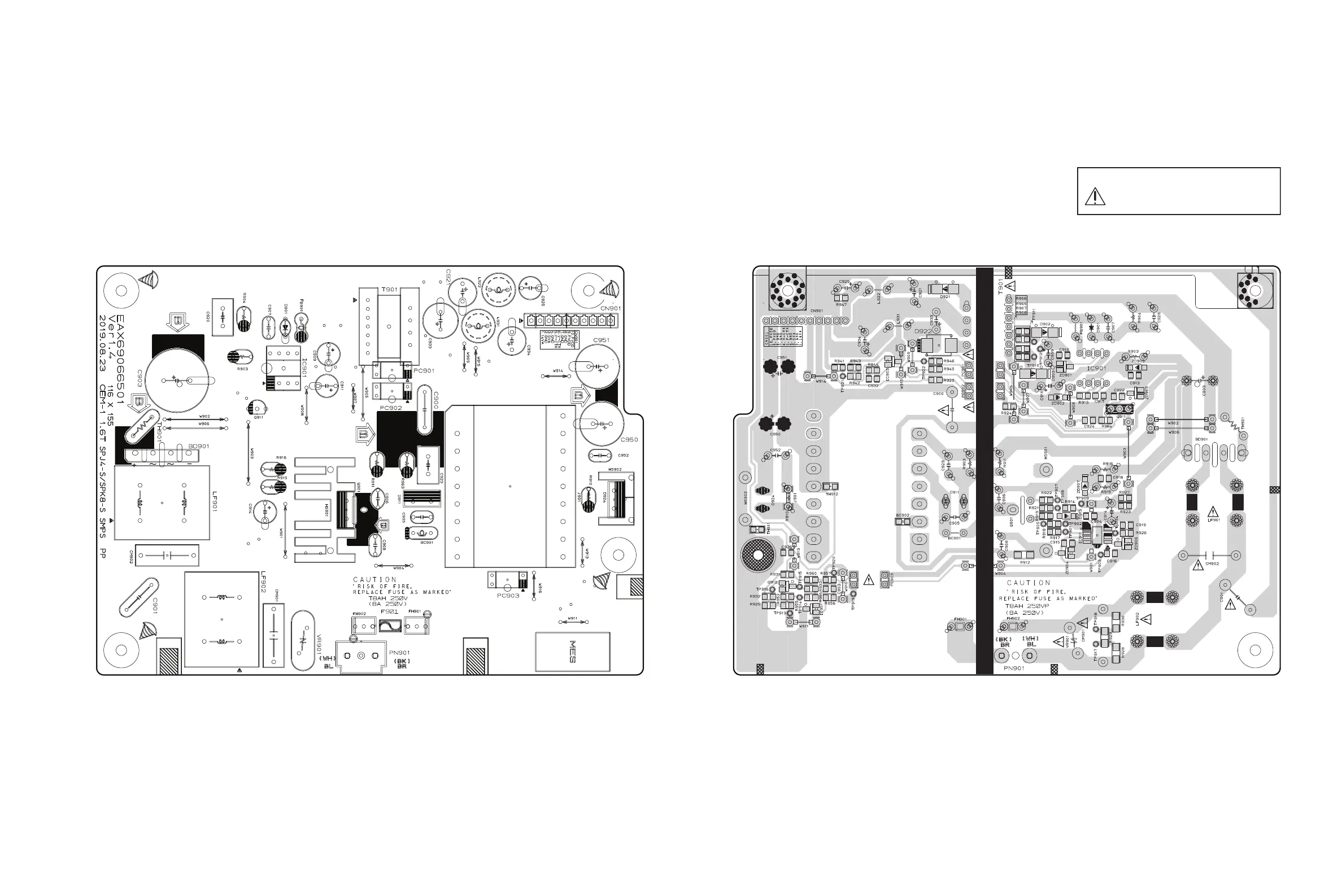

(TOP VIEW) (BOTTOM VIEW)
5-9 5-10
NOTE) Warning
Parts that are critical with respect to risk
of fire or electrical shock.
