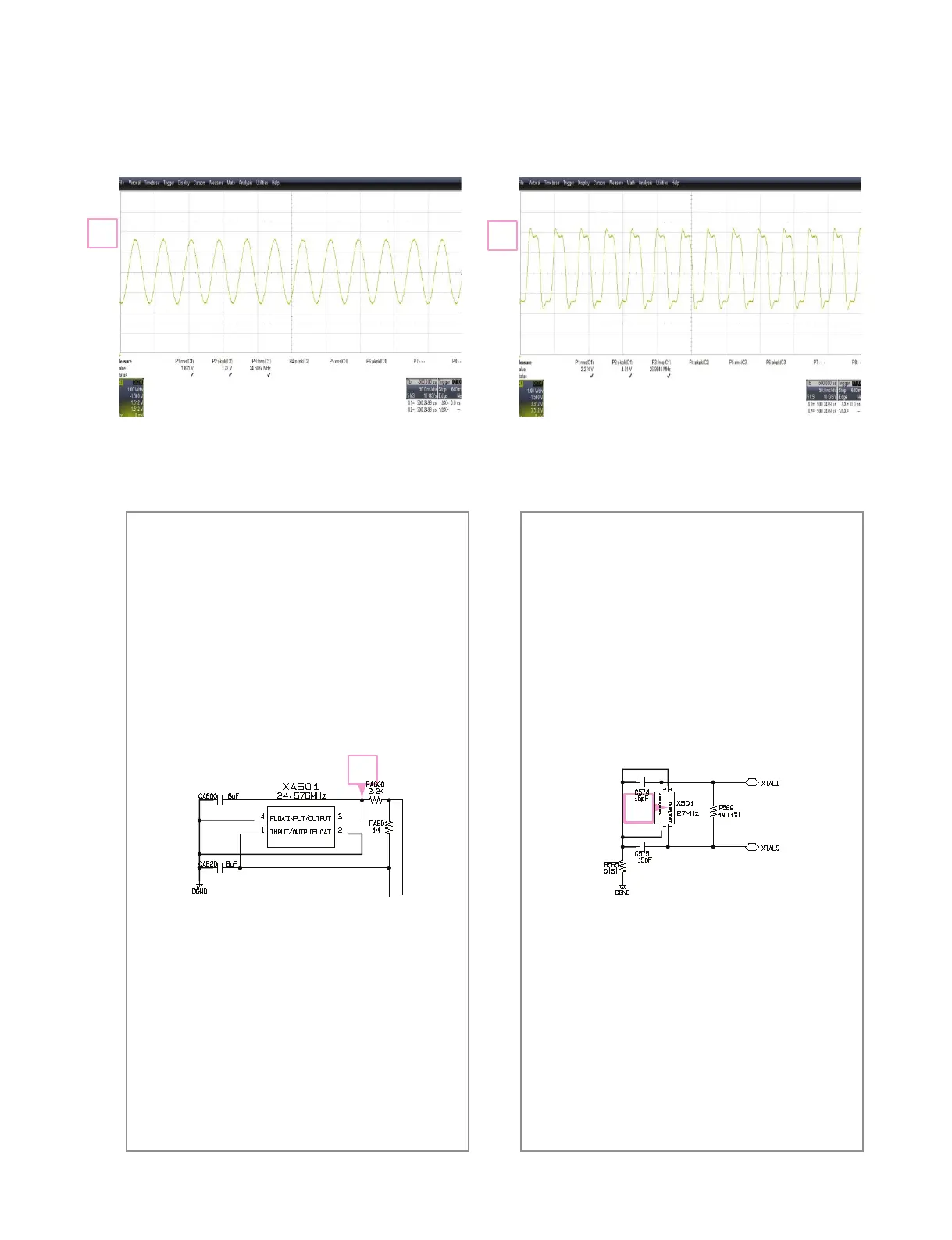

WAVEFORMS OF MAJOR CHECK POINT
1. CRYSTAL
Fig 1-2. Crystal
X501 (27 MHz)
Fig 1-1. Crystal
XA601 (24.576 MHz)
1
2
2
