ONE POINT REPAIR GUIDE
2. WIRELESS CONNECTION
Wireless connection malfunction.
2-1. 3.3 VA
1) Check 3.3 VA at WFB604.
2-2. Connection
1) Wireless module connection closely.
2) Implement Wireless Factory Reset.
 MAIN SET : Soundbar vol MIN and push Mute key (sustain 3 ~ 5 seconds).
 Subwofer :  Press Pairing button on the rear of the wireless subwoofer.
   The LED of of the wireless subwoofer blink red and green, pull out power cord.
   The main set and the wireless subwoofer are factory reset mode, then power on.

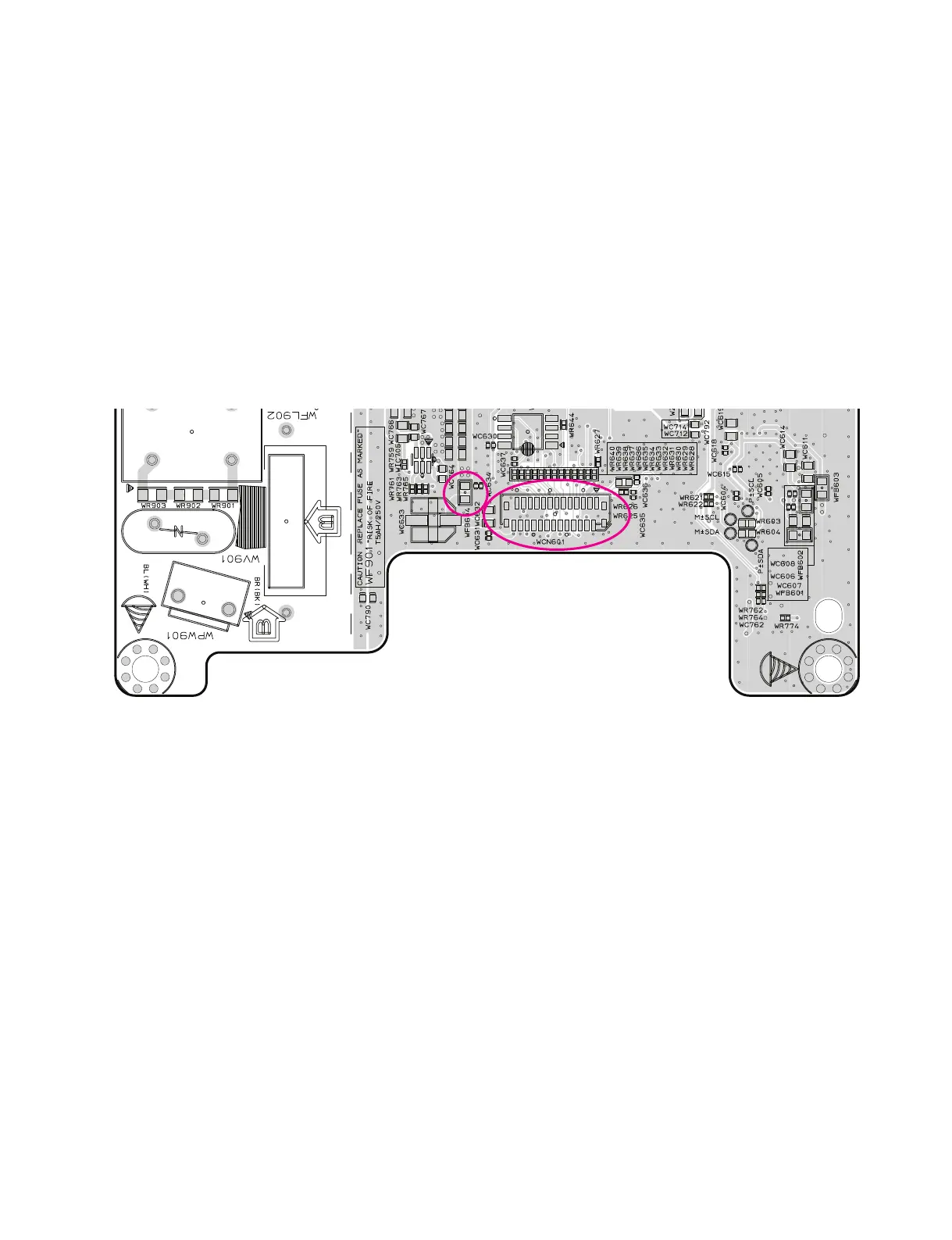

< Woofer SMPS & AMP board top view >
WFB604
WFB604
Wireless module
Wireless module
Connection check
Connection check
