HOW TO DISASSEMBLE THE MAIN UNIT
Figure 1-6 (1)

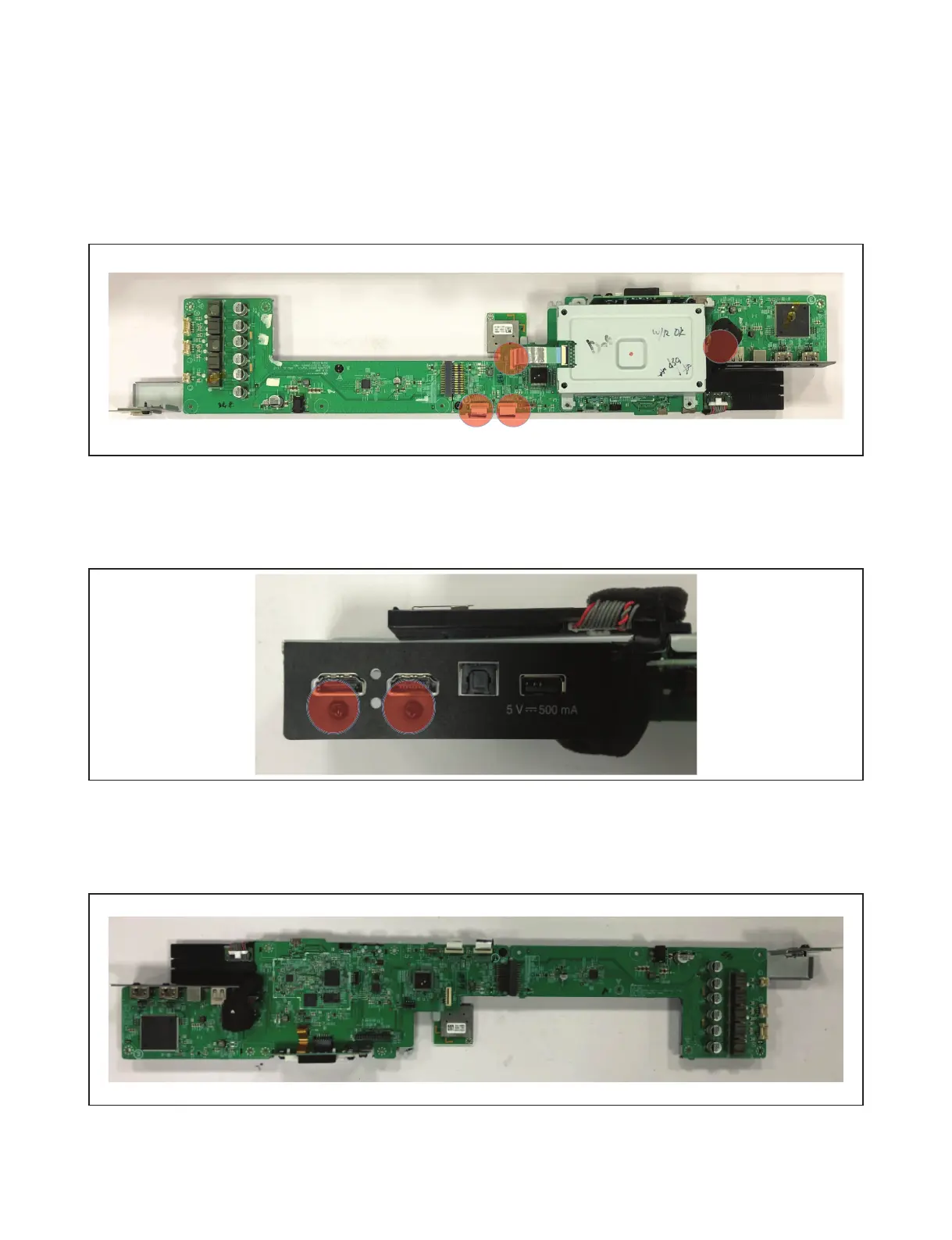

1-6. Disassemble Main PCB
- (Disassemble screw – 2 Point of red mark)
Figure 1-5 (2)
Figure 1-6 (2)
(2) (Disassemble Main PCB and Amp PCB)
- Disassemble Cable – 4 Point of red mark
Disassemble Red points Screw(234-022S) : 2 EA)
