INSTALLATION OF INDOOR UNIT
ENGLISH
①
②
③

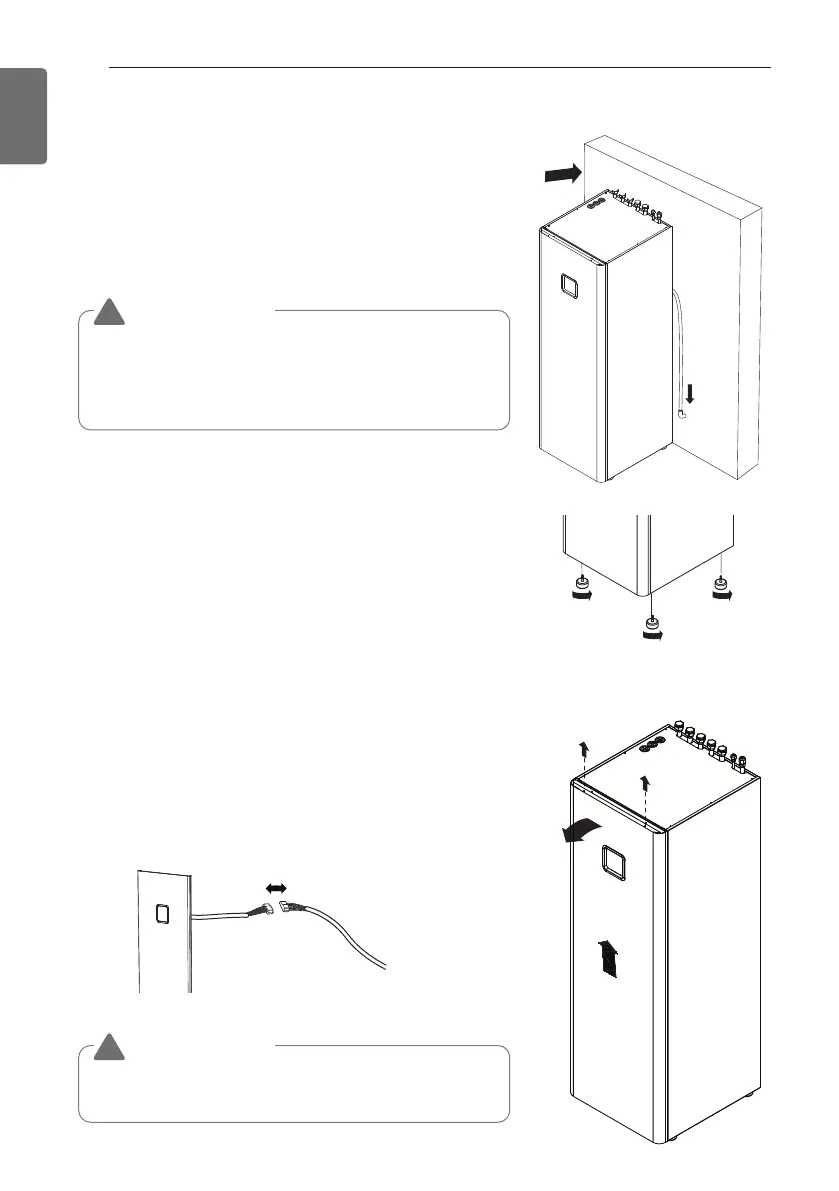

Front Panel Removal
Step 1. After releasing screws from the top the Indoor unit,
detach front panel ①.
Step 2. Lift the front panel ② and tilt it towards you ③ for
opening
Step 3. Before taking front panel off completely, disconnect
the cable of the remote controller ④.
CAUTION
!
After installation is completed, reconnect the cable of
remote controller.
Step 3. Before connecting any pipes, level the indoor unit
with supplied adjustable levelling feet.
CAUTION
!
• Attaching the hose for the condensate drain to the
sewer hose can cause corrosion of the appliance’s
internal components.
• The drain pipe must have an odor trap!
Connecting Condensate drainage
Step 1. Before the indoor unit’s final positioning, Insert the
drainage hose into the drain ①, which leads to the
sinkhole or storm drain. Seal the gap with a suitable
gasket.
Step 2. Then push the appliance to the wall ②.
①
②
④
