A-21

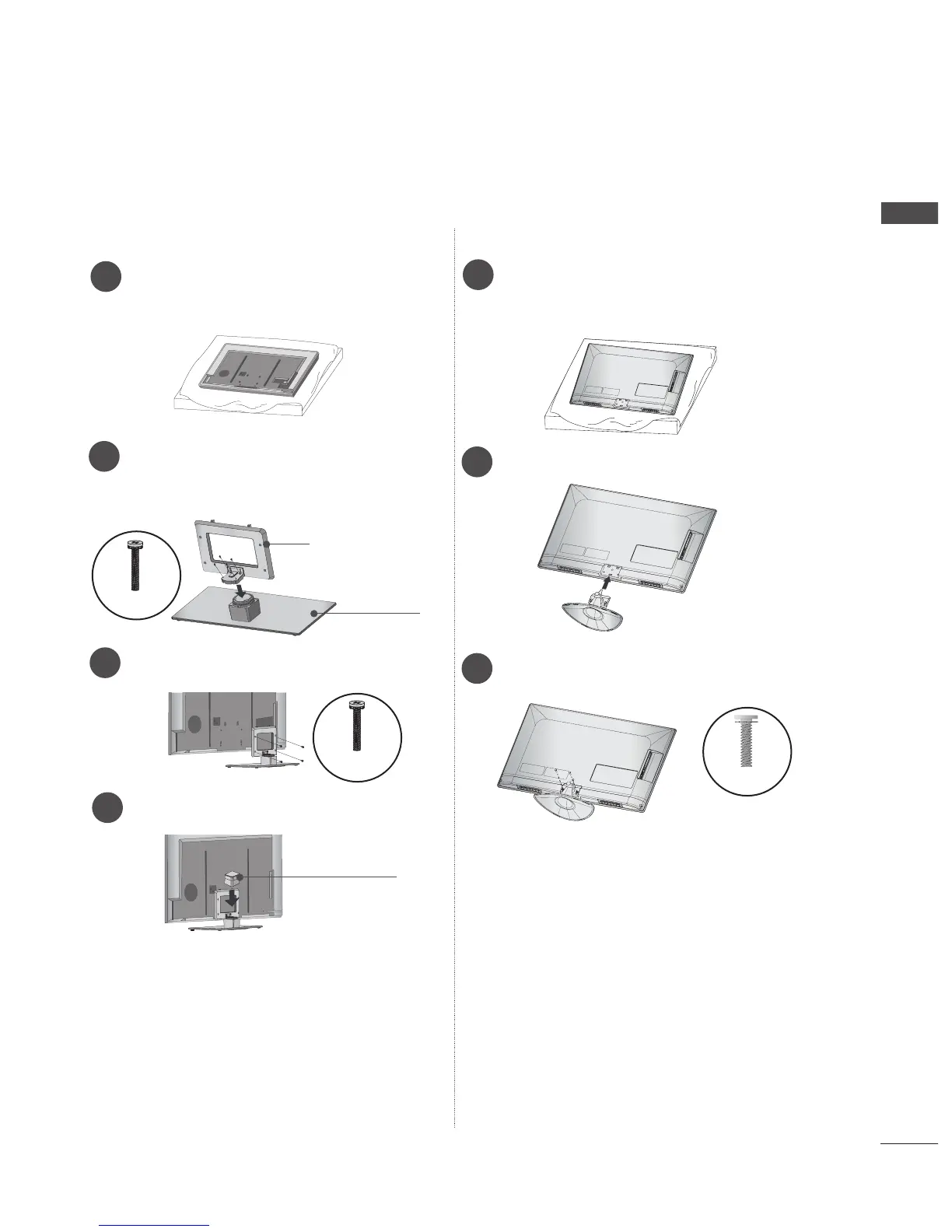

PREPARATION
Carefully place the TV screen side down
on a cushioned surface to protect the
screen from damage.
1
Assemble the parts of the Stand Body with
the Stand Base of the TV.
At this time, tighten the screws that hold the
Stand Body on.
2
Stand Body
Stand Base
Fix the 4 bolts securely using the holes in
the back of the TV.
3
Assemble the parts of the Stand Rear
Cover with the TV.
4
M4 X 12
M4 X 22
Only 47/55LX9***
Stand Rear
Cover
Only 22/26LE6***
Carefully place the TV screen side down
on a cushioned surface to protect the
screen from damage.
1
Assemble the TV as shown.
2
Fix the 2 screws securely using the holes
in the back of the TV.
3
M4 X 16
To Next Page
