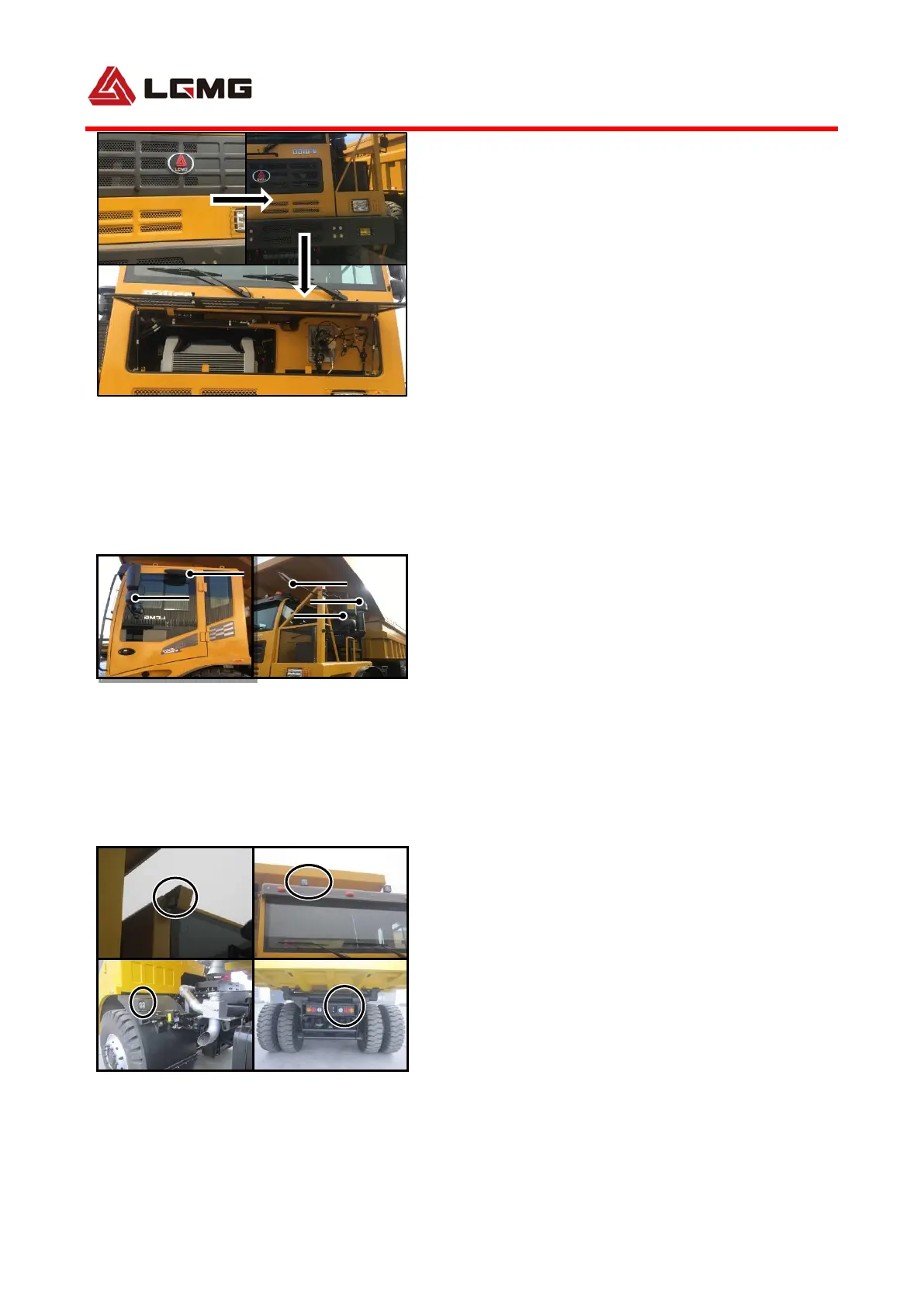

Fig.3-25
Fig.3-26
1.Right forestall blind mirror 2.
Rearview mirror 3. left back underview
mirror 4. Main rearview mirror in terrace
5. Left front underview mirror
Fig.3-27 LED
3.3 Cab exterior devices
3.3.1 Radiator cover
Open radiator cover: rotate the two knobs as shown
in Figure 3-25.
Close radiator cover: pull down the
radiator cover and rotate the knob in reverse.
△
! CAUTION: While closing the cover, do
not apply too much force and make sure that
nobody stays within the travel range of cover in
case of pinch.
3.3.2 Left/right rearview mirrors
They are as shown in Fig. 3-26.
3.3.3 Working lamp
The positions of working lamps are shown in Fig.3-27:
two at the front top of the cab, trail and front mudguard
respectively. They are arranged symmetrically; one at
the rear left of the cab with angle adjustable. The
working lamps are generally controlled by the
corresponding rocker switch inside, and can be turned
on or off at the same time.
