MT86 Operation and Maintenance Manual
85

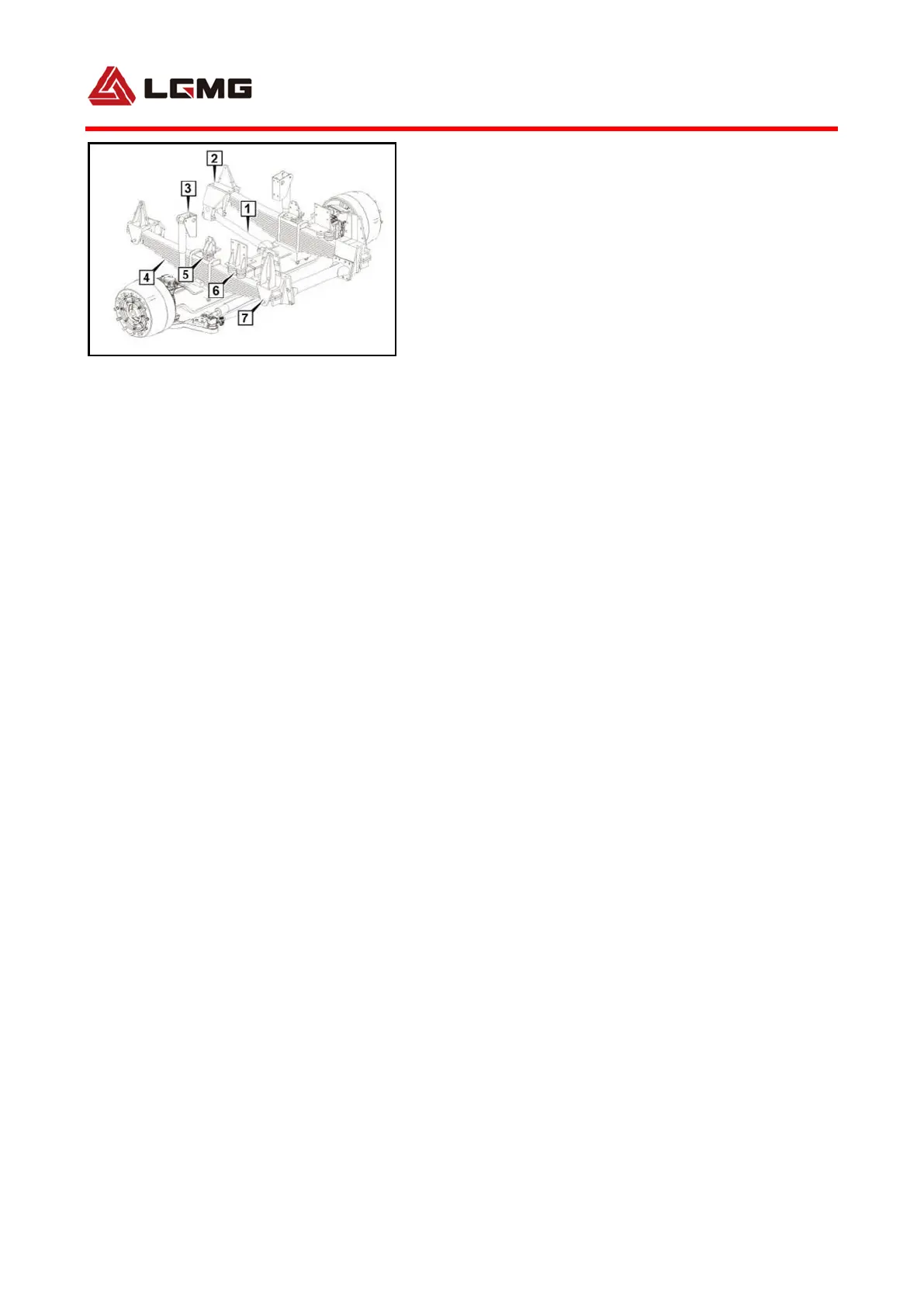

Fig4-27
Front suspension system
1. Front push rod 2. Front bearing of the leaf
spring installation 3. Cylindrical shock absorber
4. Parallel semiellipse leaf spring 5. Stop block 6.
Stop block Ⅱ 7. Rear bearing of the leaf spring
installation
4.6 Operation and maintenance of
suspension system
△
! Warning: It is necessary to
replace the thrust rod repair kit after
the truck has run for 4 months,
(20,000km). The user will bear
consequences of vehicle failures due to
thrust rod out of limit.
△
!
Caution: It is necessary to replace
the leaf spring seat wear block after
the truck has run for 4 months
(20,000kmM).
△
! Caution:
1. When the clearance between the guide
cover plate and the leaf spring is ≥
3mm, it is necessary to add adjusting
shims to keep the clearance ≤0.5mm;
2. If the wear extent of the guide
cover plate is ≥ 5mm, it is necessary
to replace it.
△
! Caution:
