MT86 Operation and Maintenance Manual
31

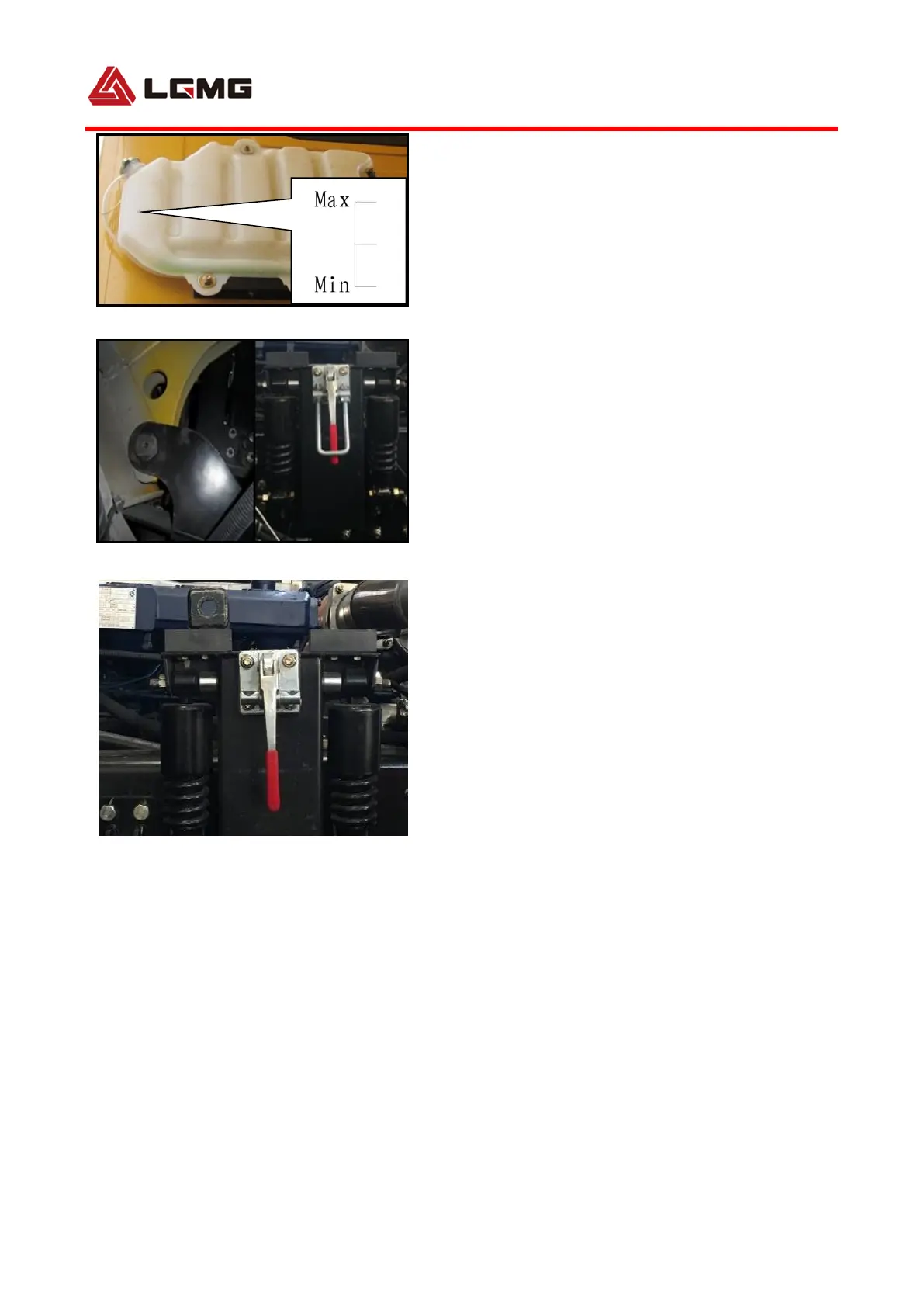

Fig.3-28 Expansion tank
Fig.3-29 suspension
3.3.4 Expansion tank
The expansion tank is located at the rear left side of cab
(as shown in Fig. 3-28).
3.4 Cab suspension
3.4.1 Front suspension
The cab front suspension is applied with the rotating
axle together with rubber shock absorber.
3.4.2 Rear suspension
Both rear suspensions are applied with dual shock
absorber together with hydraulic lock.
The lithium grease should be applied to the hydraulic
lock assembly and the matched lock shaft.
△
! CAUTION: The interchange or mixture of left
and right shock absorbers is not allowed due to
their distinct models.
3.4.3 Check suspension system
Check the engagement and disengagement of
hydraulic lock for normality.
3.5 Cab tilting
3.5.1 Hydraulic power-assisted tiltingassembly for cab
As shown in Figure 3-31.
Fig.3-30
Mechanical lock
