MT86 Operation and Maintenance Manual
32

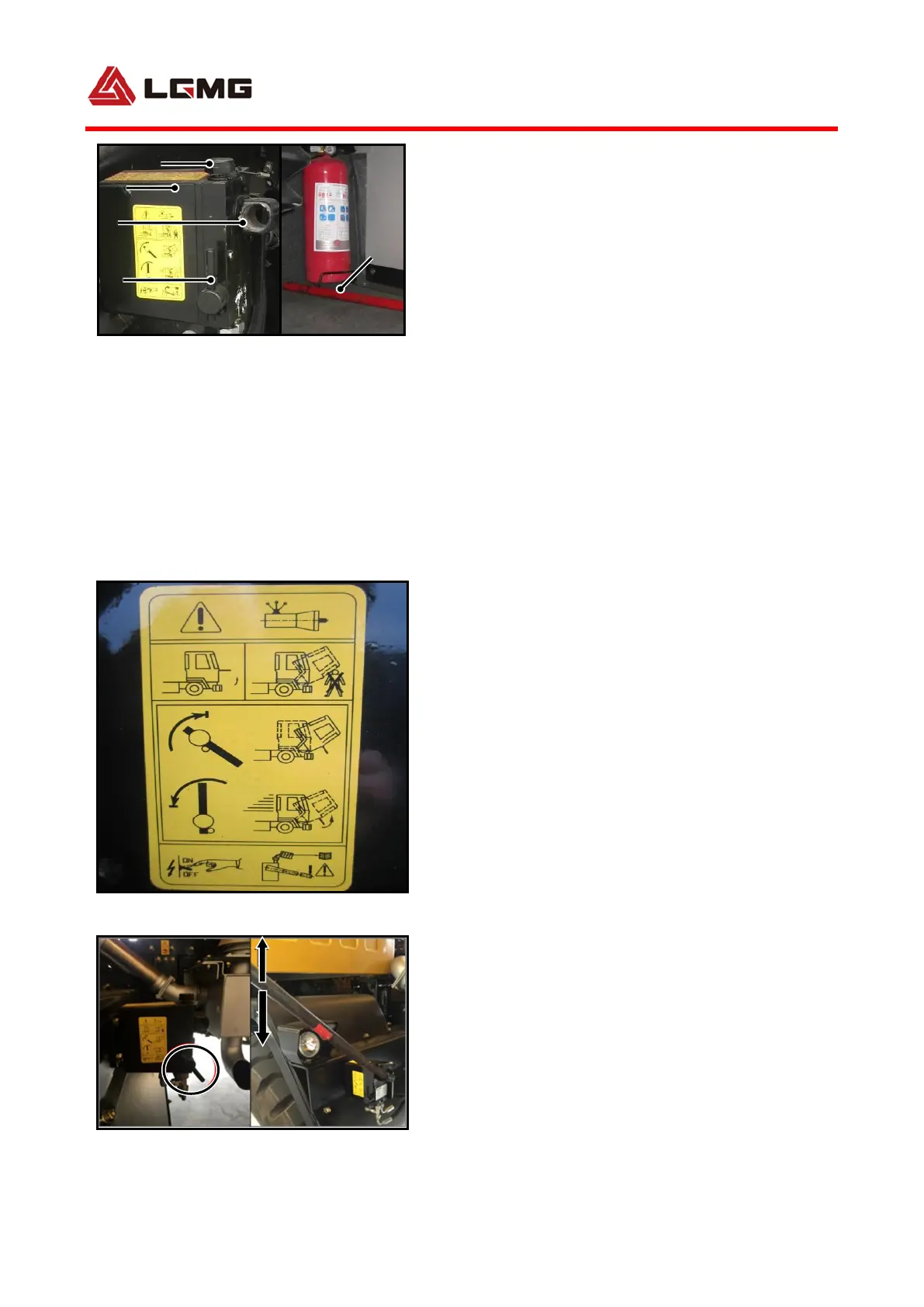

Fig.3-32 Cab tilting operations
Fig.3-33 Cab return operations
3.5.2 Cab tilting operation
△
! WARNING: During the whole process of
tilting, personnel are strictly prohibited to enter the
cab, and personnel without fixed duties are strictly
prohibited to stay around the cab.
1) Remove unsecured items in the cab before tilting.
2) Turn over the cab: pull the manual reversion handle
of tiltingpump to the position as shown in the figure,
insert the ripping bar and swing it up and down so as to
complete tiltingoperation; during tiltingoperation, the
position of manual reversion handle shall not be
changed.
3) Turn the cab back: pull the manual reversion handle
of tiltingpump to the position as shown in the figure,
insert the ripping bar and swing it up and down so as to
turn the cab back.
△
! WARNING: The operation of cab tilting on a
slope is forbidden. Every time, the cab shall be
tilted completely. In other words, the maintenance
and overhaul cannot be done unless the cab
exceeds TDC. When the cab is under tilting, nobody
is allowed to enter the cab!
3.5.3 Oiling and bleeding of tilting system
1) Open the oil plug, and top up with the specified
hydraulic oil until it is full.
2) Tilt up the cab gradually while continuing oiling
3) Lower the cab while letting the excessive oil overflow.
4) Operate the pump to tilt up the cab to return is back
Fig.3-31
1. Hydraulic hand pump 2. Pinch
bar jack 3. Oil plug 4. Pinch bar
5. Switchover handle
5
2
1
3
4
