LGMG MT86 - Cab Interior Devices

MT86 Operation and Maintenance Manual
20
3.2 Cab interior device

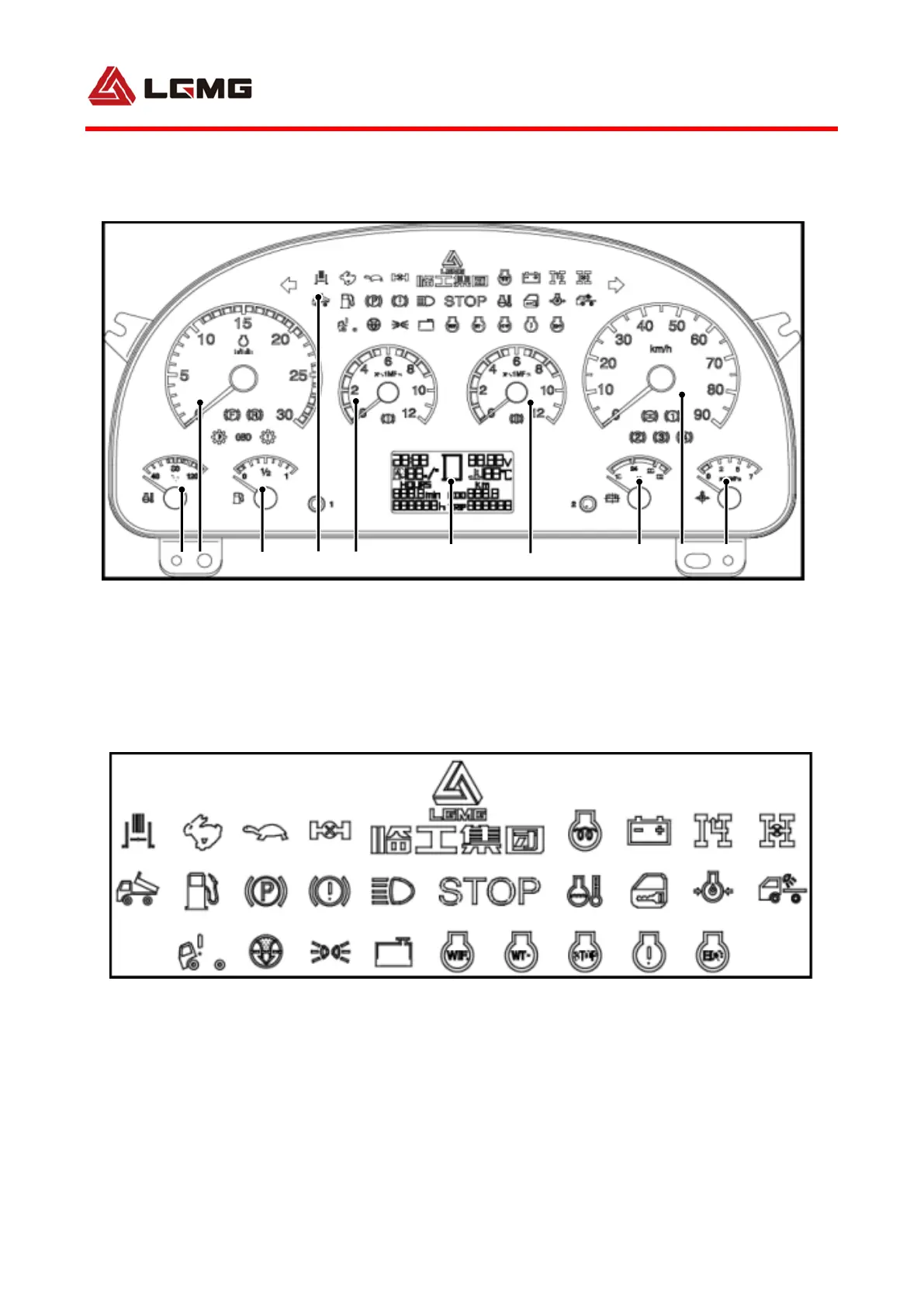

3.2.1 Instrument cluster
1. Coolant thermometer 2. Engine tachometer 3. Fuel gauge 4. Alarm indication mark 5. Barometer of brake circuit 1
6. LCD 7. Barometer of brake circuit 2 8. Voltmeter 9. Speedometer 10. Oil pressure gauge
Fig.3-4
3.2.2 Steering wheel and switch panel
5
6
1
3
7
8
9
10
2
4
Fig.3-6
