MT86 Operation and Maintenance Manual
21

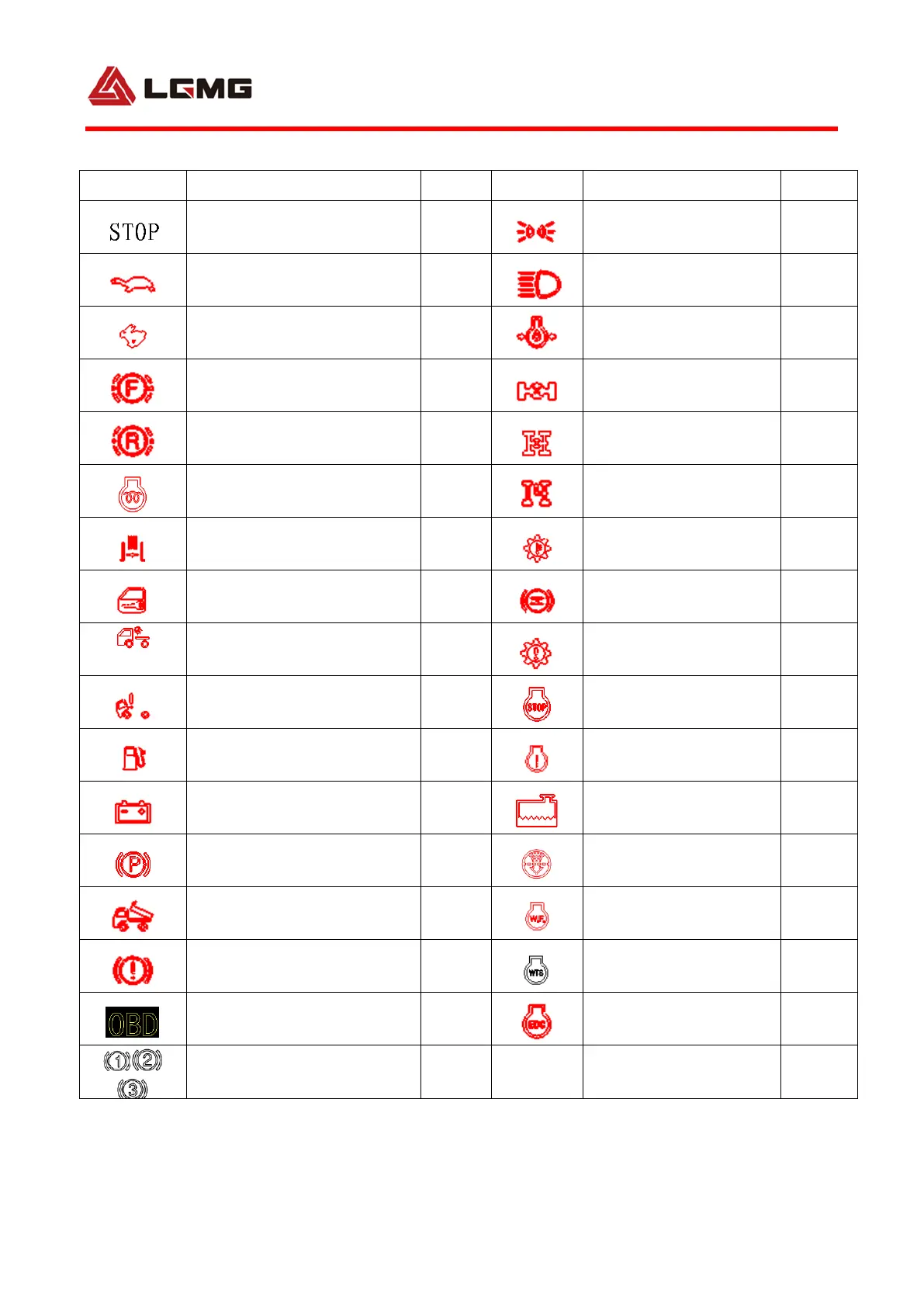

3.2.3 Alarm indicators
S/N
Description
Color
S/N
Description
Color
Parking indicator
Red
Width lamp on indicator
Green
Low gear indicator
(reserved)
Green
High beam indicator
Blue
High gear indicator
(reserved)
Green
Low oil pressure alarm
indicator
Red
Forward gear indicator
(reserved)
Red
Inter-wheel differential
indicator (reserved)
Green
Reverse gear indicator
(reserved)
Red
Bogie differential lock
indicator
Green
Left turn indicator indicator
(reserved)
Yellow
Parking PTO indicator
Green
Exhaust brake indicator
Yellow
Transmission high
temperature indicator
Red
Door ajar alarm indicator
Red
Retarder brake
indicator (reserved)
Red
Rear working lamp on
indicator
Green
Transmission fault
indicator (reserved)
Amber
Cab unlocked alarm indicator
(reserved)
Red
Engine serious fault
indicato
Red
Low fuel level alarm indicator
Yellow
Engine fault
indicator (reserved)
Red
Storage battery charging
indicator
Red
Engine coolant level
low alarm indicator
Red
Parking brake indicator
Red
Air filter blockage
indicator
Yellow
Cargo lift alarm indicator
Red
Water in oil indicator
Yellow
Low brake pressure alarm
indicator
Red
Engine start wait time
indicator
White
OBD indicator
Yellow
Engine diagnostic
indicator
Red
Retarder position indicator
Red
