3.2.4 Summary of rocker switch marks and function description

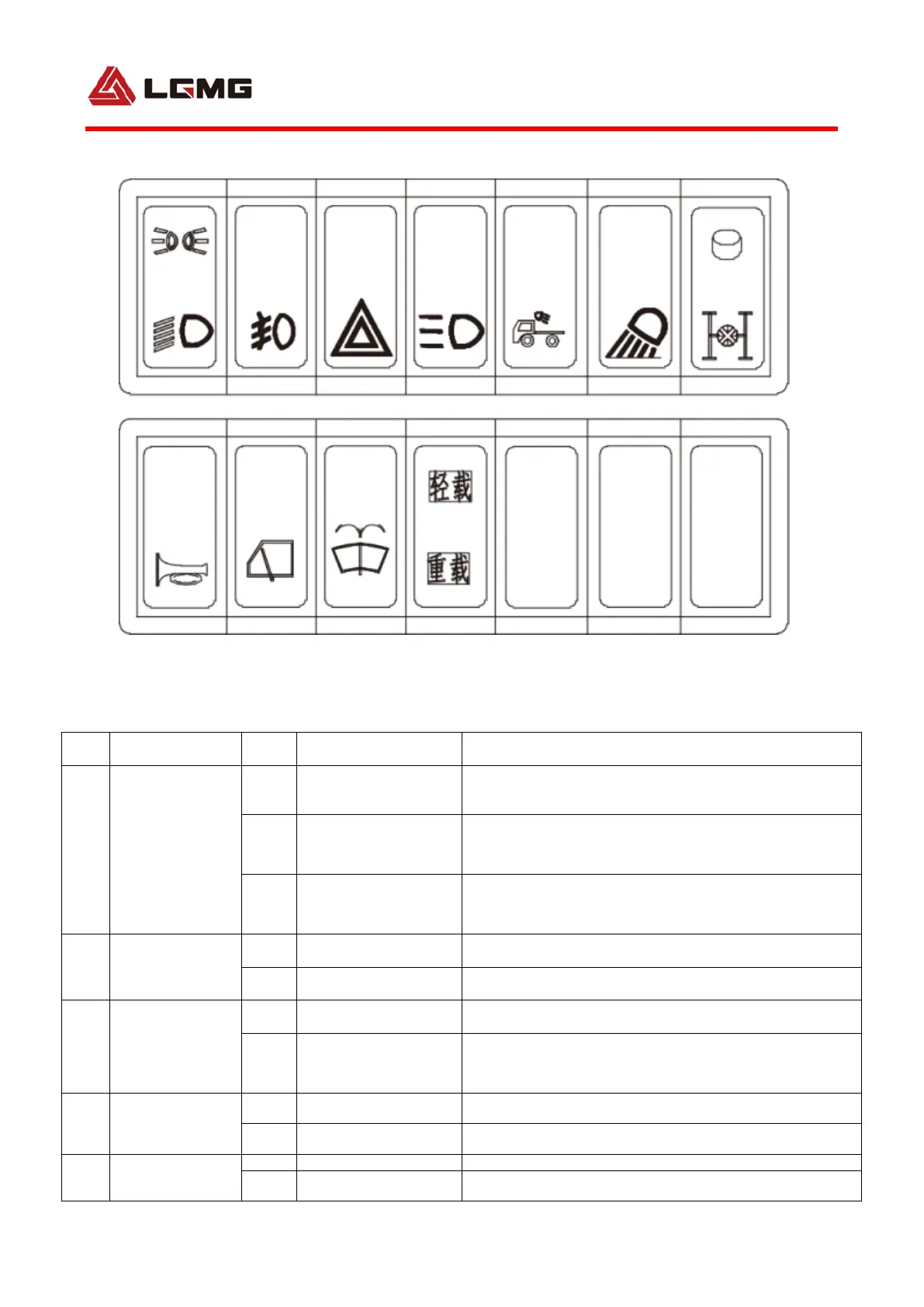

Fig.3-7
NO.
NAME
state
function
remake
1
Lamp switch
1
Clearance lamp ON /
headlamp OFF
When the switch is turned to gear 2 and 3, the instrument
lighting actuation will be effective; and high beam inching will
be ineffective.
0
Clearance lamp and
headlamp OFF
2
clearance lamp /
headlamp ON
High beam inching will be effective; high beam/low beam
combination switch will be effective.
2
Front working
lamp switch
0
Front working lamp
OFF
1
Front working lamp ON
Front working lamp driven
3
Hazard warning
switch
0
Hazard warning OFF
1
Hazard warning ON
The key switch will be effective when it is turned to gear 1, 2, 3
and 4.
4
Inter-axle
differential switch
0
OFF
1
ON
5
Cab rear working
lamp switch
0
OFF
1
ON
Cab rear working lamp ON
