7. Appendix
7.1. ACP Setup
It is recommended to Use “ACP 2.0C”.
To insert ACP on LS9 EVK proceed as below.

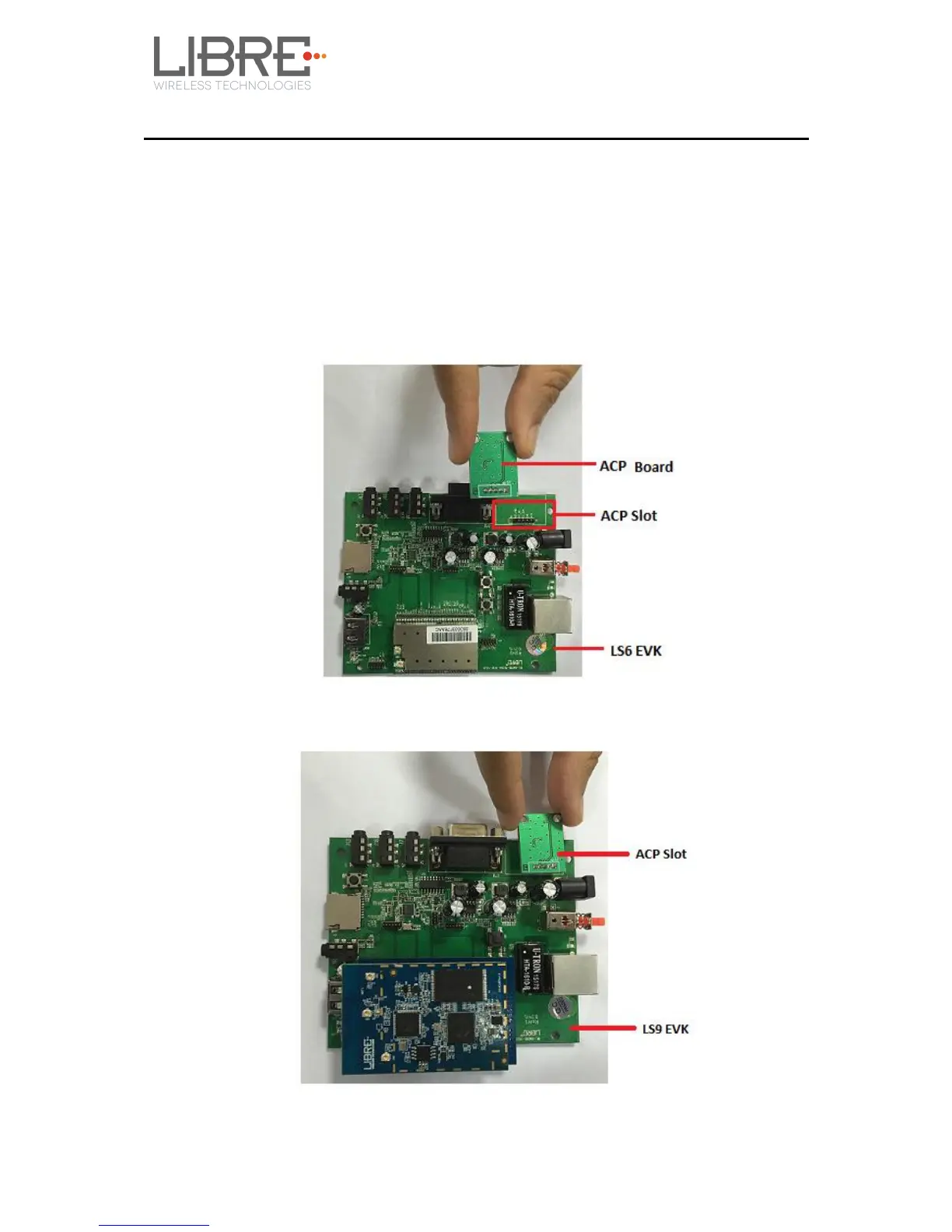

Step 1. To use the ACP board in LS6 EVK, remove the ACP board from the ACP
slot as shown below.
Step 2. Insert the ACP board onto the ACP slot in the LS9 EVK as shown below.
