Liebert HPS User Manual

pag. 28

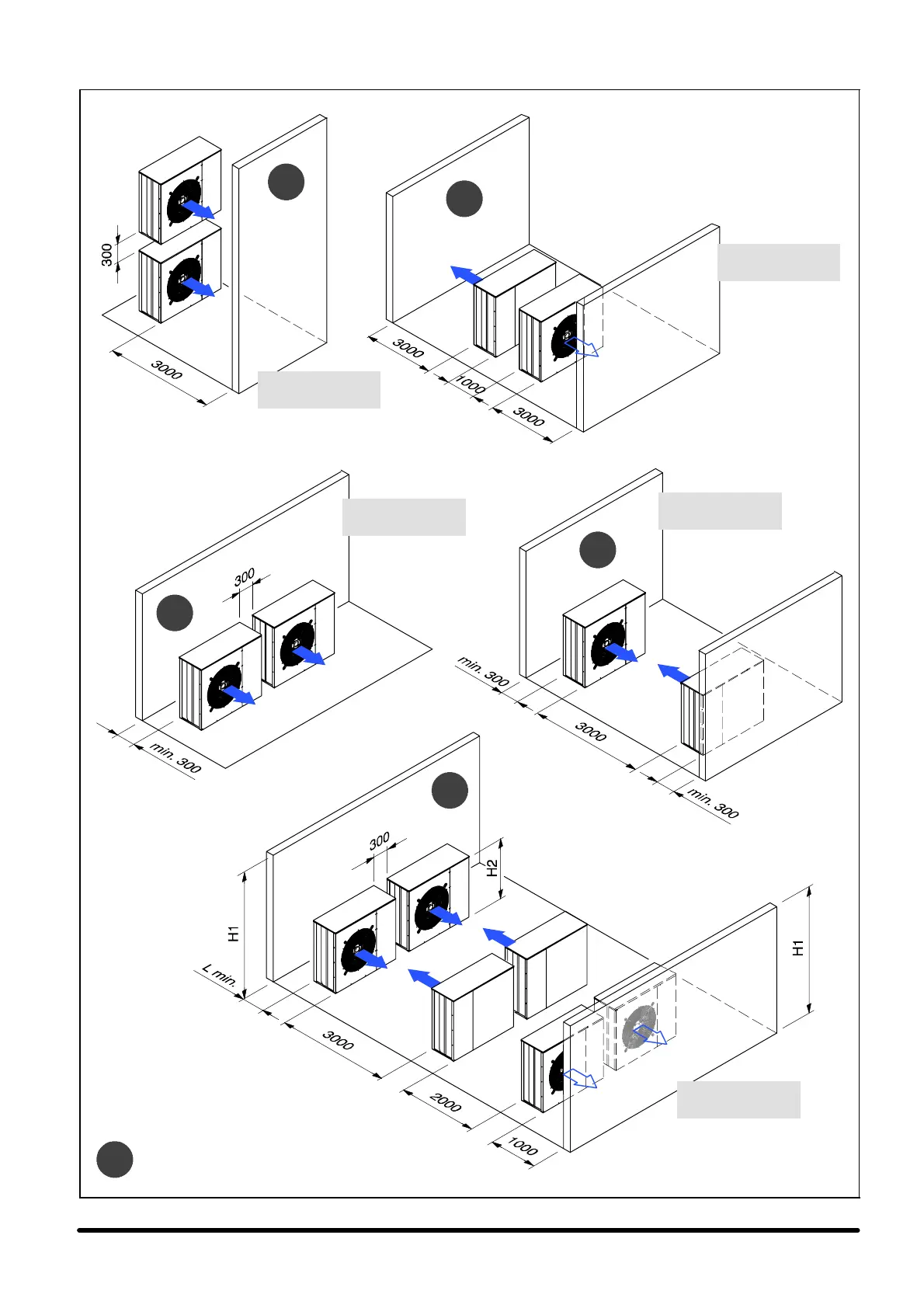

F i g . 4 --- S e r v i c e a r e a H P S C 0 6 --- 0 8 --- 1 0 --- 1 2 --- 1 4
1
3
4
5
2
If H1 < 0.5 x H2 ⇒ L min. = 500 mm.........
If 0.5 x H2 ≤ H1 ≤ H2 ⇒ L min. = 800 mm...
If H1 > H2 ⇒ Not allowable configuration..............
5
WALL IN FRONT
OF UNITS
WALL IN FRONT
OF UNITS
WALL BEHIND
UNITS
WALL BEHIND
UNITS
M U LT I --- R O W S
INSTALLATION
