Liebert HPS - Hpse + Hpsc 08-10-12-14

pag. 31
H P S C 0 8 --- 1 0 --- 1 2 --- 1 4 H P S E 0 8 --- 1 0 --- 1 2 --- 1 4

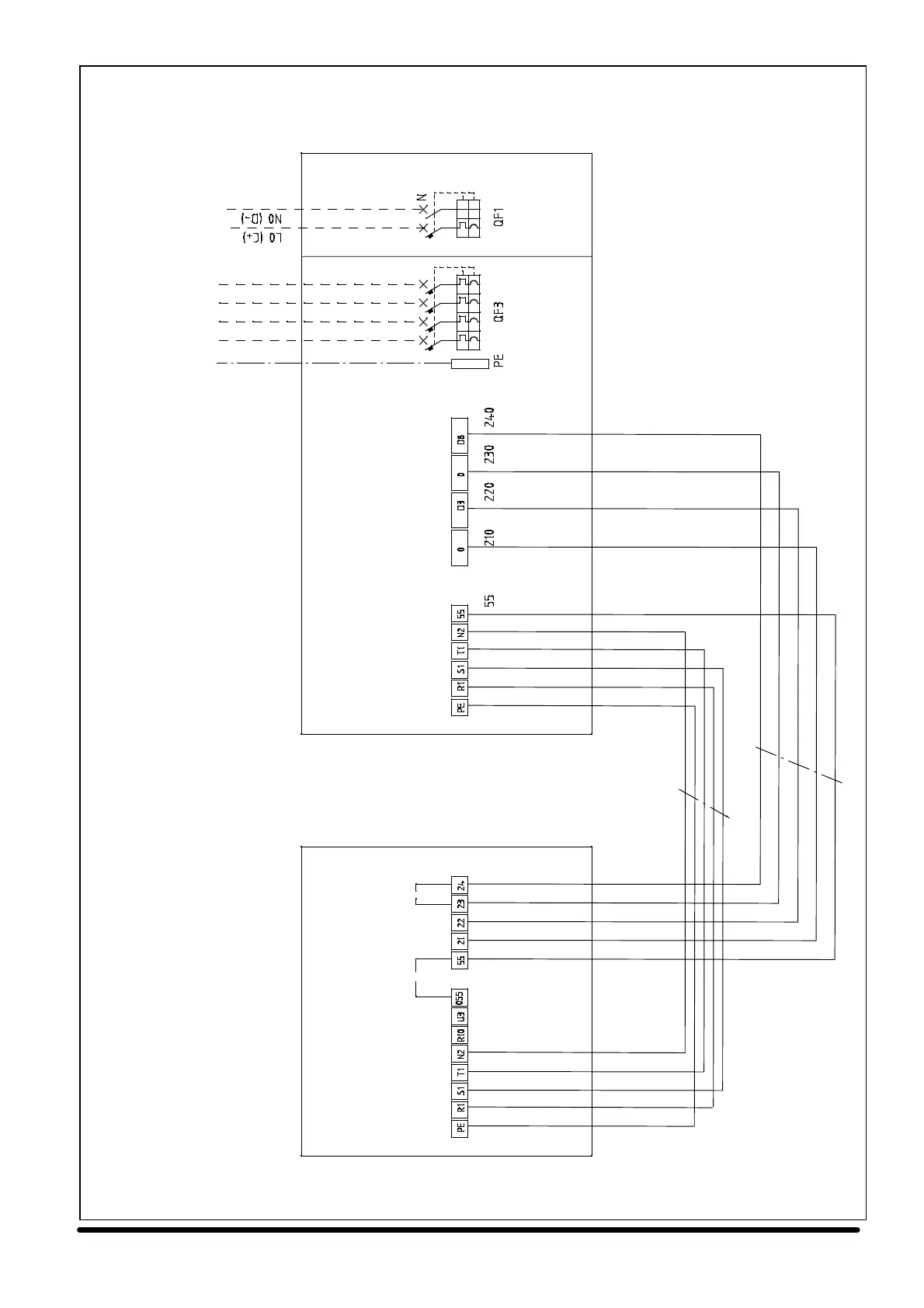

F i g . 6 b --- H P S E + H P S C 0 8 --- 1 0 --- 1 2 --- 1 4
(version with freecooling and EFC 230 Vac or EFC 48 Vdc)
optional
Terminal Powerface terminal
4x2.5mm
2
+ ground
5x1.5mm
2
400 V / N / 50 Hz
Emergency power supply
230 Vac / 50 Hz or
48 Vdc
HP LP
