Liebert HPS - HPS 06-08 (Hpscxx0) - Refrigerating Diagram

pag. 35

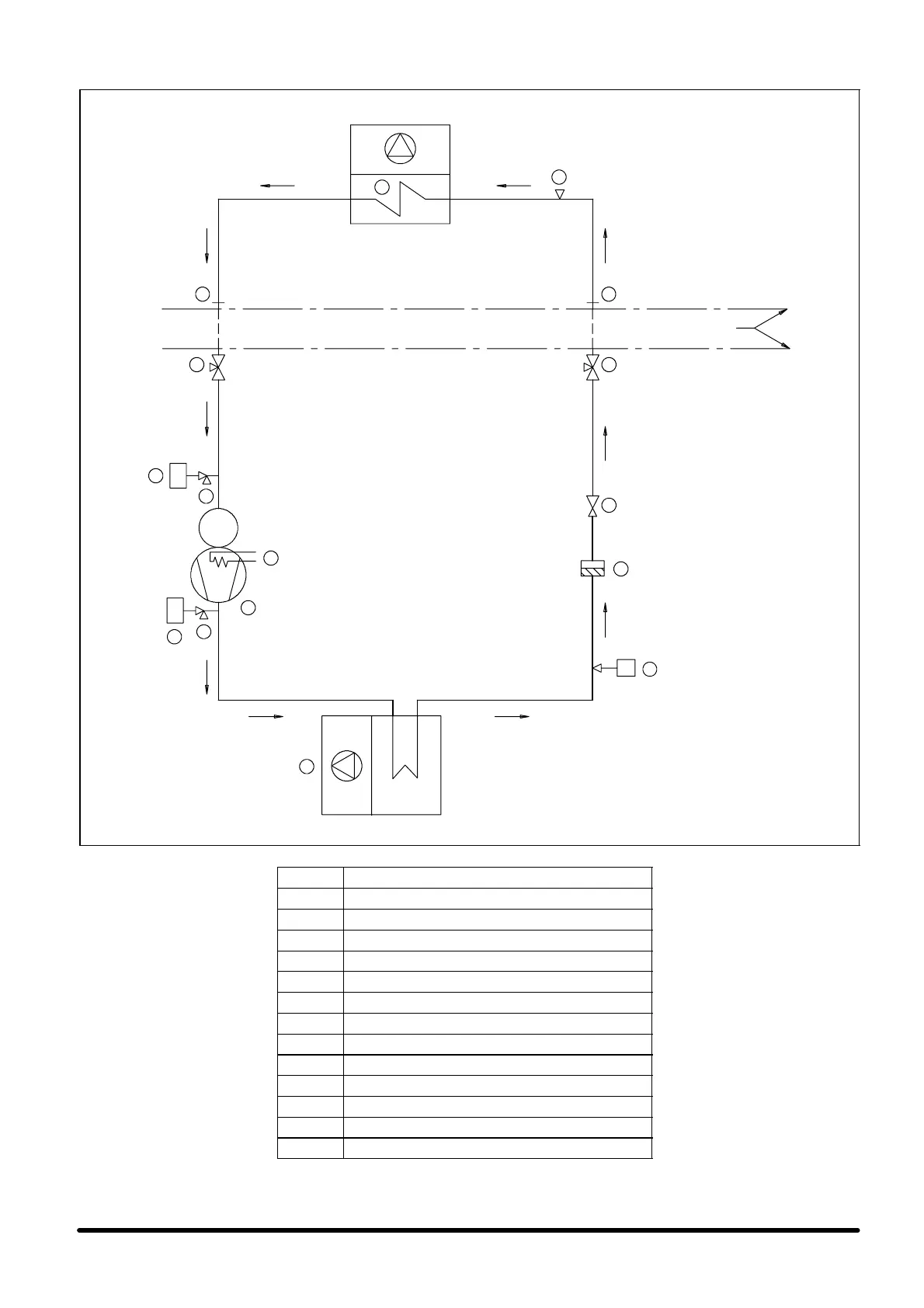

F i g . 9 --- H P S 0 6 --- 0 8 ( H P S C x x 0 ) --- R e f r i g e r a t i n g d i a g r a m
MC
2
1
3
44
6
6
7
11
12
55
12
10
HP
LP
Supplying
limit
Connection pipe
Internal
unit
External
unit
9
6
13
ITEM DESCRIPTION
1 Compressor
2 Crankcase heater
3 High pressure switch (HP)
4 Air cooled condenser
5 Weld joint
6 Access valve
7 Filter dryer
8 ---
9 Expansion capillary
10 Evaporator
11 Low pressure switch (LP)
12 Shut--- off valve
13 On --- Off fan pressure switch
