pag. 36

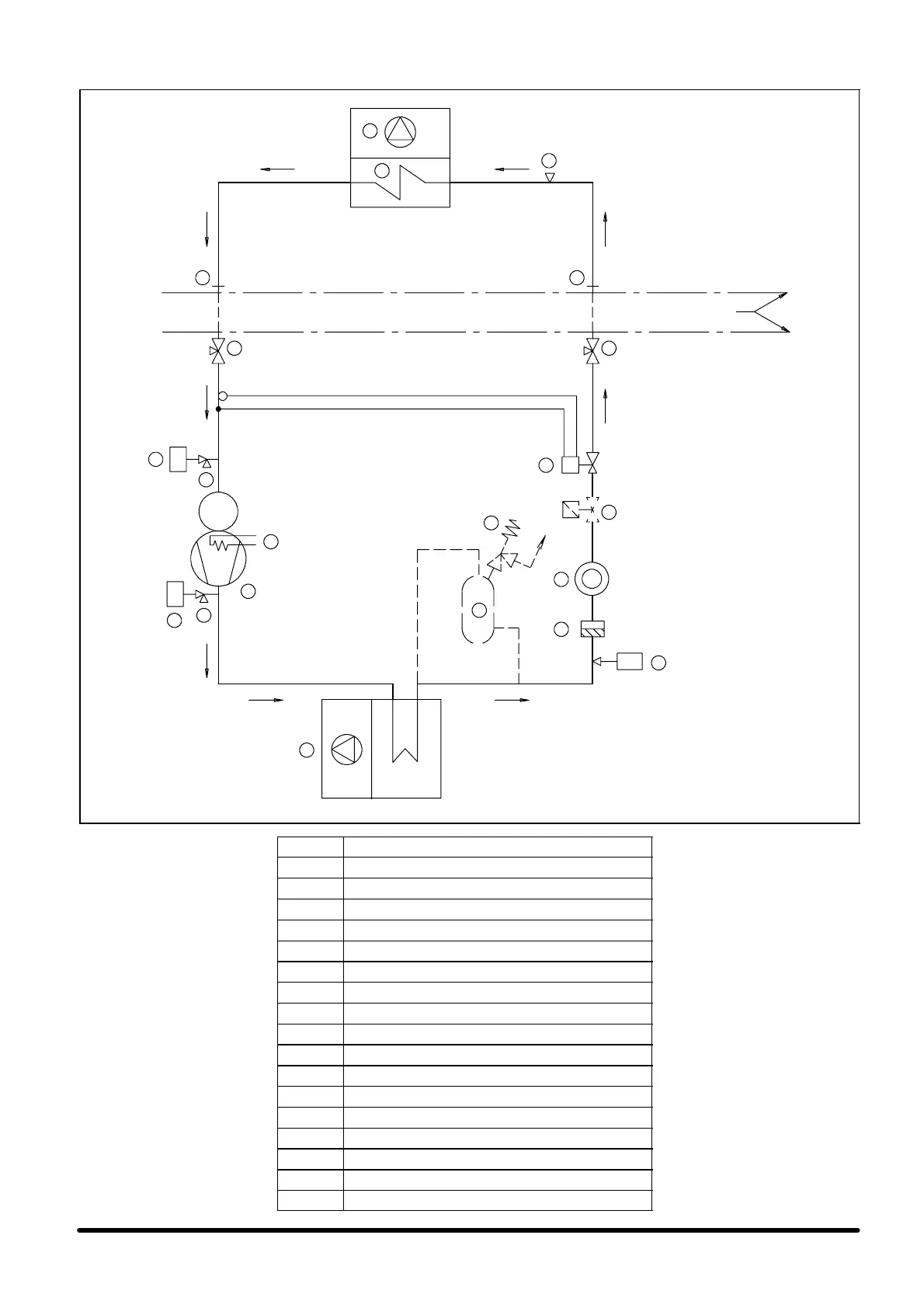

F i g . 1 0 --- H P S 0 6 --- 0 8 --- 1 0 --- 1 2 --- 1 4 ( H P S C x x A / L ) --- R e f r i g e r a t i n g d i a g r a m
FG
MC
2
1
3
44
6
6
8
9
10
12
13
55
13
11
HP
LP
Supplying
limit
Connection pipe
Internal
unit
External
unit
6
HPC
14
7
15
16
17
ITEM DESCRIPTION
1 Compressor
2 Crankcase heater
3 High pressure switch (HP)
4 Air cooled condenser
5 Weld joint
6 Access valve
7 Evaporator fan
8 Filter dryer
9 Sight glass (FG)
10 Thermostatic expansion valve
11 Evaporator
12 Low pressure switch (LP)
13 Shut--- off valve
14 Fan pressure switch control
15 Liquid receiver (Opt.--- ”L” Digit)
16 Safety valve (Opt.--- ”L” Digit)
17 Shut--- off solenoid valve (Opt.--- ”L” Digit)
