Liebert HPS - Evaporating Unit Ceiling Installation

pag. 23
F i g . 2 --- I n s t a l l a t i o n

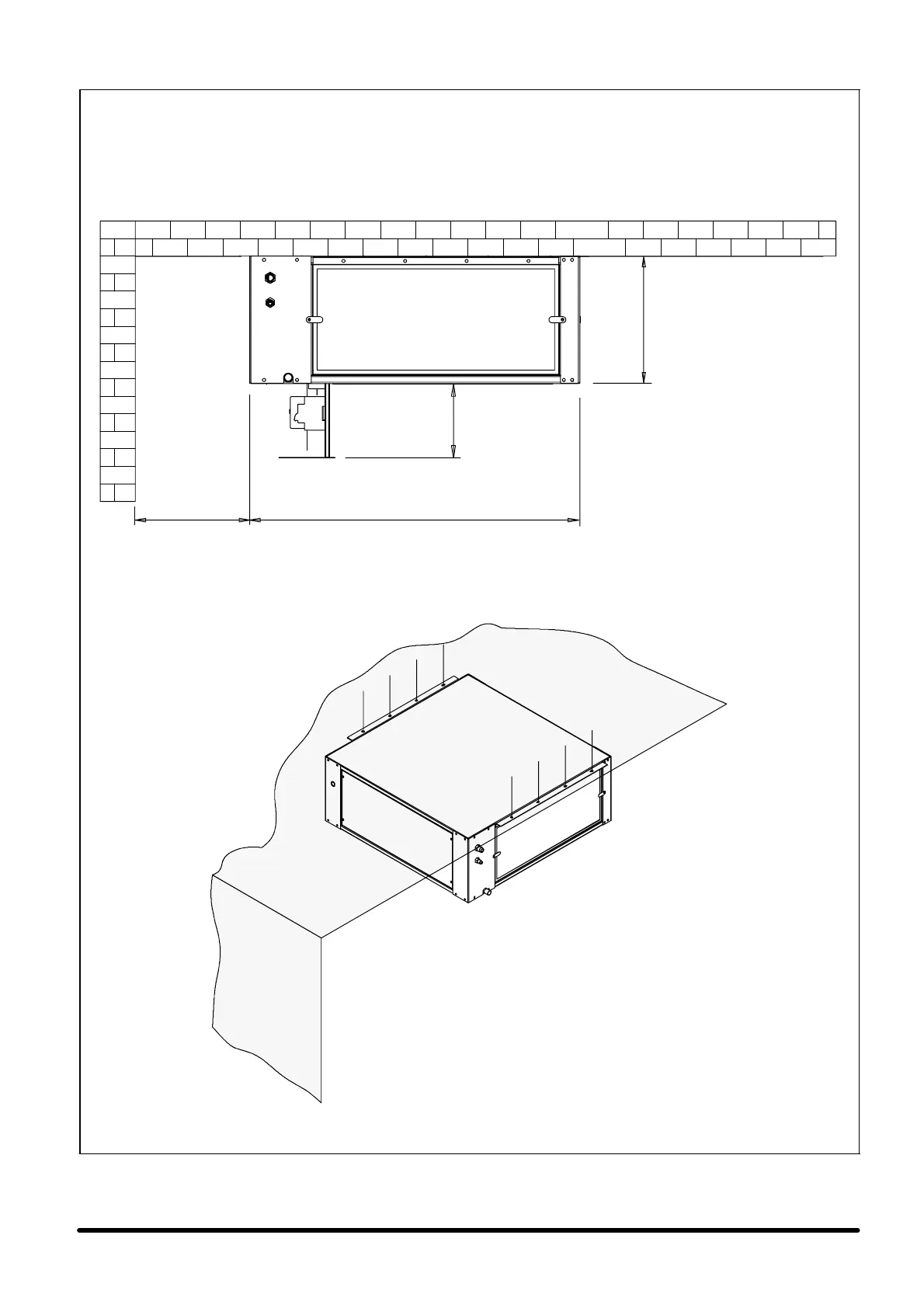

F i g . 2 a --- E v a p o r a t i n g u n i t c e i l i n g i n s t a l l a t i o n H P S E 0 6 --- 0 8 --- 1 0 --- 1 2 --- 1 4
(version without freecooling)
min. 200
min. 300
803 (HPSE 06--08--10)
Service area
for electical
board
903 (HPSE 12--14)
310 (HPSE 06--08--10)
375 (HPSE 12--14)
