Liebert HPS User Manual

pag. 32

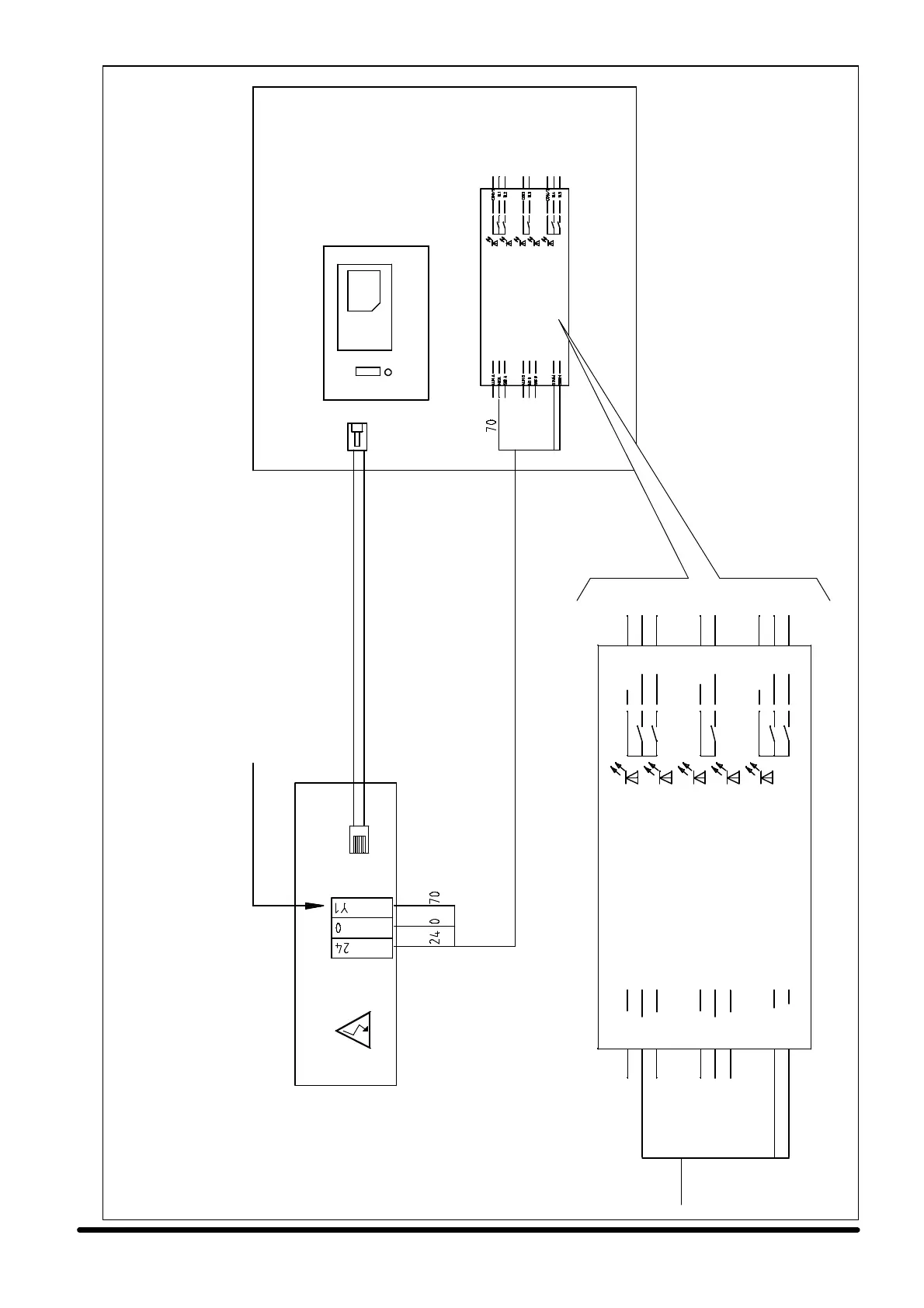

Fig. 7 --- Connections of the display and of the alarm board HPSE (optional)
F i g . 7 a --- H P S E 0 6 --- 0 8 --- 1 0 --- 1 2 --- 1 4
(version without freecooling or in version EFC 230 Vac)
Y1 on Powerface board
Electric board
Supplied with the alarm board only
Remote box
Remotable LCD display
Alarm board
Cable Hirobus 8 poles, screened
3x1.5mm
2
(24, 0, 70)
To Powerface To display
Alarm board
COM 1/2
RL 1 RL 2
COM 3
RL 3
COM 4/5
RL 4 RL 5
ALIM A
ING A
GND A
G24 (+)
ALIM B
ING B
GND B G N D ( --- )
70
