Liebert HPS User Manual

pag. 37

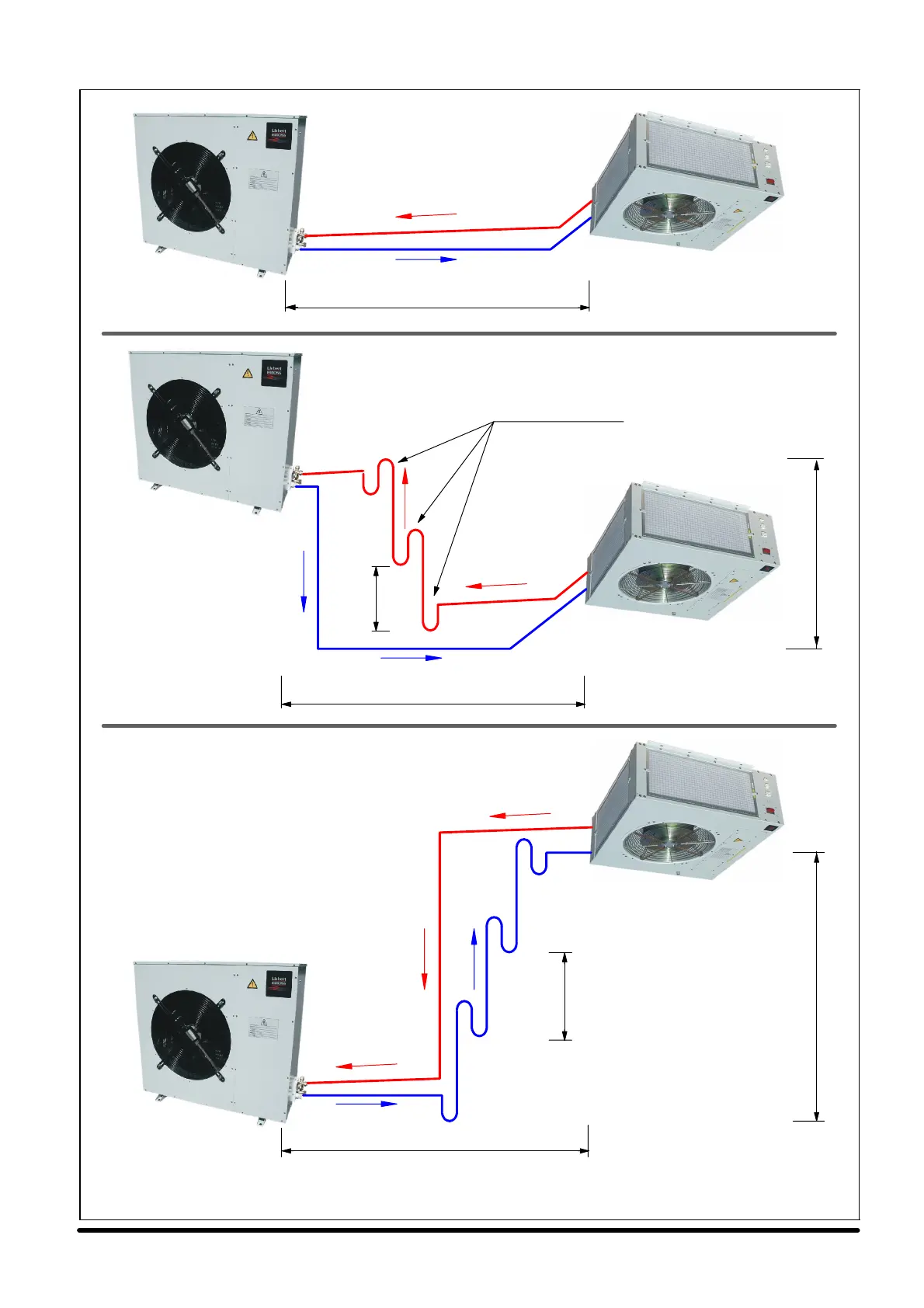

Fig. 11 --- Suggested refrigerant connections (HPSCxx0/A + HPSE)
HPSC
(External Unit)
HPSE
(Internal Unit)
Gas pipeline (Sloping 1%)
Liquid pipeline
10 m max. horizontal equivalent length
Gas pipeline
(Sloping 1%)
Liquid pipeline
Liquid pipeline
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
HPSC
(External Unit)
HPSE
(Internal Unit)
HPSC
(External Unit)
HPSE
(Internal Unit)
7 m max. horizontal equivalent length
A
1.5 m max. vertical
distance between
two syphons
5mmax.vertical
distance between
two syphons
3 m max. vertical distance
B
Syphons (obligatory)
NOTE:
Max. equivalent length for refrigerant line A + B =10m
