Liebert HPS User Manual

pag. 38

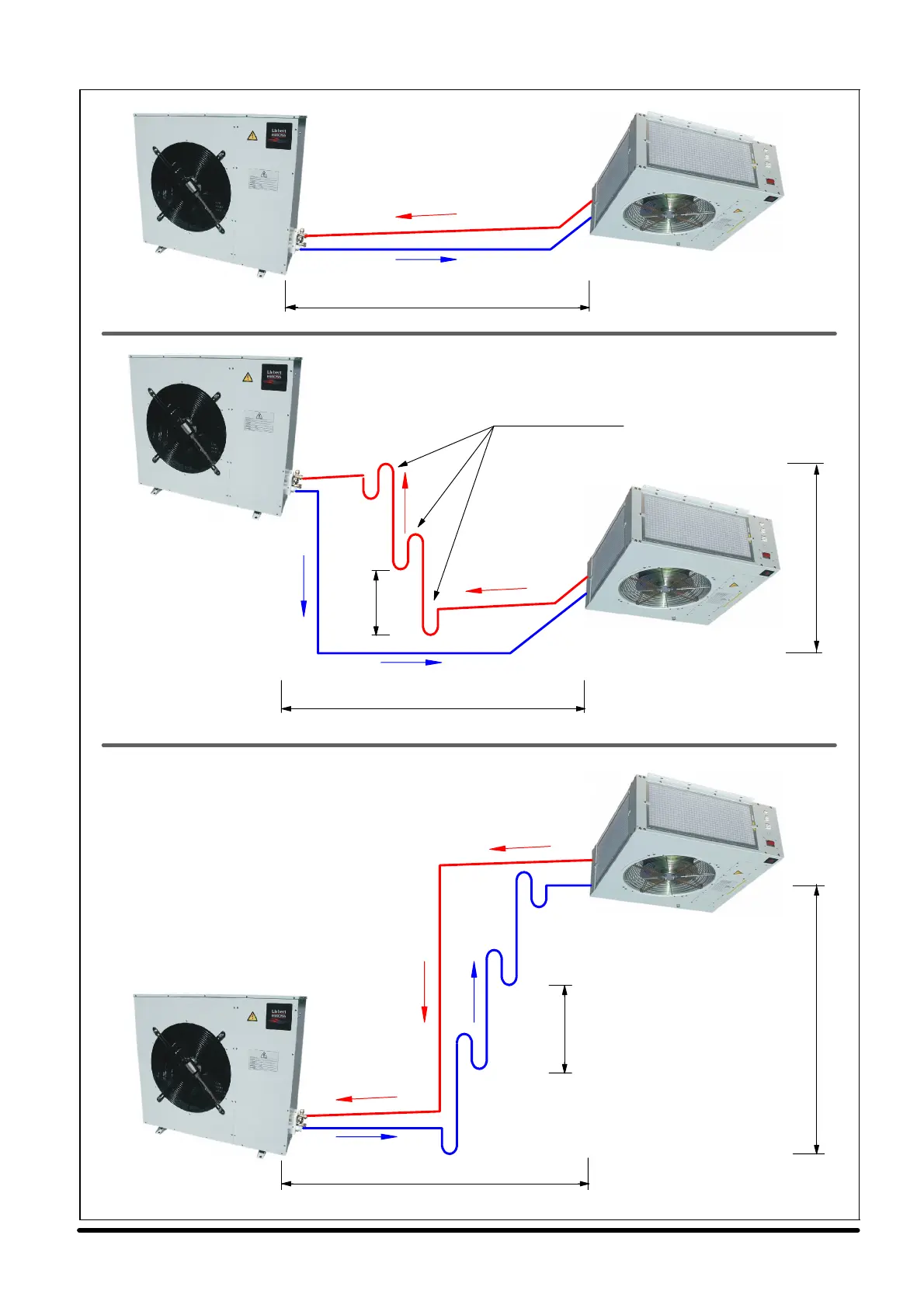

Fig. 12 --- Suggested refrigerant connections (HPSCxxL + HPSE)
HPSC
(External Unit)
HPSE
(Internal Unit)
Gas pipeline (Sloping 1%)
Liquid pipeline
50 m max. horizontal equivalent length
Gas pipeline
(Sloping 1%)
Liquid pipeline
Liquid pipeline
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
Gas pipeline
(Sloping 1%)
HPSC
(External Unit)
HPSE
(Internal Unit)
HPSC
(External Unit)
HPSE
(Internal Unit)
30 m max. horizontal equivalent length
30 m max. horizontal equivalent length
1.5 m max. vertical
distance between
two syphons
5mmax.vertical
distance between
two syphons
3 m max. vertical distance15 m max. vertical distance
Syphons (obligatory)

Liebert HPS Specifications

General

Brand	Liebert
Model	HPS
Category	Air Conditioner
Language	English
