pag. 24
HPSE A B C
06 min. 300 803 310
0 8 --- 1 0 --- 1 2 --- 1 4 min. 320 903 375
ITEM DESCRIPTION
1 Electrical box accessibility
2 Support for filter
3 Air filter
4 Freecooling filter accessibility
5 Electrical box

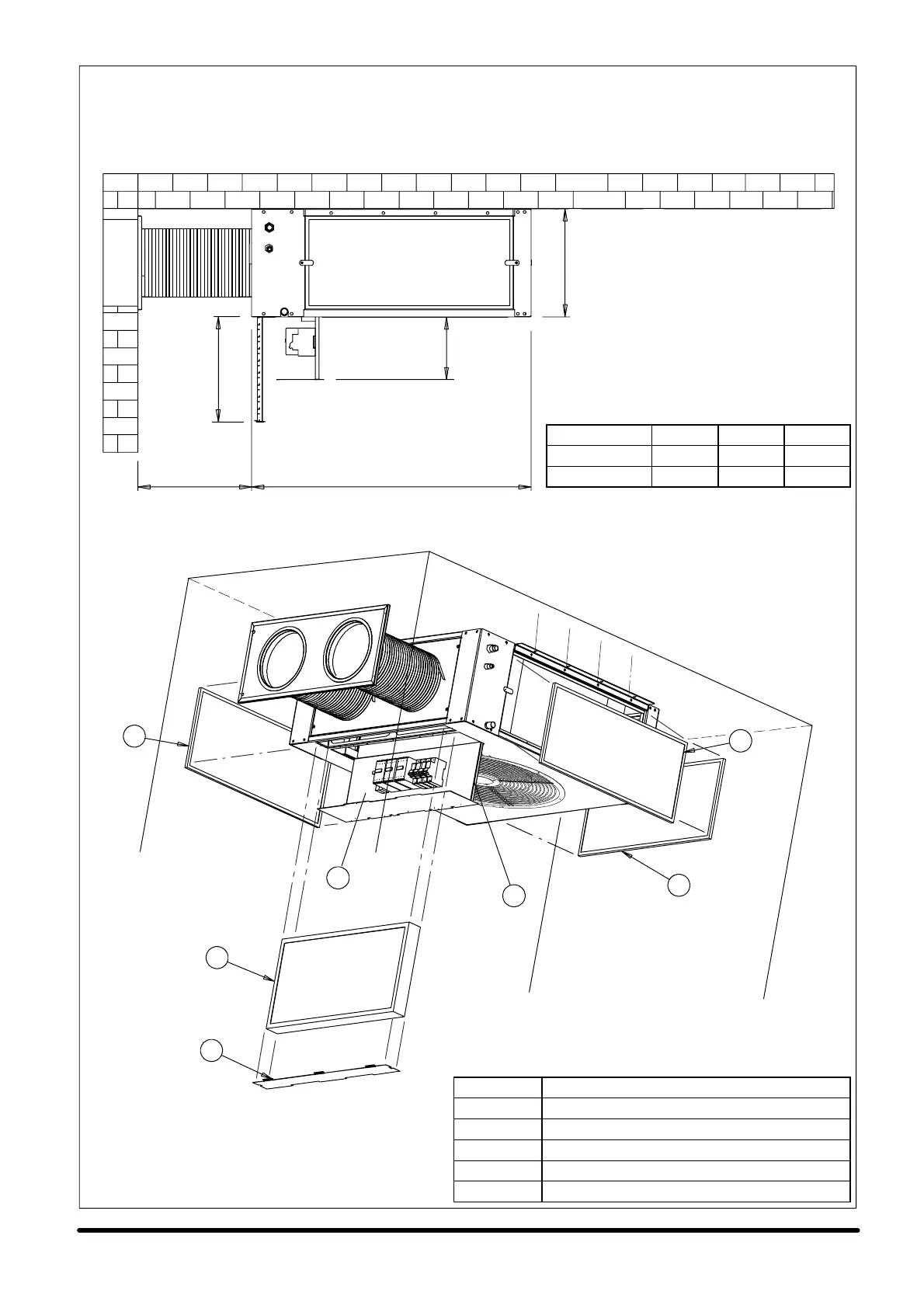

F i g . 2 b --- E v a p o r a t i n g u n i t i n s t a l l a t i o n H P S E 0 6 --- 0 8 --- 1 0 --- 1 2 --- 1 4
(version with freecooling)
1
2
3
4
3
3
5
min. 200
min. 300
Service area
for electical
board
Service area
for Freecooling
filter
A
B
C
