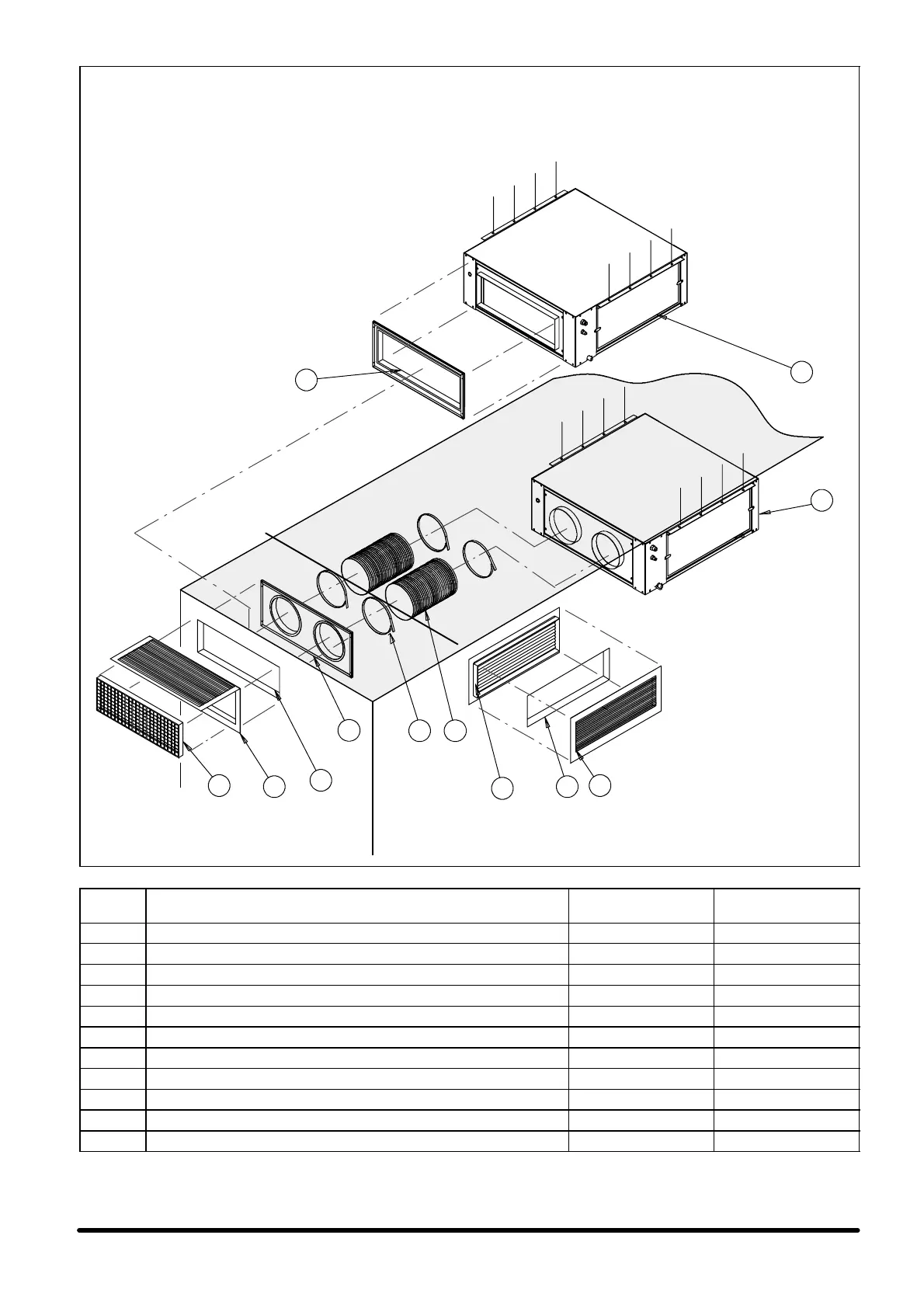

F i g . 2 c --- E v a p o r a t i n g u n i t c e i l i n g i n s t a l l a t i o n H P S E 0 6 --- 0 8 --- 1 0 --- 1 2 --- 1 4
(version with freecooling)
23
1
4
5
5
8
6
7
11
9
10
ITEM DESCRIPTION
CODE
HPSE 06
CODE
H P S E 0 8 --- 1 0 --- 1 2 --- 1 4
1 Wall plate for circular ducts 13503801 13536101
2 2 flexible ducts with fixing clamps, L = 0.5 m 270190 (Ø 202mm) 270191 (Ø 254mm)
3 Fixing clamps --- ---
4 Wall plate for rectangular duct 13501801 13536001
5 Circular / rectangular version --- ---
6 Wall hole 400 x 200mm 600 x 400mm
7 Overpressure damper 134948 134992
8 Grille for overpressure damper 270206 117832
9 Aluminium grille with metallic prefilter 270202 270219
10 Metallic prefilter (included in item 9) --- ---
11 Wall hole 550 x 210mm 590 x 230mm
To Next Page
