REV : 3
REV DATE : 2/17
DPN003005
Page :1 /1
UPFLOW MODELS
Form No.: DPN001040_REV4

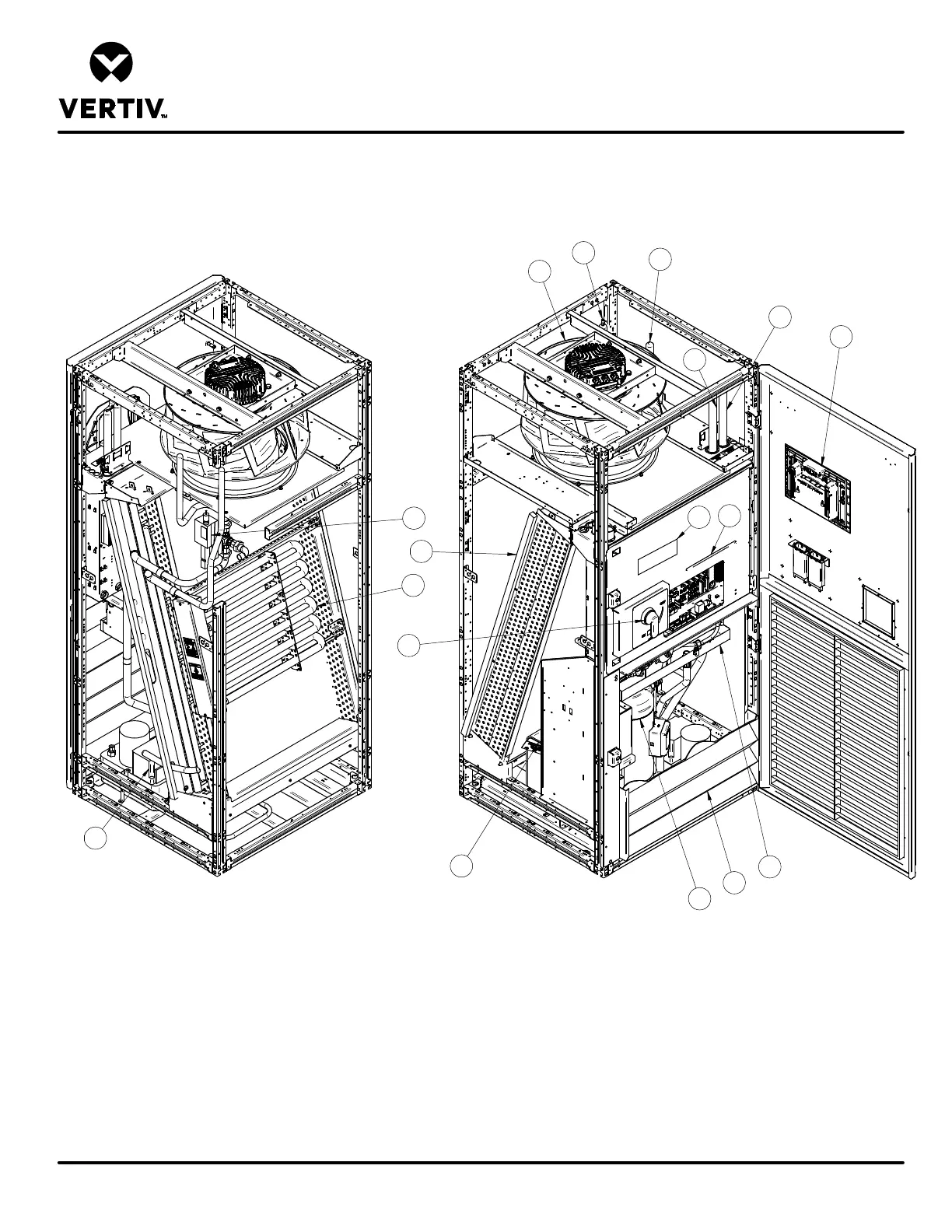

COMPONENT LOCATION DIAGRAM
LIEBERT PDX
1
2
3
4
5
6
7
8
9
10
11
12
FRONT VIEW
REAR VIEW
13
1 Liebert iCOM Control Display 10 Plate Condenser (optional)
2 Electric Box 11 Econ-O-Coil Valve - GLYCOOL/Dual Cooling (optional)
3 Filter (partial filter shown for clarity) 12 Condensate Pump (optional)
4 Evaporator Coil 13 Serial Tag
5 Compressor 14 Hot Gas Line (Air-cooled) or Return Connection (Water/Glycol/GLYCOOL™)
6 Infrared Humidifier (optional) 15 Liquid Line (Air-Cooled) or Return Connection (Water/Glycol)
7 Disconnect 16 Supply Connection (GLYCOOL™ / Econ-O-coil)
8 EC Fan 17 Return Connection (Econ-O-Coil)
9 Electric Reheat (optional) 18 Steam Gen Humidifier (option not shown, located above Condensate Pump)
16
17
15
14
