A2.3 Wiring the NS2
1.3.8 NetLink Power Connection
In an AC system, power to the Netlink board MUST be supplied by an NS2 board, which is sold separately. The NS2 board
converts the AC power from the low voltage transformer to DC voltage for powering the Netlink board. (Figure A2.2)
Use the cable with the three pin connector at one end and two faston connectors at the other end to make the connection.
The three-pin connector plugs into the "+12-" connector (J1) on the NS2 board. The female fastons at the other end of the
cable plug into the INPUT (V+ & V-) male fastons on the Netlink board. (Figure A2.2)
1.3.8 Connecting the ADC (Voltmeter) Input
When using an NS2 board with the Netlink, connect one end of the ADC cable to the Netlink's ADC input and the other end of the
ADC cable to the ADC1/ADC2 connector on the NS2 board.
1.3.8 Wiring the Control Outputs
When using an NS2 board with the Netlink, connect one end of the Control Output cable to the Netlink's control output and
the other end of the Control output cable to the NS2's Control Input (J9).
Input
V V
+
B1-1
J9
B2-1
B1-2
B2-2
BR1
BR2
SB1-1
SB2-1
SB1-2
SB2-2
SBR1
SBR2
120VAC
RESETTABLE POWER
0UTPUT
NS2
TRANSFORMER
+
Netlink

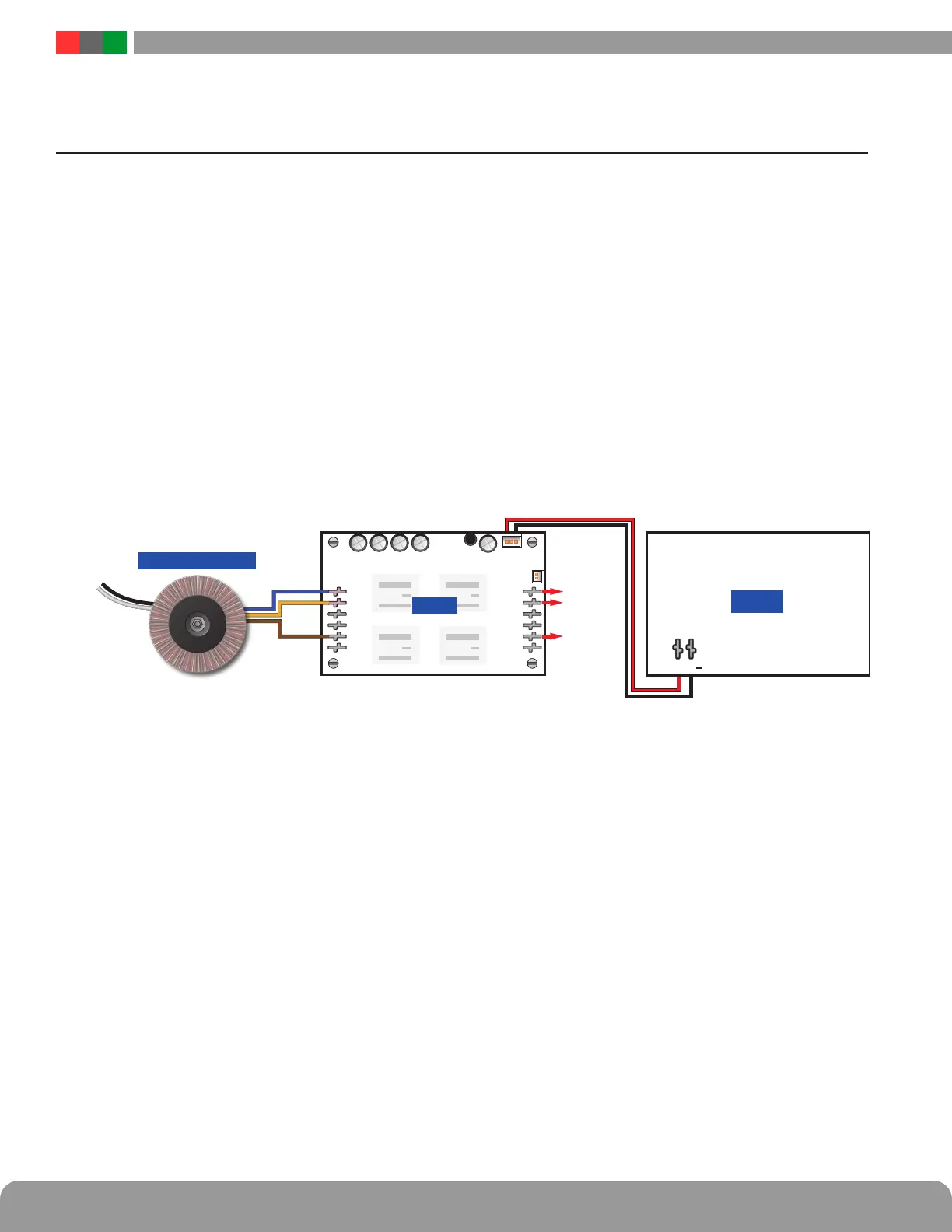

Figure A2.2 - Powering a Netlink in an AC System using an NS2 board
