Lifetime 51544 - Page 33

33

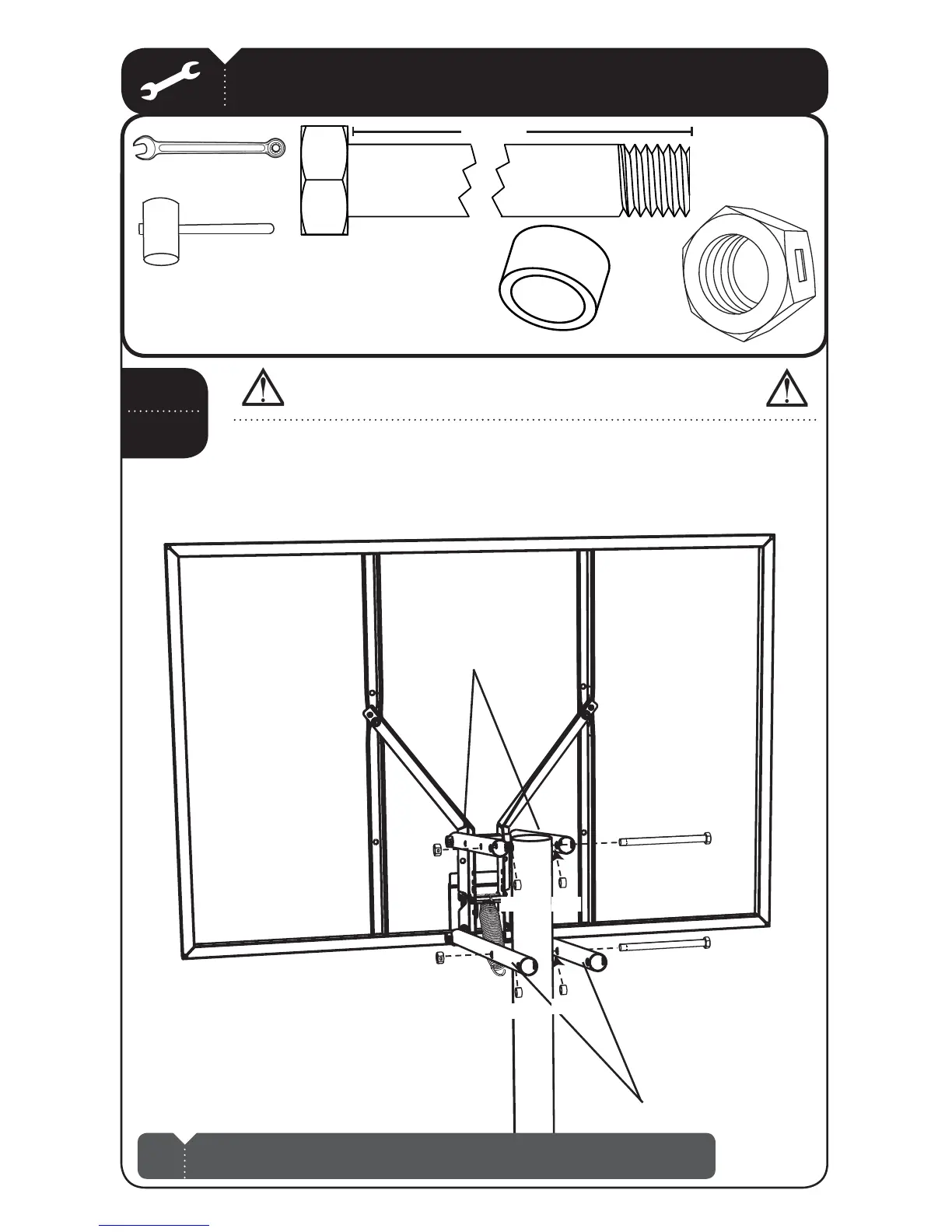

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
,AYTHE"ACKBOARDAND2IMASSEMBLYONTHEGROUNDNEXTTOTHE
Pole assembly. Rest the Rim on cardboard to prevent scratching.
Then secure the Short and Long Extension Arms (AKC & AKB) to the Pole
Assembly with the hardware shown.
SEC
4.4
CAUTION: HAVE ONE ADULT HOLD THE BACKBOARD IN PLACE
UNTIL ASSEMBLY HAS BEEN COMPLETED!
3/4” (x2)
AAX (x2)
ABP (x4)
6 5/8”
(Not actual length)
!$' (x2)
AAX
AAX
ABP ABP
!$'
!$'
AKC
AKB
ABP
ABP
Note: Tighten the 1/2” Centerlock Nut (AAX) until it is fl ush with the end of the Bolt.
!
