Lifetime 51544 - Page 37

37
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
AQH (x1)
SEC
5.3

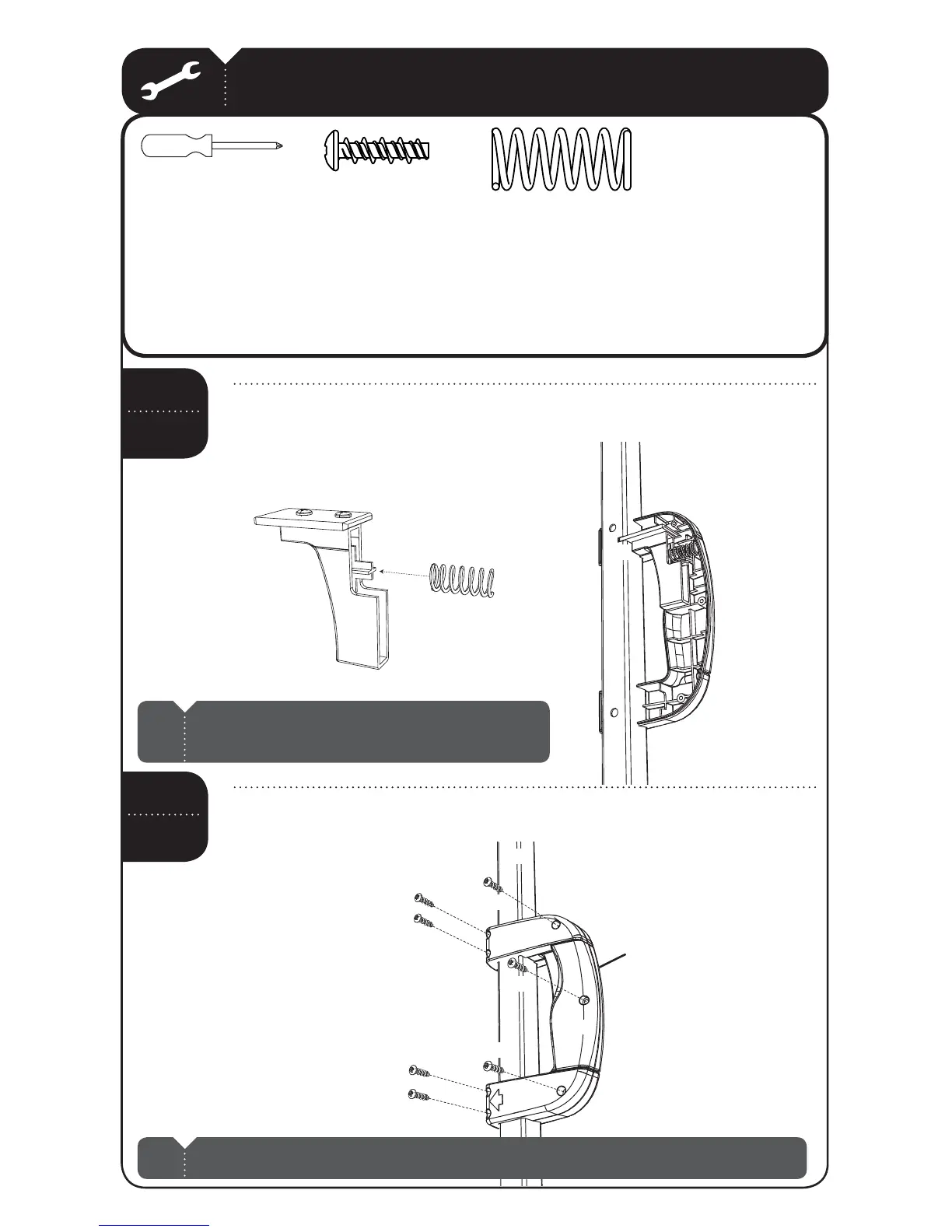

Place the Trigger Spring (AQH) onto the Trigger (AMN) as shown. Then place
the Trigger inside the Right Handle (AKN) so that the ,OCK4AB!1' fi ts into the
slot on the Outer Tube (ALB) as shown.
SEC
5.4
Place the Left Handle (AKL) over the Right Handle (AKN) as shown, and
attach the Handles to the Outer Tube (ALB) with the hardware shown.
Note: Pull the Trigger to ensure it moves correctly
before attaching the Left Handle (AKL).
!
AQH
AMN
!1'
AKN
ALB
Note: To prevent stripping the holes in the Handles, do not overtighten the #6 x 5/8” Screws (ADT).
!
ADT (x7)
AKL
ALB
ADT
ADT
ADT
ADT
ADT
AKN
