2. Product Overview
2.3. VINX-120AP-HDMI-ENC

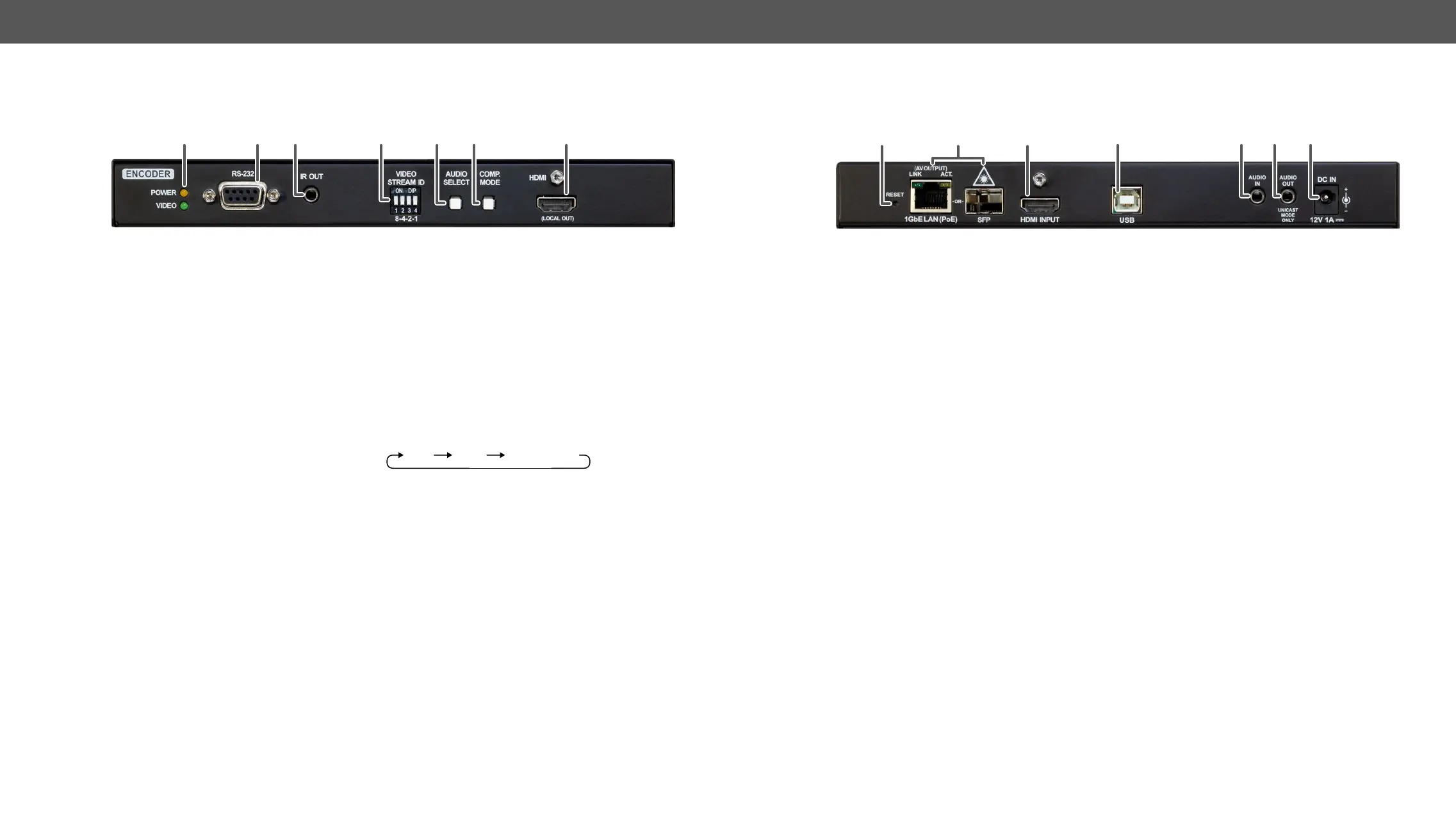

Front View
1 2 3 74 5 6
1
Status LEDs See the section.
2
RS-232 Port
or point-to-multi point).
3
IR Output Port
4
DIP Switch
5
Audio Select button Press the button to toggle between the following modes:
6
Compression Mode
Button
Short press: switching between the Video and Graphics modes.
Long press (more, than 10 seconds): reset to factory default settings.
7
HDMI Output For a local sink device (mirrored from the AV output).
Rear View
1 5 6 7
2 3 4
1
Reset Button Reboots the device.
2
AV Input Ports
Please note that SFP module is not supplied
with the device.
3
HDMI Input Port Video port for DVI or HDMI signal.
4
USB Port B-Type connector for USB pass-through application (e.g. for connecting
the Encoder to a computer).
5
Audio Input Port For unbalanced analog audio signal.
6
Audio Output Port Presenting the audio signal coming from the Audio input port of the
connected Encoder. This feature is available only in Unicast mode and if
the Analog audio input is selected as an audio source on the Encoder.
7
DC 12V Input 12V DC input for local power supply.
