Mounting instructions (Example CO65 with LA40)

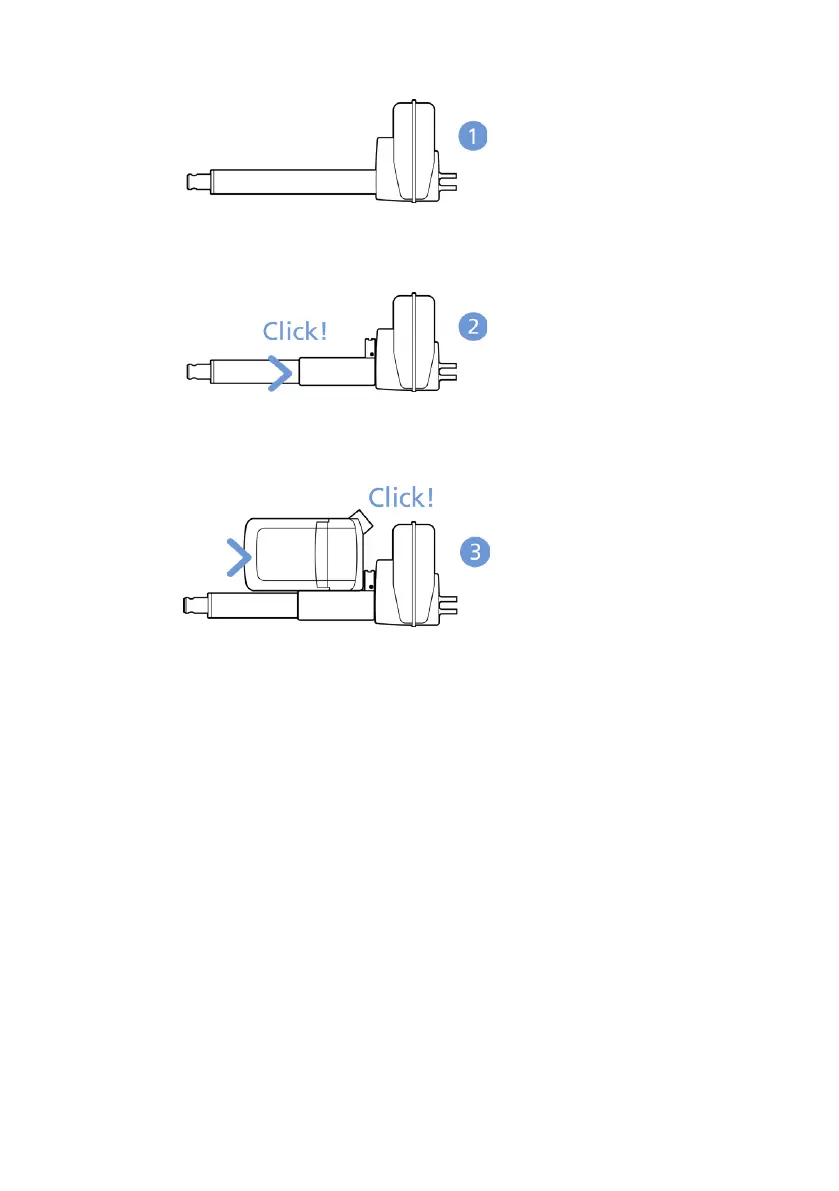

When mounting the control box onto the actuator (1)
Simply slide on the bracket until you hear a clear click (2)
Slide on the control box until you hear a click and the box is mounted (3)
It is recommended that the CO65 is mounted in a position that allows water to escape.
Recommended torque: 0.6 Nm +/-0.1
The bracket can be mounted to the bed frame or any other application by following one of the following mounting procedures:
1) M6 nut to be placed in bracket and fixed with M6 bolt from the rear side.
2) M5 machine screw with flat washer to be fixed through bracket with nut on the rear side.
3) Self-tapping screw to be placed through bracket and onto the frame.
