Page 147 of 192
The DPH is a small two button panel for adjustment of different functions. The DPH fits into a MJB with a modular plug and thereby compatible
with OpenBus
TM
.
Usage:
• Ambient temperature: +5 °C to +40 °C
• DPH is compatible with the OpenBox control boxes via Modular Junction Boxes MJB5061101-00 as follows:
Control Boxes: CB6S OBL, CB6S OBM, CB6S OBF, CB16 OBL, CB16 OBF, CB20
Modular Junction Box: MJB5061101-00
• DPH1K10-210007 combined with MJB5061101-00 creates the OpenBus
TM
codes:
Up Arrow: H0
Down Arrow: H1
• Wrong mounting is not an issue with the MJB5061101-00 and the modular jack plug of the DPH cable.
The plug will only fit into the correct ports of the MJB.
9. DPH Medical (MEDLINE
®
CARELINE
®
)
Recommendations
• The application manufacturer must insure a proper installation of the FPP in the application. The installation must be convenient for the end-user.
• To ensure proper activation, the lock above the housing must be properly locked by turning it clockwise.
• The application manufacturer must ensure the correct torque to the slotted set screw at the bracket, to ensure a stable positioning of the FPP.
• The application manufacturer must consider the bracket location for the FPP: If the FPP is mounted at a moveable part, it will move and might
touch the patient or parts of the application. If mounted at a fixed part, the patient might move out of range to reach the FPP or he might even be
hit by the FPP.
• The end-user must not apply a torque to the FPP housing exceeding 8 Nm between the flexible arm and the panel.
• The end-user must not bend the FPP arm to a radius smaller than 105 mm.
• The FPP must not be useed as a handle at any time when moving the application.
• The end-user must be informed that the FPP must not be used for other purposes (e.g. table, handle) than intended, i.e. as a Flexible Patient Panel (FPP).
• The end-user must ensure the FPP does not hit items or persons when the application is moved.
The FPP is for use with a variety of different bed types and is therefore compatible with control boxes that use
an OpenBus™ interface i.e. CB6S, CB16 and CB20.
Usage:
• Ambient temperature: +5 °C to +40 °C
• Approvals: LINAK and UL International DEMKO A/S are currently in the process of certifying
FPP re. UL60601 and EN60601-1.
• Current consumption: 15 mA (Standard versions with 5 no. LED’s (5 LED’s x 2 mA = 10 mA) +
microprocessor 5 mA, total = 15 mA

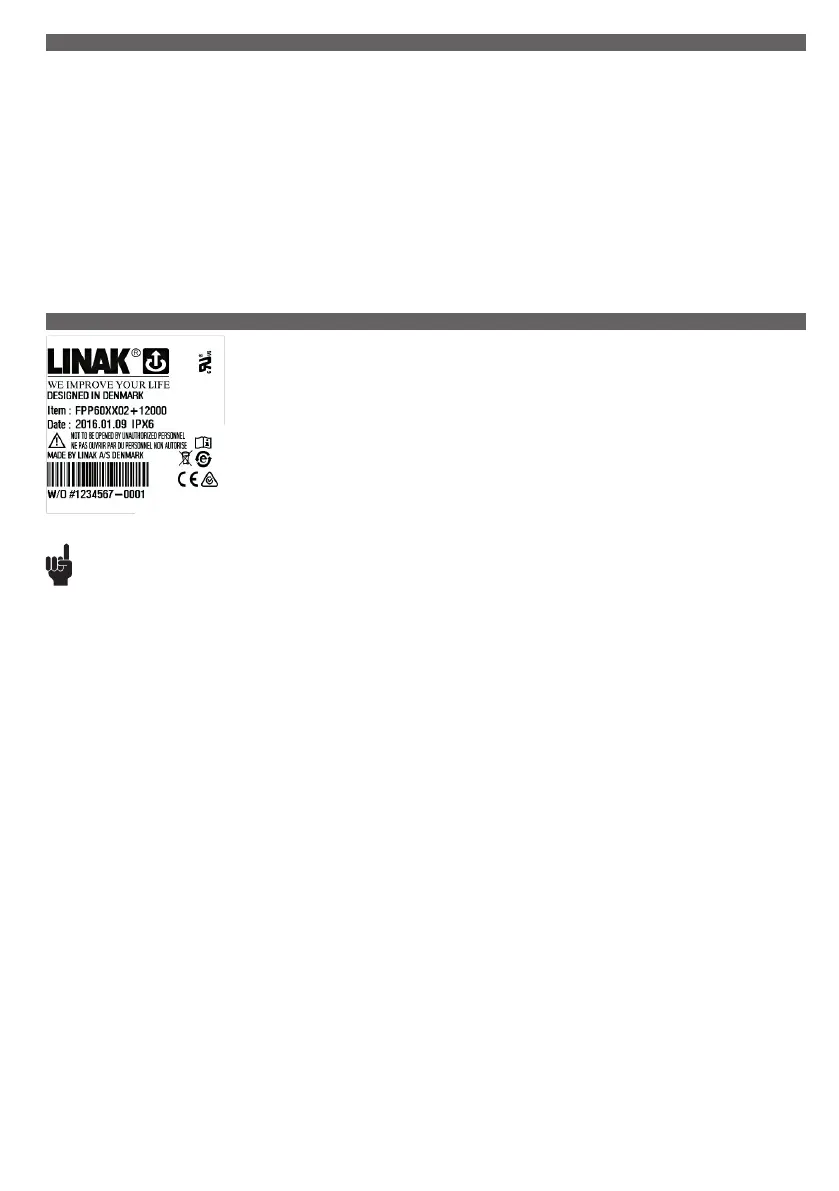

10. FPP (MEDLINE
®
CARELINE
®
)
Mounting instructions:
The FPP is intended for mounting at the head end of a bed so the patient is able to see and operate it with an easy push of a button. After use it can
be moved a short distance away with an easy movement.
The FPP comes with a cable attached. The bottom part of the arm is prepared for mounting inside a bracket - fitting the diameter of the arm.
The bracket is not supplied by LINAK but must be designed and made by the customer. It must fit the dimensions shown. A suggestion to a design is
illustrated on below pictures as well as the dimensions of the parts for fixation.
