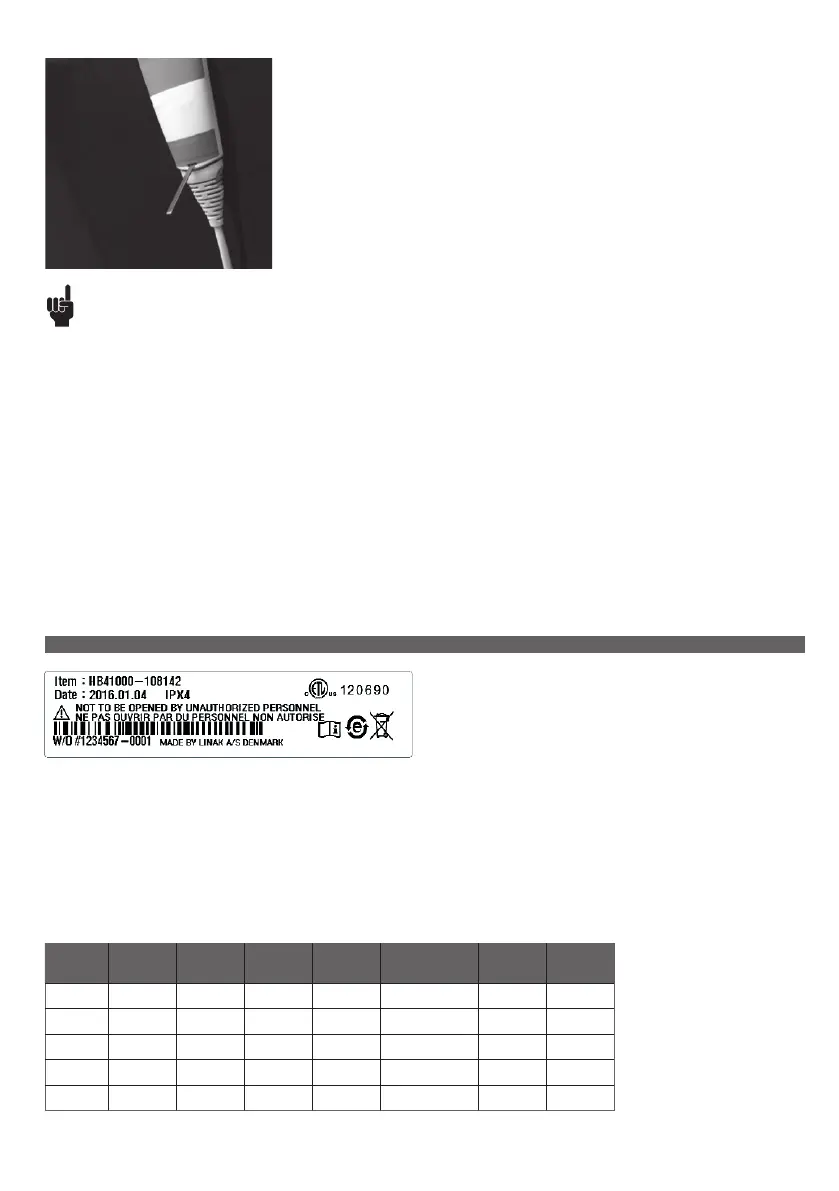

Step 1:
Release the cable by pushing e.g. a
screwdriver into the hole on the back
of the hand control. Twist and release.
How to remove a cable:
Recommendations
• Please ensure that you use the right cable type to ensure the wished functionality. In case of lack of functionality of your hand control, check that
the hand control cable is the right one for the intended control box or contact your local LINAK representative.
• Please note that HB3X0L0 version (analogue with diode) is not supported by the CBJC. The diode will light up at all times if used with the CBJC.
• Do not submerge the hand control under water.
• Unless otherwise specified or agreed with LINAK, the hand control is only intended to be used on LINAK systems.
• Do not sit or lie down on the hand control. It can cause unintended movement of the application.
• When changing hand controls for OpenBus
TM
systems, the power must be switched off.
• The force of the magnet depends on the thickness and the type of the lacquering, stickers, steel thickness etc.
It is the responsibility of the customer to verify that the holding force on the application is acceptable.
• For hand controls with magnets it is the responsibility of the user/operator to evaluate any possible risk caused by use of permanent magnets.
• For hand controls with magnets it is recommended to have a parking place for the hand control on the application, where the customer ensures
that the hand control does not fall off.
Usage:
• Ambient temperature: +5 ºC to +40 °C
• HB40 is compatible with CB8-T, CB9..AX(not CH.4) and CB12 (not CH.4)
• HB40A is compatible with CB8-A battery version. Fitted with plug for battery charger CH01.
• HB40E is compatible with CB9Px (except CB9..PM/PN) and CB14
• HB44H is only compatible with CB9..Ax and CB12 (if CH.4) 4 channels
• HB40T is only compatible with CB7 (max. 2 channels)
The HB40 series hand controls are designed for use with LINAK control
boxes.
These sturdy compact units are ergonomically designed and ideal for a
vast range of applications from patient care beds and office furniture to
industrial and agricultural duties.
* only for channels 1, 2 and 3
CB7 CB8 CB8A CB9..Ax CB9..Px
(not CB9..PM/PN
CB12 CB14
HB4xO x x* x
HB4xA x
HB4xE x x
HB4xH x (4ch.) x (4ch.)
HB4xT x
Compatibility:
16. HB40 (MEDLINE
®
CARELINE
®
TECHLINE
®
)
