Total cycles done on channel 1
Total work done on channel 1
Total number of overloads (channel 1)
Days since last service/Days between services
If “No days” are chosen for service interval then the display will show Days since last service /-.
Special care should be taken when mounting the CBJ Care.
As long as the the CBJ Care is mounted correctly then the CBJ Care complies to IPX4. If the CBJ Care is mounted incorrectly then water will
gather around the screw holes resulting in non-compliance with IPX4!
If the control box is equipped with emergency stop, the stop button must be activated in cleaning situations in order to comply with IPX4.
The battery pack BAJ1 or BAJL must NOT be removed in cleaning situations, doing so could result in non-compliance with IPX4.
If the CBJ Care is fitted with external charger option (DC power connector), the protection plug ex. 00918174 must always be inserted to
ensure IP protection, if the port is not used.
IP rating only applies when the battery is connected to the control box.
Mounting of CBJ Care
Overload Channel 1 only:
When overload occurs (according to the pre- defined current cut off limit) the overload symbol will be shown on the
display. The ‘MAX’ text will blink 3 times and the overload symbol will be shown for 10 seconds in total.

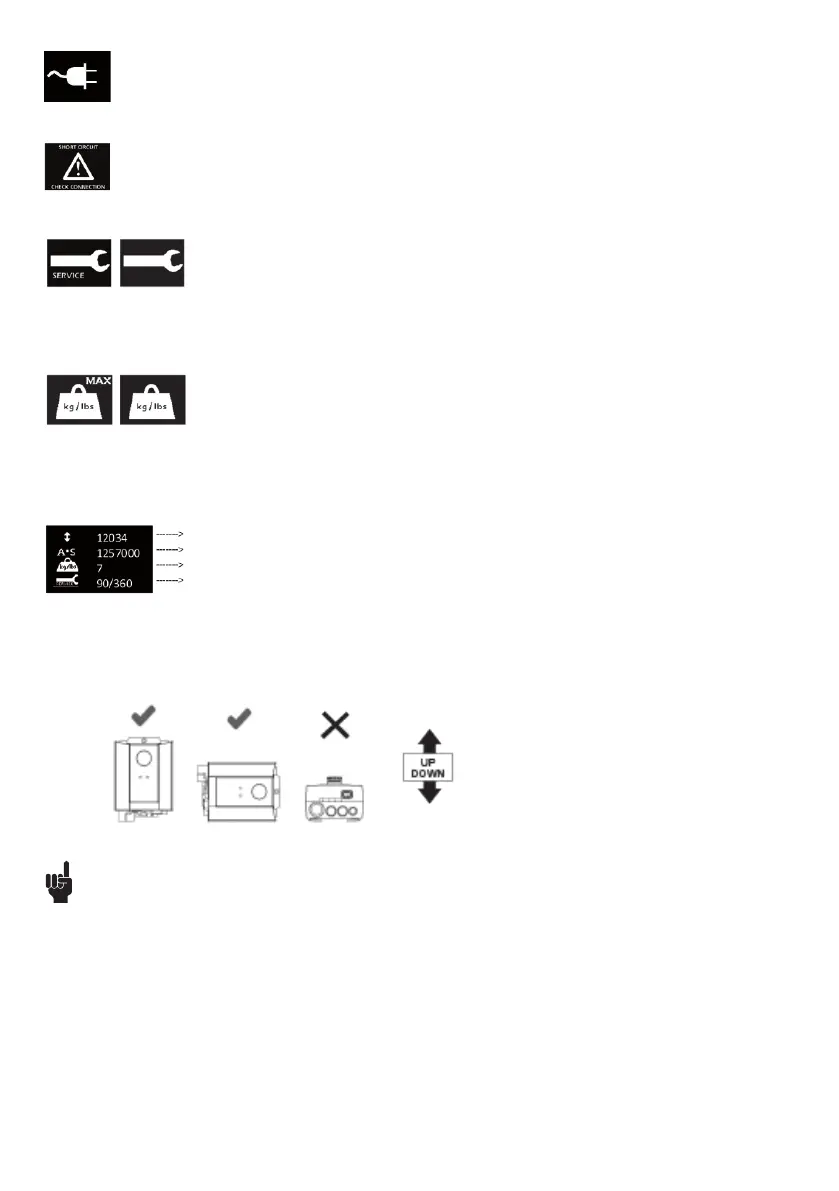

Service information read-out
Basic service information can be read out on the display. To get the service information on the display please press the lifting arm up button
(only ½ second press). The information will be shown for ½ minute or until other buttons are activated.
Service:
The control box will show the service symbol when it is time for service. The standard setting is after 12 months / 8000
cycles. After each power down, the first time that the service symbol is shown the control box will provide an audio
sound (100 milli seconds) so that the user gets a reminder about checking the display.
The ‘SERVICE’ text will blink 3 times, then a static service symbol will be shown (10 seconds in total). Even though it is time for service the system will
still be functional and work as normal.
Short circuit:
If there is a short circuit the control box will show the short circuit symbol with a recommendation to check the connections.
The symbol will be shown until the short circuit has been repaired.
Charging of battery:
When the mains cable is plugged in and a control button is activated the symbol to the left is shown on the display until power down
2 minutes later. The purpose of the symbol is to tell the user that it is not possible to use the lift when it is plugged in to the mains.
