Mounting of cables and cable lock:
The QLCI2 have a uniquely designed cable lid. The lid also works as an integrated cable lock when closed.

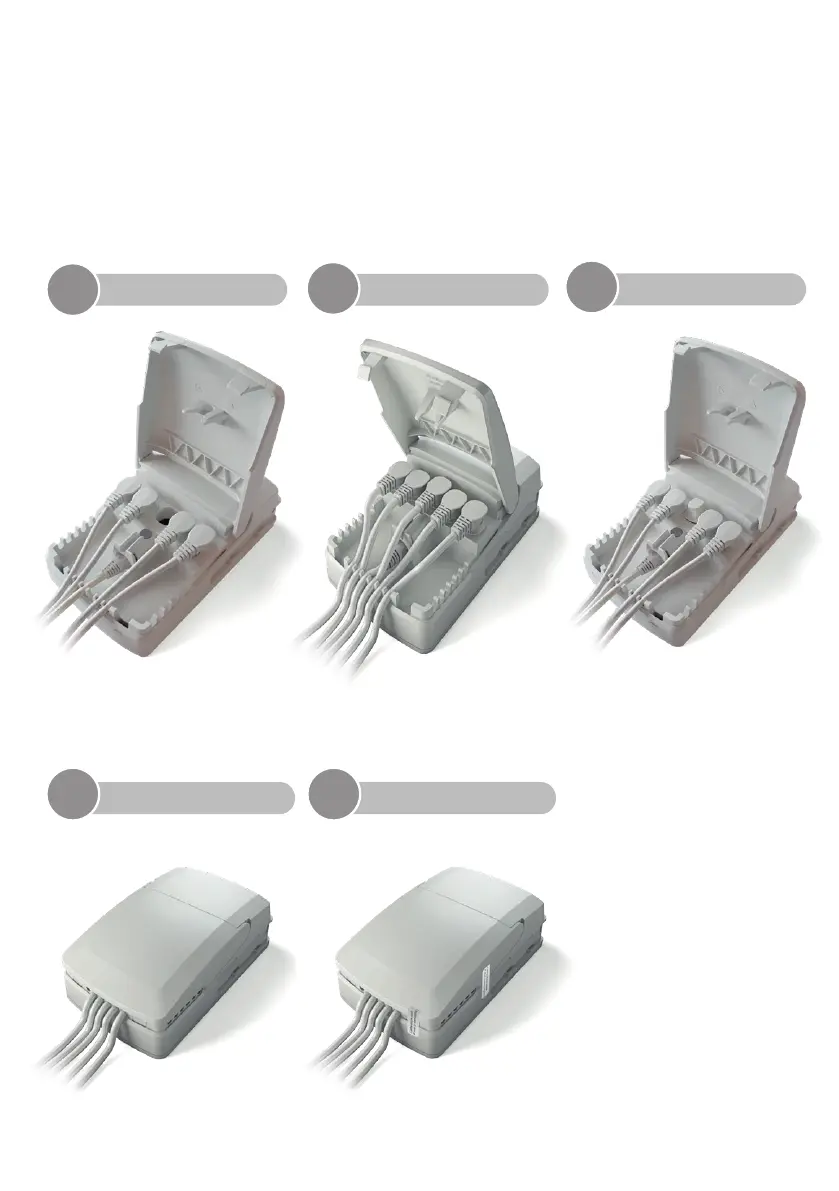

1. Mount load cell cable plugs in QLCI2
2. Calibrate the system
3. Mount blind plug in calibration port
4. Close lid until lock snaps into place
5. Place calibration void label
To allow free access to the cables, the lid has a rest position when completely opened.
It is possible to remove the lid by lifting it a few degrees and pulling it away from the housing under tight mounting conditions.
1
Mount load cell cables
3
Mount blind plug
4
Close lid until it snaps
2
Calibrate the system
Only 1 label is required. The label can be placed anywhere
along the opening of the lid on the QLCI2 box.
5
Place void label
