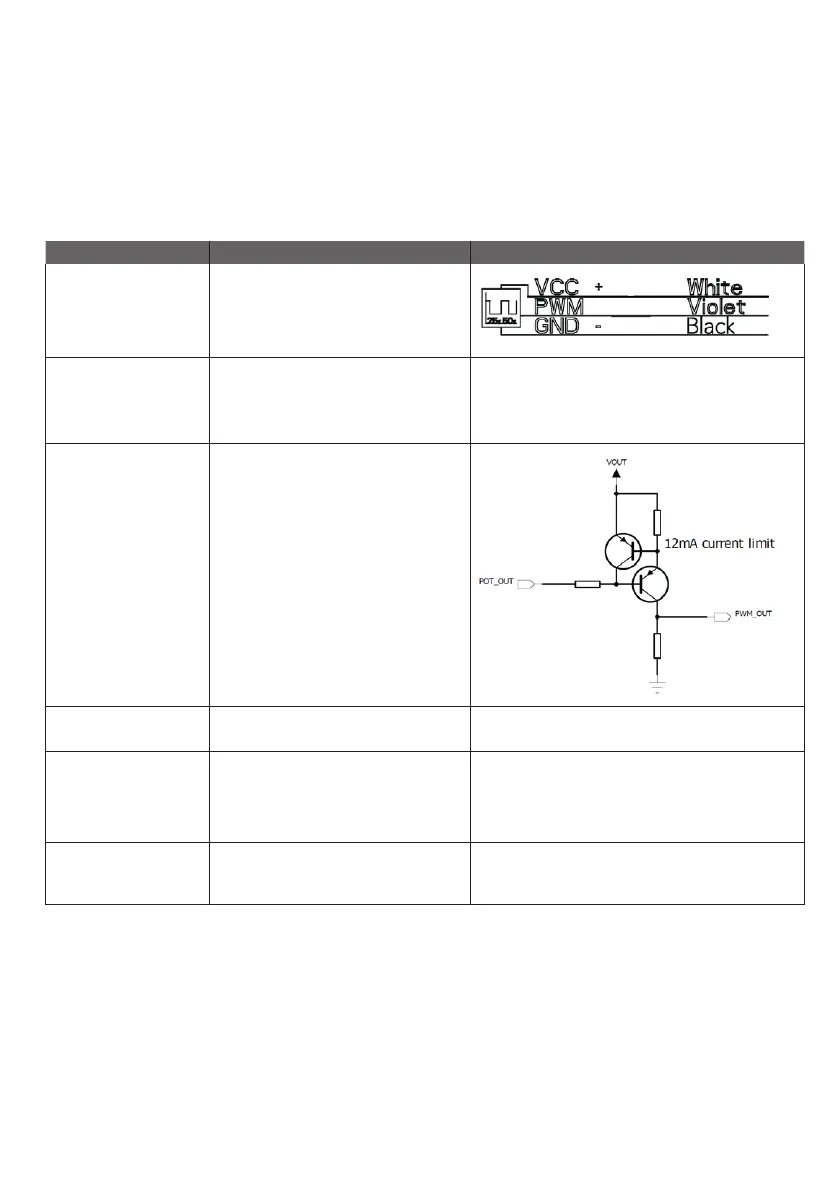

Input/ Output specifications: Hall PWM positioning feedback (3x and 4x in ordering example)
The Hall PWM positioning feedback is an option on LA23. This is especially suitable for wheelchairs or TECHLINE applications as the LINAK control
boxes are not capable of handling the signal.
The main advantages are:
• Hall potentiometer is close to being an absolute positioning system
• Hall potentiometer is a long lasting and wear-resistant positioning system
• PWM is more immune to noise than Hall Potentiometer feedback
• Enables compact products to have precise positioning (potentiometer increases the product potential).
Input/Output specifications: Hall PWM positioning feedback
Item Specification Comment
Description The actuator can be equipped with an electronic
circuit that gives a PWM position feedback.
Input Voltage 10 - 28VDC
Ripple down to 6V acceptable
Limit supply to 500mA or 500mA
fuse in case of wrong polarization
Feedback circuit has to be powered 1 second before motor
runs and until the actuator has stopped.
Cable dimension 0.5mm
2
AWG20
PWM Output Frequenzy: 75Hz ± 5Hz
Accuracy: ±2%
Resoluton: pitch divided 16
PNP source current: max. 12mA.
PWM_HIGH: 10V±1V
PWM_LOW: 0.5V±0.5V
tRISE < 30us
@ LOAD:5m cable 1nF//10KΩ
tFALL < 30us
@ LOAD:5m cable 1nF//10KΩ
Current Current consumption is max.
40mA @12V
Also when actuator is not running
Cable Connection
VCC: White
PWM: Violet
GND: BLACK
Max. length 5m.
Use cables:
Standard 8 wires:
0237001-xxxx
Combinations The absolute positioning can be combined with
potential free switches. But cannot be combined
with relative positioning.
