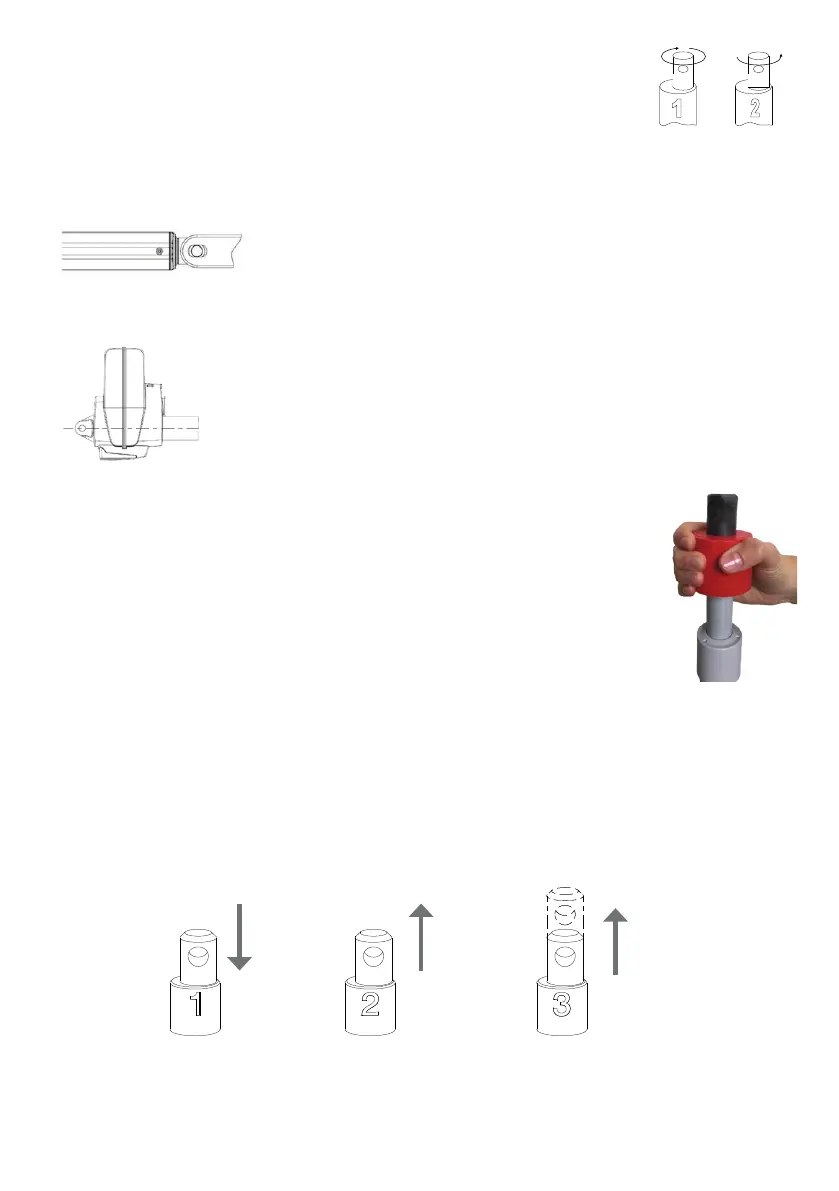

Instruction concerning the turning of the piston rod eye
When mounting and taking into use, it is not permitted to turn the piston rod eye several times. In cases where the
eye is not positioned correctly, the eye must be screwed to its bottom position (1) and then maximum half a turn
outwards again (2).
Mounting bracket instructions
To avoid damage to the actuator, it is important that the acutator drives to the application endstop position and continues to operate in the groove
until it activates the electric actuator endstop.
To avoid accumulated water inside the quick release lid (see illustration to the right) it is recommended not to mount the LA40 quick release actuator
with the lid in downward position.
Manual lowering:
The picture to the right illustrates the manual lowering procedure.
In case of a power failure, it is possible to mechanically lower a patient placed in a patient lift.
When turning the manual lowering handle clockwise, the actuator can be moved fully inwards.
Spline:
• Required minimum push load 200 N on the actuator to allow inward movement (otherwise the spline can be activated) (picture 1).
• Required activation pull force during inward operation: <100 N to activate the ratchet spline to avoid squeezing situations (picture 2).
• For QR versions:
Force required to manually activating spline (actuator not in operation): Static pull force = 300 - 550 N.
For manual pull out (extend) of the inner tube (picture 3).
Push:
200 N
(Ratchet spline for
HP and PL versions)
Pull:
< 100 N
(Ratchet spline for
HP and PL versions)
Pull:
300 - 550 N
(Ratchet spline for
QR versions)
