Page 83 of 192

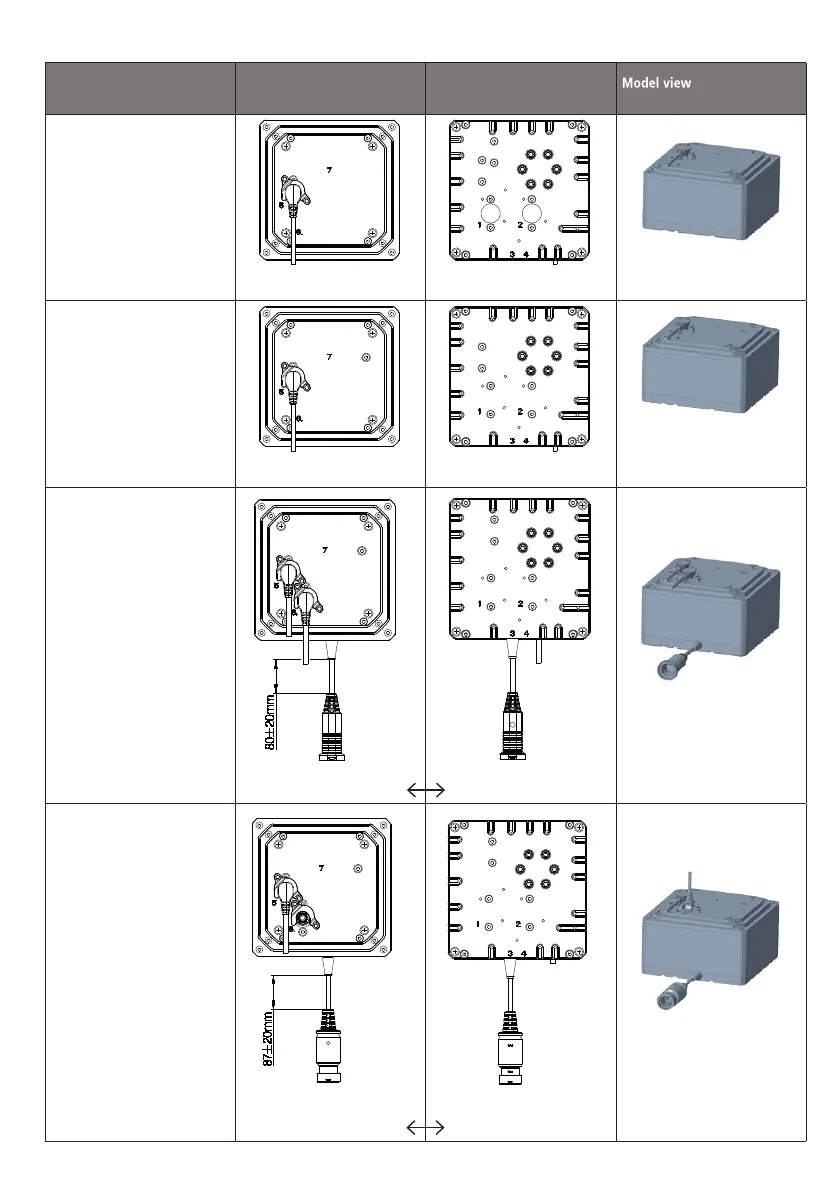

Cable connections overview
V
ariant
T
op plate
Drawing no.:1002W9005
Side entry
Drawing no.:1002W9005
T000
Connections
5:
Motor
T001
Connections
5:
Motor
T100
Connections
5:
Motor
6:
Minifit through
3:
Minifit through
T200
Connections
5:
Motor
6:
HB through
3:
HB through
Including protective grounding cable
82
84
