Page 11 of 44
Mounting guidelines for DPA/DPB
The DPA/DPB can be mounted on the desktop so that the keys are either facing upwards or outwards. Alternatively the DPA
can be mounted flat under the desktop with the keys facing downwards.
Operation of the DPA/DPB in connection with DESKLINE
®
systems (not CBD2N)
The Desk Panel is used to operate the DESKLINE system. The two arrow buttons are used for parallel drive.
Parallel drive ( )
The arrow buttons start parallel drive. The function is only activated when holding the button down.
The mounting screws on the DP, DPA, or DPB must be fastened with a max. torque of 1 Nm.
Mounting guidelines for DPH

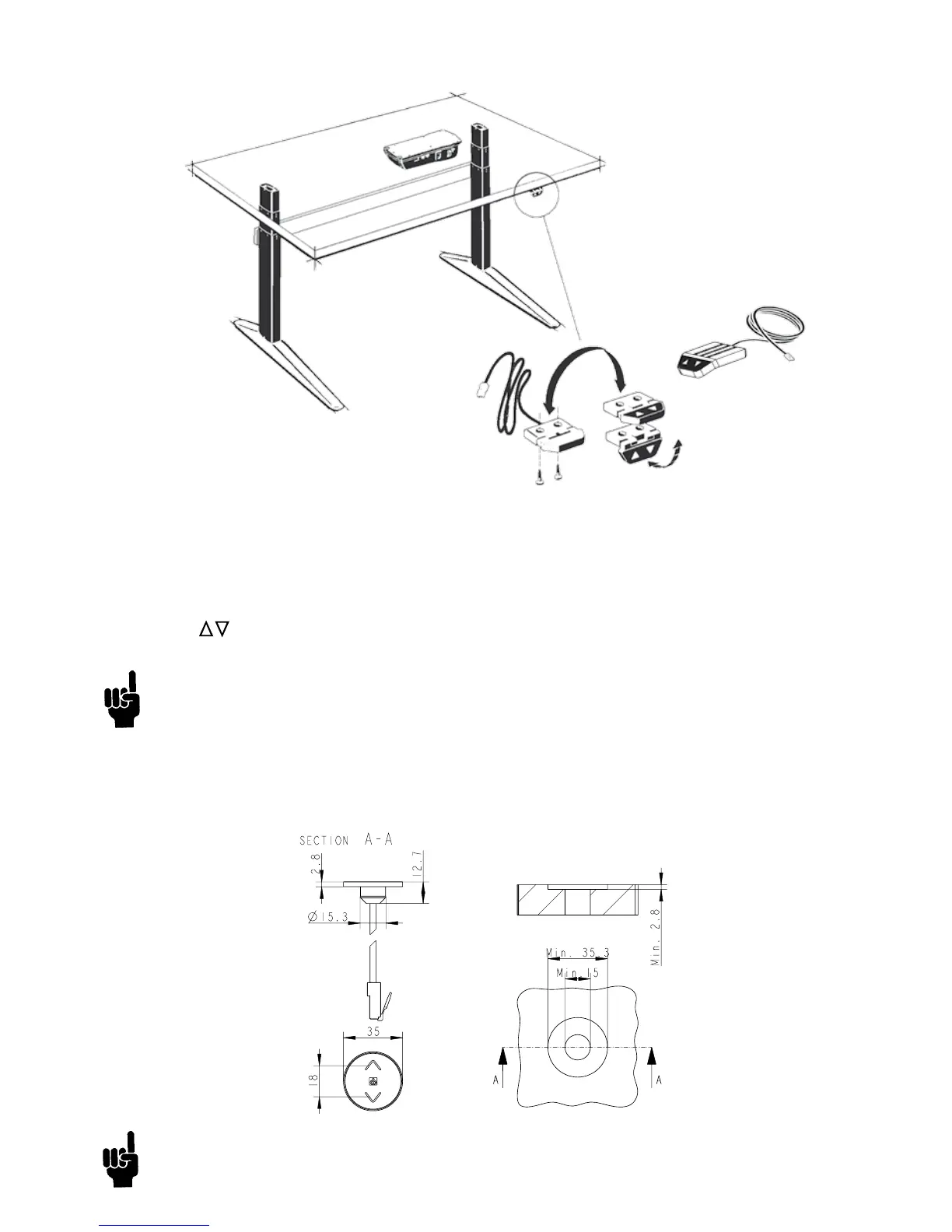

The hole in the tabletop must be in accordance with this drawing.
